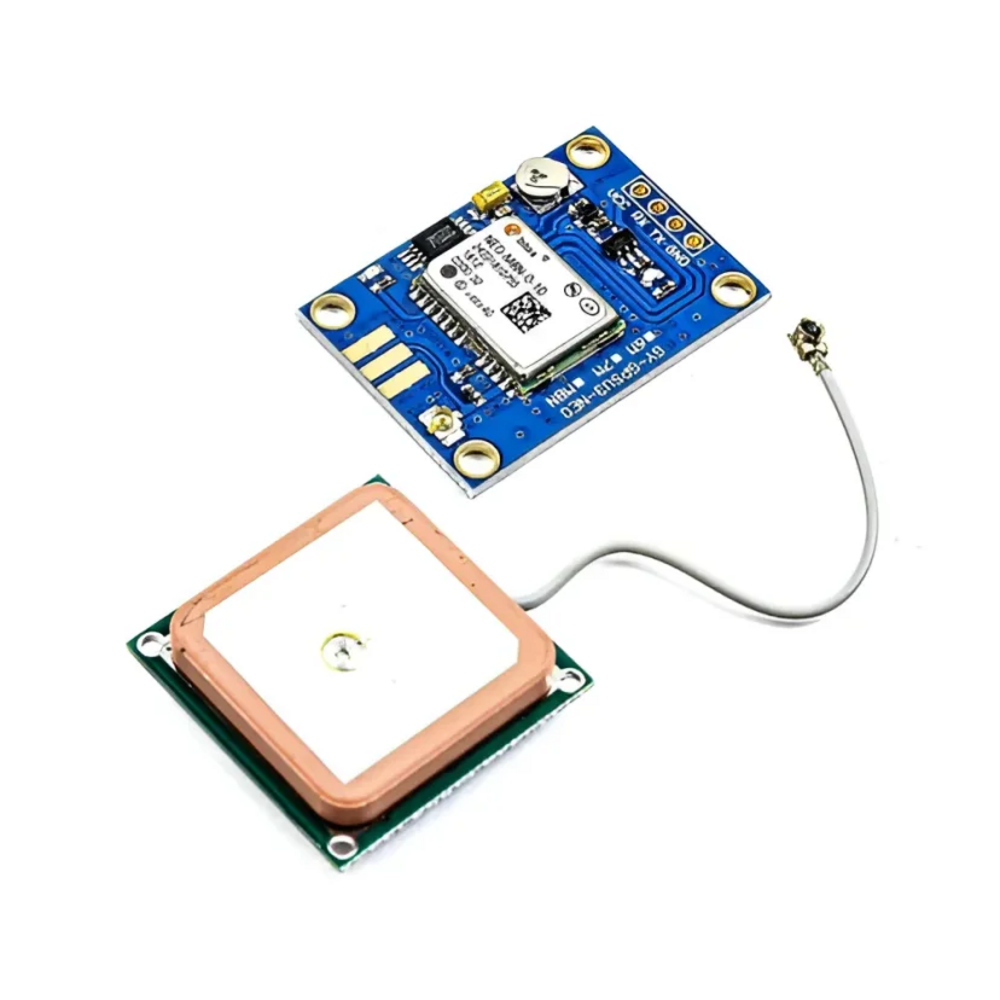

NEO-M8N GPS Module with Ceramic Active Antenna

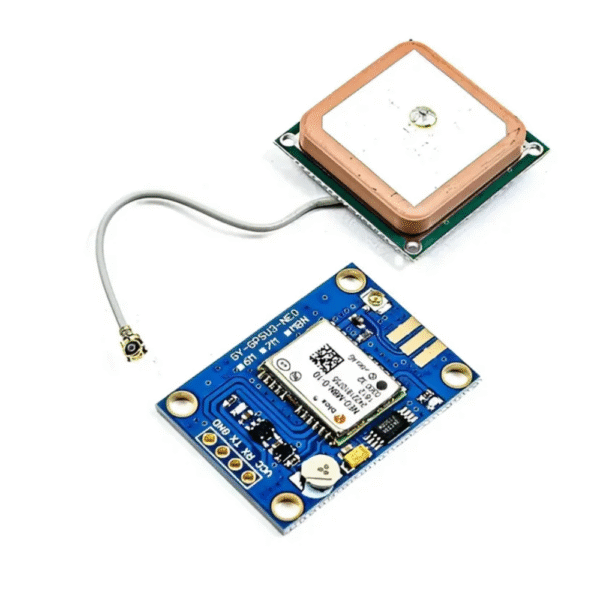

NEO-M8N GPS Module with Ceramic Active Antenna - Image 2
NEO-M8N GPS Module with Ceramic Active Antenna - Image 3
NEO-M8N GPS Module with Ceramic Active Antenna - Image 4

NEO-M8N GPS Module with Ceramic Active Antenna

Original price was: ₹799.00.Current price is: ₹695.00.

In Stock
Category:

Description

The APM2.5 NEO-M8N GPS Module GYGPSV1-8M is optimized for cost-sensitive applications, while NEO-M8N/M8Q provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The futureproof NEO-M8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.

The NEO-M8 series of concurrent GNSS modules are built on the high performing M8 GNSS engine in the industry proven NEO form factor.NEO-M8N provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The future-proof NEOM8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.

Features:

  1. The ceramic antenna provides a very strong signal
  2. With LED indicator lamp
  3. The default baud rate: 9600.
  4. Flash memory: 64KB
  5. With data backup battery.
  6. LED signal indicator.
  7. Compatible with various flight controller module.
  8. EEPROM save the configuration parameter data when power-down.
  9. Assistance AssistNow GNSS Online
  10. AssistNow GNSS Offline (up to 35 days)
  11. AssistNow Autonomous (up to 6 days)
  12. OMA SUPL & 3GPP compliant
  13. Oscillator TCXO
  14. Built-in RTC crystal
  15. Anti-jamming Active CW detection and removal.
  16. Extra onboard SAW bandpass filter
  17. Memory Flash
  18. Supported antennas Active and passive
  19. Odometer Travelled distance
  20. Data-logger For position, velocity, and time

Specification:

Receiver Type 72-channel Ublox M8 engine.
Input Supply Voltage (VDC) 3 ~ 5
Main Chip Ublox NEO-M8N
Sensitivity (dBm) 156, Cold Start (without aiding): -147 dBm
Position Accuracy (Meter) 2, 2.5
Acceleration (g) <4
Navigation Update Rate up to 18 HZ.
Operating Temperature (°C): -45 to 105
Tracking Sensitivity (dBm) -161 dBm
Co-Ordinate System WGS-84
Flash memory 64KB
Capture Time 0.1s Average
Avg Cold Start Time (s) 30
Warm Start Time (s) 1
Boot Time 1S
Maximum Altitude (m) 18000
Dimensions in mm (LxWxH) Antenna: 26 x 26 x 9, Module: 26 x 36 x 4

Package Includes :

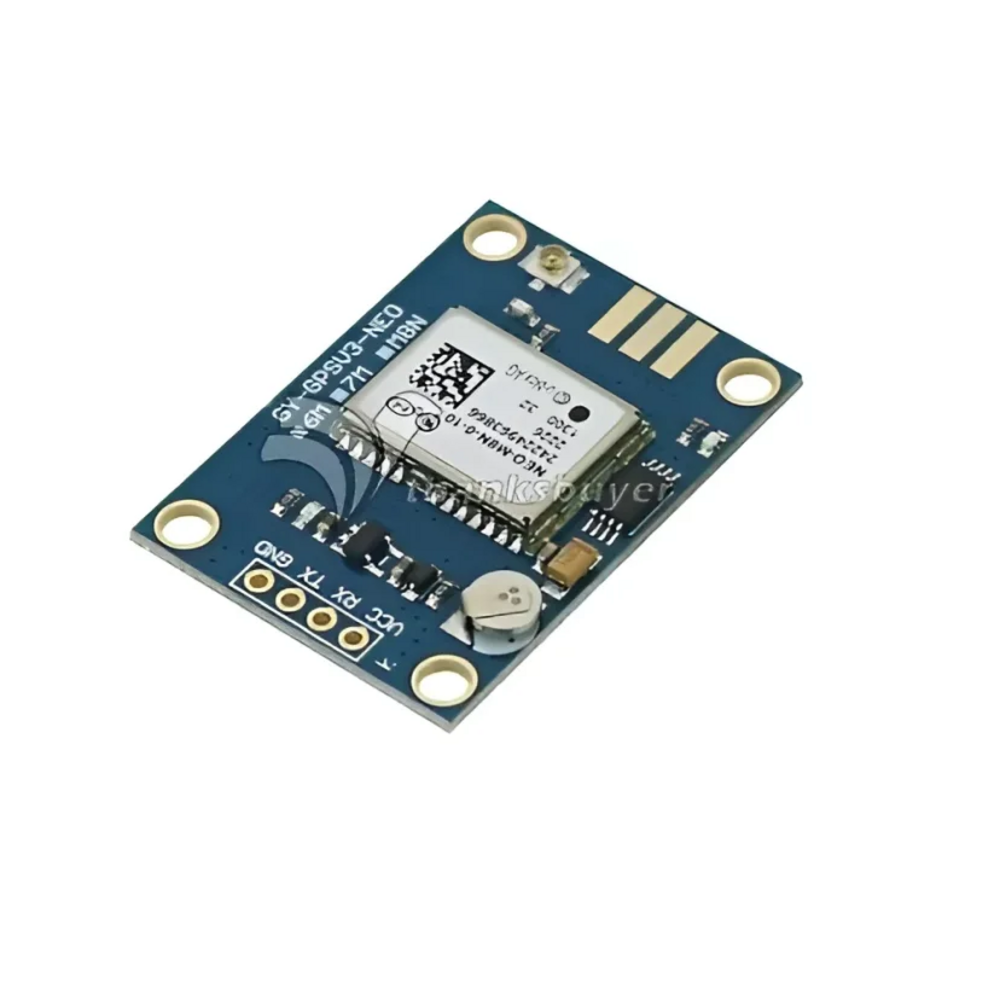

1 x APM 2.5 NEO M8N GPS Module.

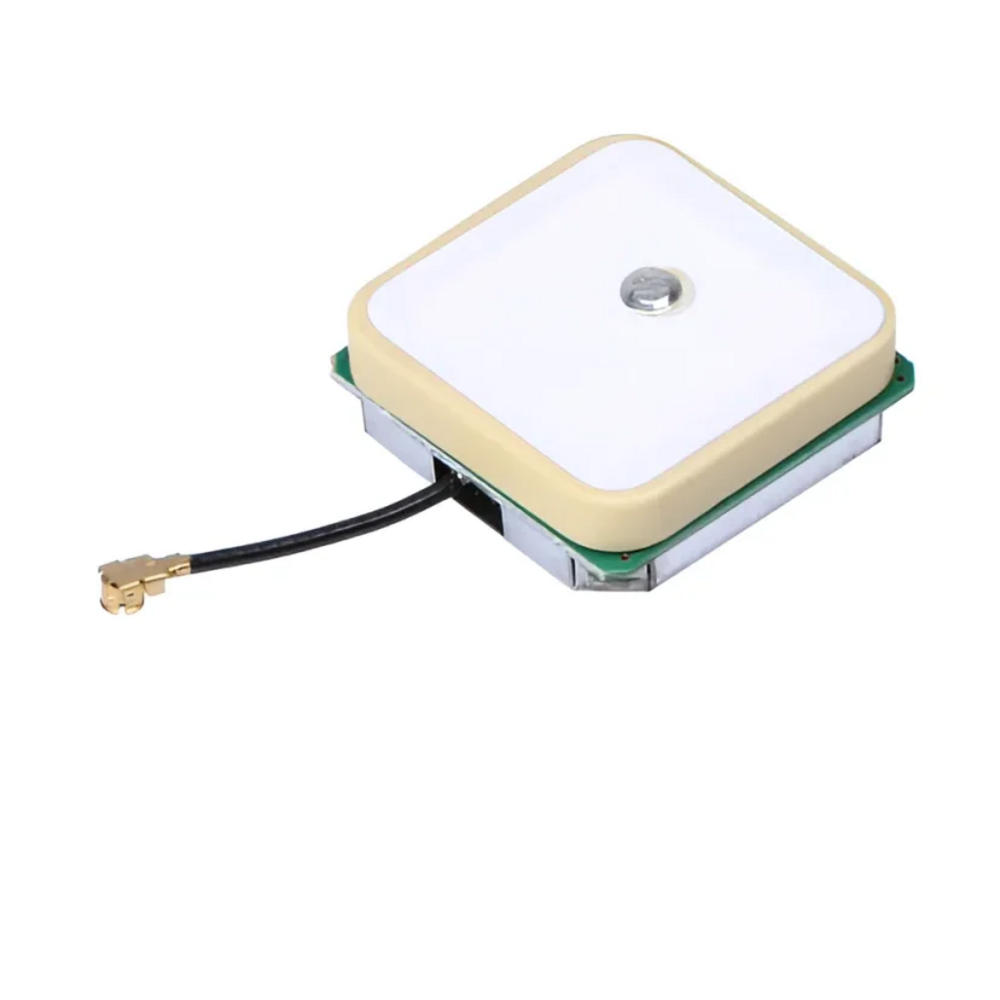

1 x Ceramic Active Antenna.
