Category:

Original price was: ₹799.00.Current price is: ₹675.00.

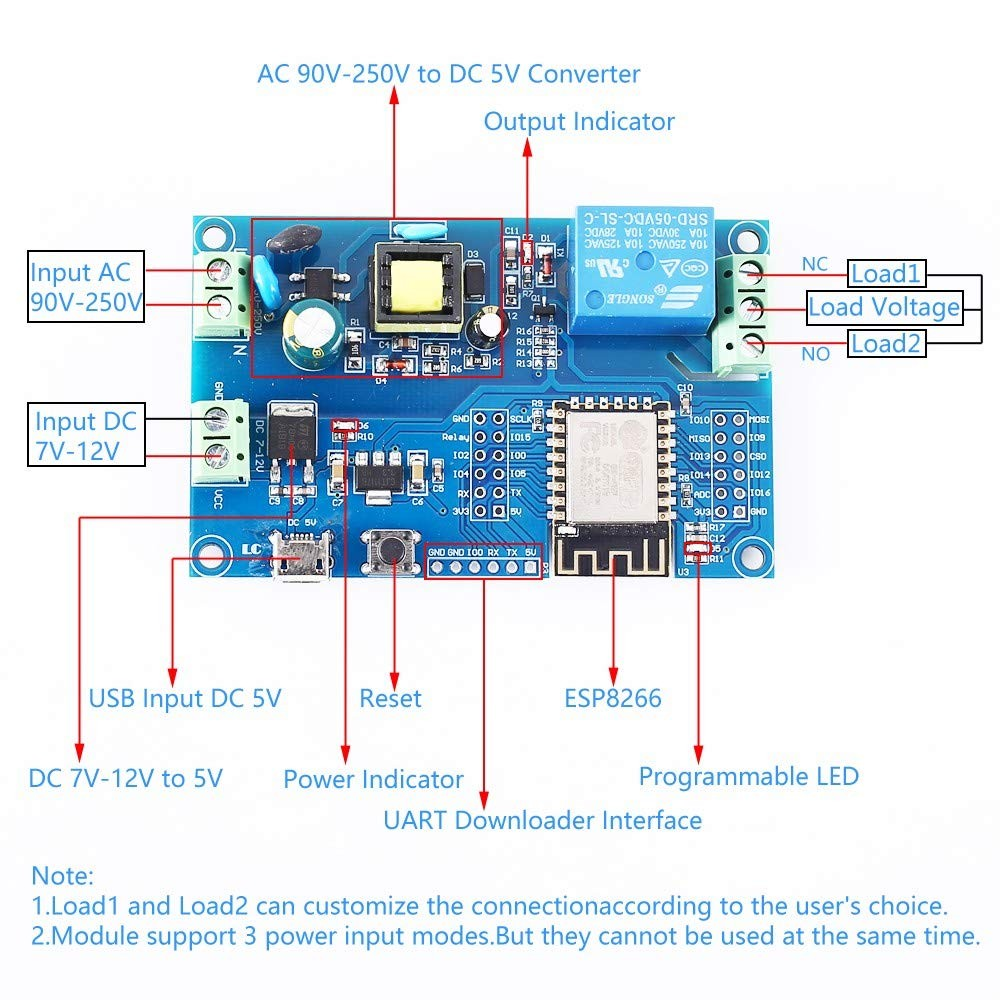

  1. Onboard Mature and stable ESP-12F WiFi module, high capacity 4M Byte Flash
  2. The I/O port of the WiFi module and the UART program download port are all extracted, convenient secondary development
  3. Onboard AC-DC switch power module, supply power way support AC90-250V/DC7-12V/USB5V
  4. Onboard  Wifi module RST reset button

Description

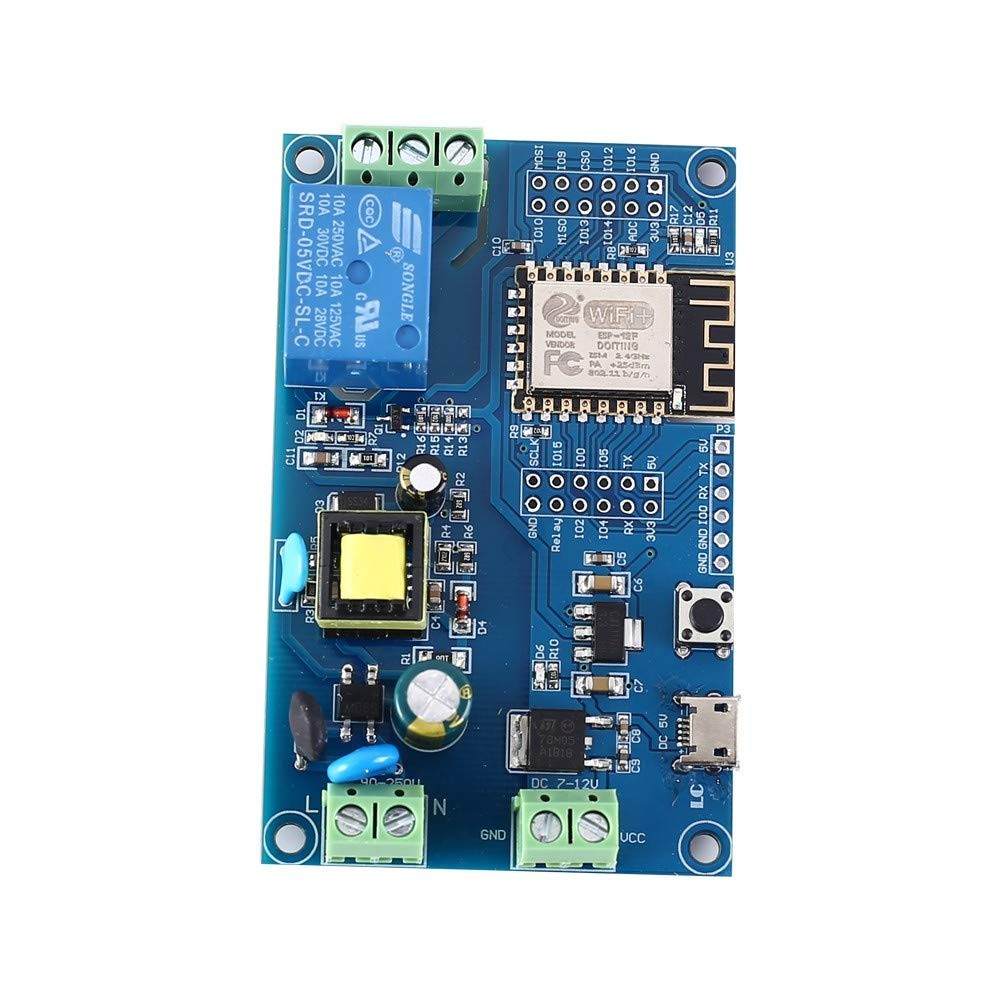

AC/DC power ESP8266 WIFI single relay ESP-12F Dev board comes with onboard ESP-12F WiFi module, I/O orifice full lead, support AC90-250V/DC7-12V/USB 5V etc. many supply power ways. Provide Arduino develop environment reference code, suit for ESP8266 secondary development study, smart home wireless control.

Specifications and Features:

  1. Onboard Mature and stable ESP-12F WiFi module, high capacity 4M Byte Flash
  2. The I/O port of the WiFi module and the UART program download port are all extracted, convenient secondary development
  3. Onboard AC-DC switch power module, supply power way support AC90-250V/DC7-12V/USB5V
  4. Onboard  Wifi module RST reset button
  5. ESP-12F support use Eclipse/Arduino IDE etc.
  6. Onboard 1 channel 5V relay, output switch signal,
  7. Suitable for controlling and controlling the working voltage to be within the load of AC 250V/DC30V.
  8. Onboard power indicator,1 programmable LED and relay indicator.

Package Includes:

1 x AC/DC power ESP8266 WIFI single relay ESP-12F Dev board
