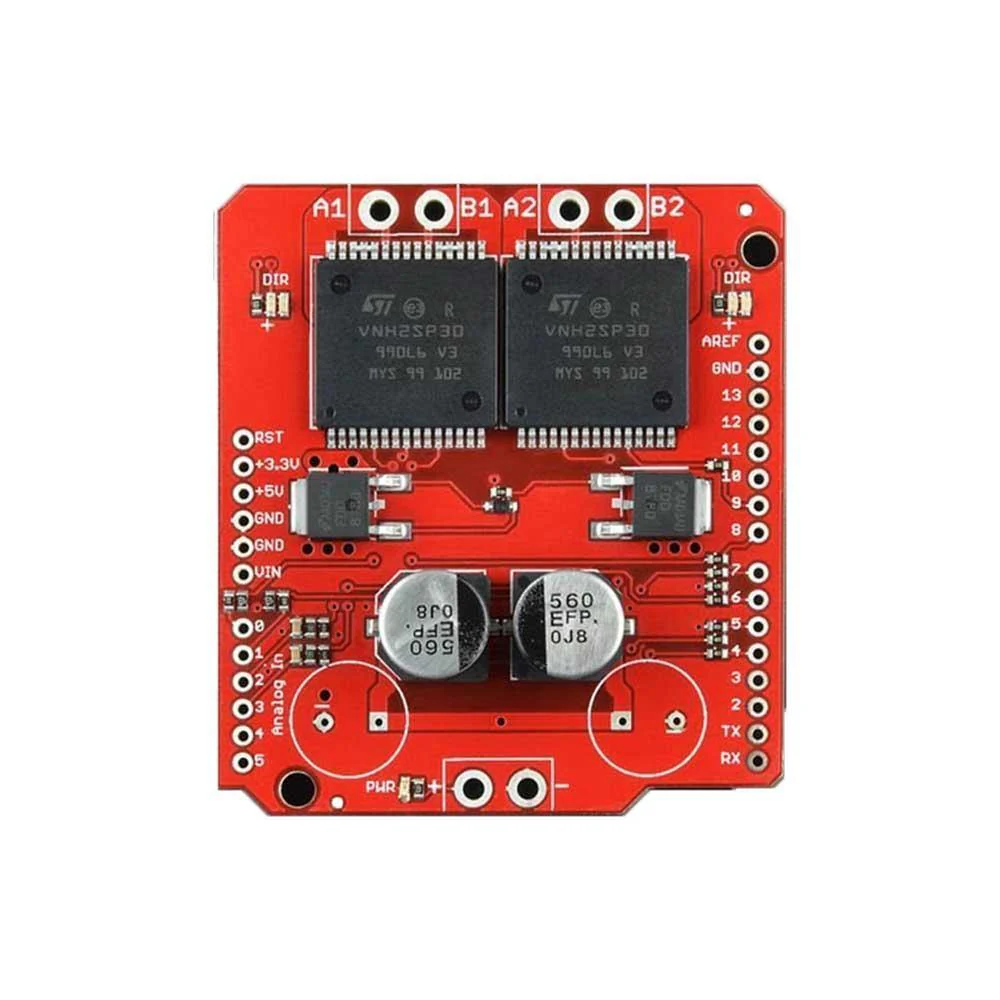

Dual Monster Moto Shield VNH3ASP30 DC Motor Driver 2x14A (Peak 30A)
Dual Monster Moto Shield VNH3ASP30 DC Motor Driver 2x14A (Peak 30A) - Image 2

Dual Monster Moto Shield VNH3ASP30 DC Motor Driver 2x14A (Peak 30A)

Category:

Original price was: ₹3,999.00.Current price is: ₹3,114.00.

  1. Voltage Max: 16V
  2. Maximum current rating: 30 A
  3. Practical Continuous Current: 14 A
  4. Current sensing available to Arduino analog pin
  5. MOSFET on-resistance: 19 mΩ (per leg)
  6. Maximum PWM frequency: 20 kHz
  7. Thermal Shutdown
  8. Undervoltage and Overvoltage shutdown.

Description

The Dual Monster Moto Shield VNH3ASP30 DC Motor Driver 2x14A (Peak 30A) is essentially a ramped up version of our Ardumoto motor driver shield. For this Monster Moto Shield, It is replaced the L298 H-bridge with a pair of VNH3ASP30 full-bridge motor drivers.

It is also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.

The L298 H-bridge is no longer available in the Motor Driver Shield Monster Moto since it has been replaced for a pair of VNH2SP30 full-bridge motor drivers. The Motor Driver Shield Monster Moto has been enhanced to drive a pair of high-current motors while the VIN and motor have been adjusted for connecting larger wires more easily.
