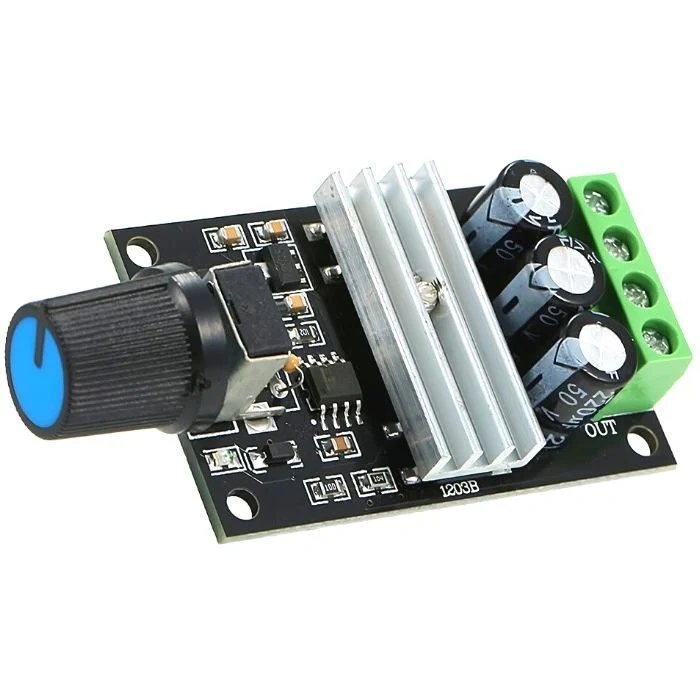

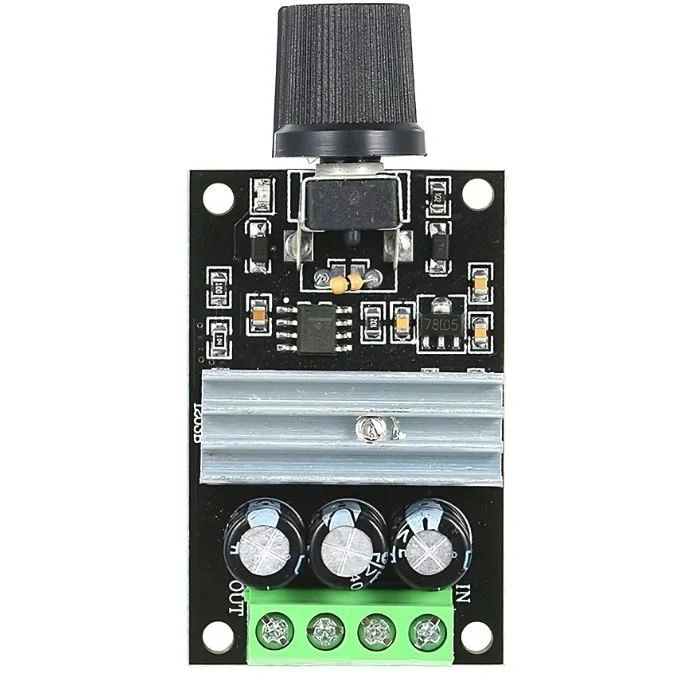

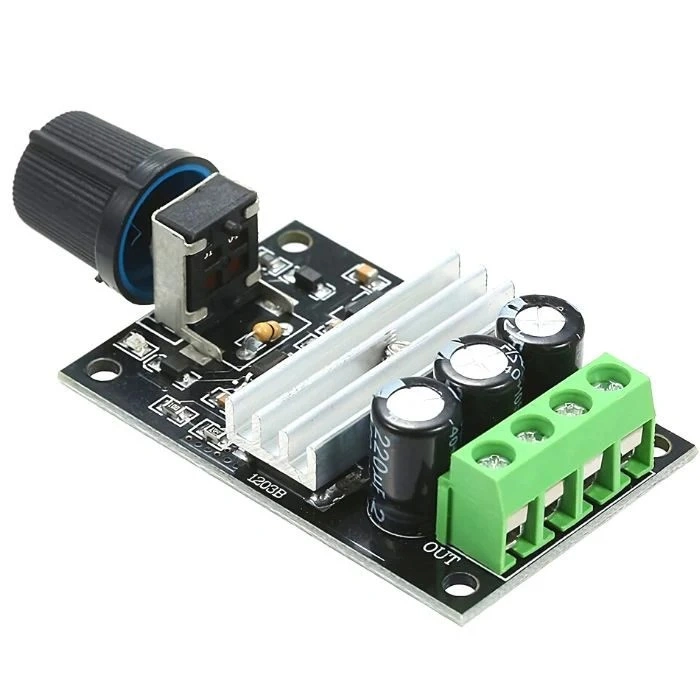

1203B PWM 6V 12V 24V 28V 3A DC Motor Speed Regulator
1203B PWM 6V 12V 24V 28V 3A DC Motor Speed Regulator - Image 2
1203B PWM 6V 12V 24V 28V 3A DC Motor Speed Regulator - Image 3
1203B PWM 6V 12V 24V 28V 3A DC Motor Speed Regulator - Image 4

1203B PWM 6V 12V 24V 28V 3A DC Motor Speed Regulator

Category:

Original price was: ₹99.00.Current price is: ₹85.00.

  1. Voltage range: DC6V – 28V
  2. Current range: Within 3A
  3. Switch function: None
  4. Speed range: 0-100%
  5. Dimension: 65 x 30 x 15mm

Description

This 1203B PWM 6V 12V 24V 28V 3A DC Motor Speed Regulator allows controlling the speed of a motor with fully adjustable 0%-100%. The motor speed controller can easily provide a continuous current of 3A to your DC motor or other DC load.

Application:
  • This PWM Speed controller is for DC 6V 12V 24V 28V Motor.
Pinouts:
  • Motor+: Motor Positive Terminal
  • Motor-: Motor Negative terminal
  • Power+: DC 6V – 28V
  • Power-: Gnd

Features:

  • Speed of a motor is fully adjustable
  • DC 6V 12V 24V 28V Supported

Package Includes:

1 x 1203B PWM 6V 12V 24V 28V 3A DC Motor Speed Regulator
