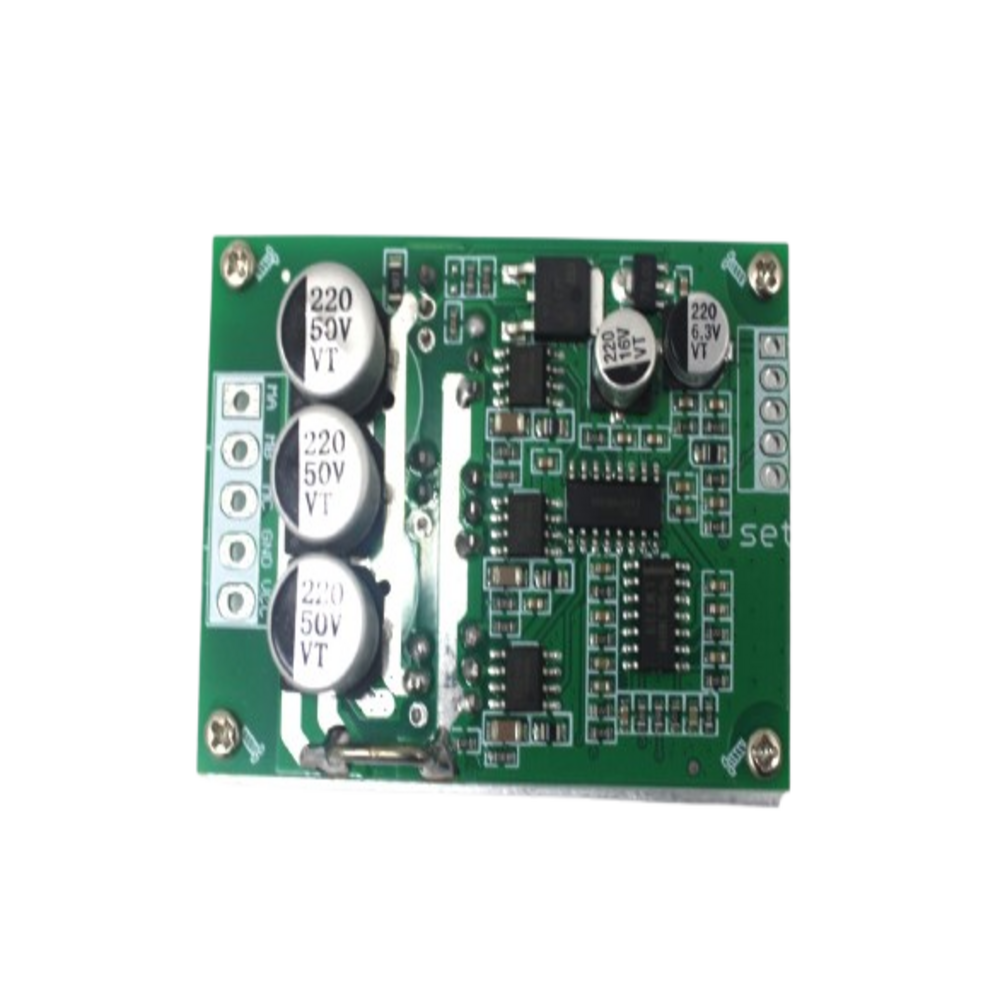

DC15V-36V-15A 500W Brushless Motor Controller Hall Motor Balanced Car Driver Board with Hall Drive

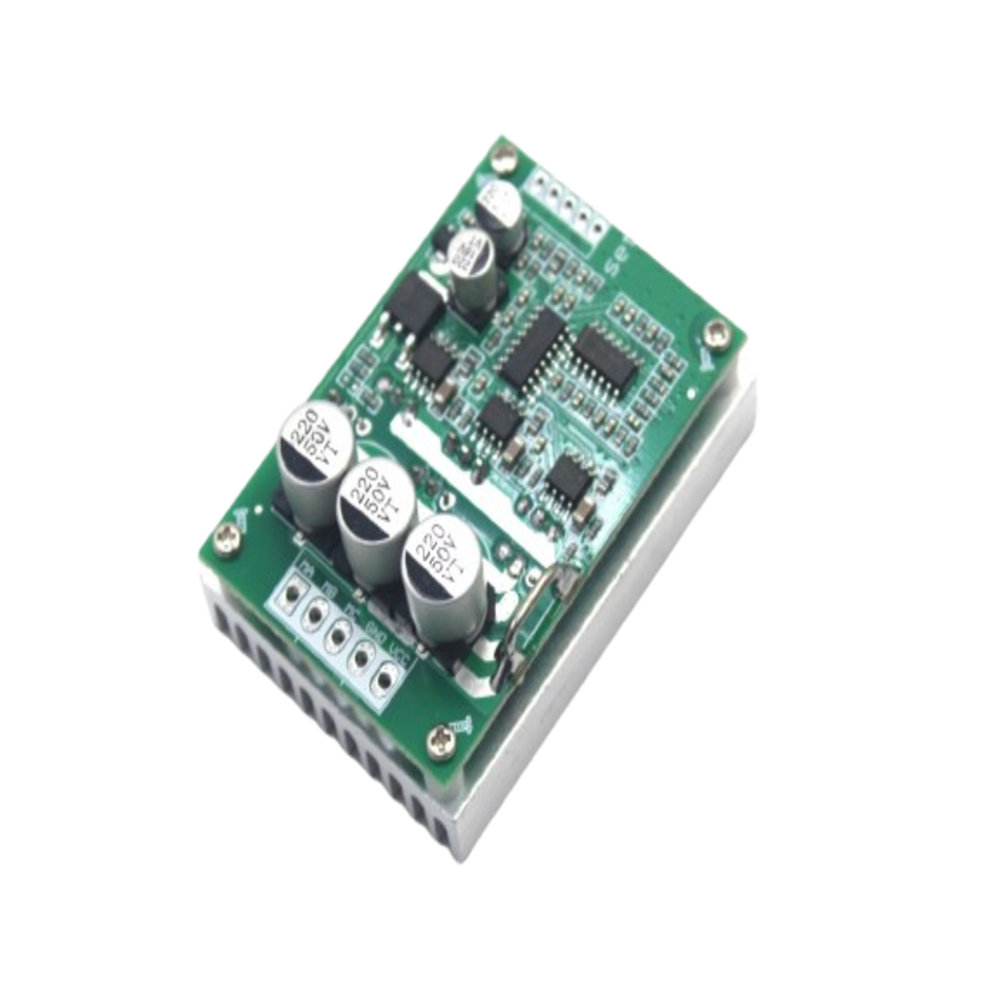

DC15V-36V-15A 500W Brushless Motor Controller Hall Motor Balanced Car Driver Board with Hall Drive - Image 2

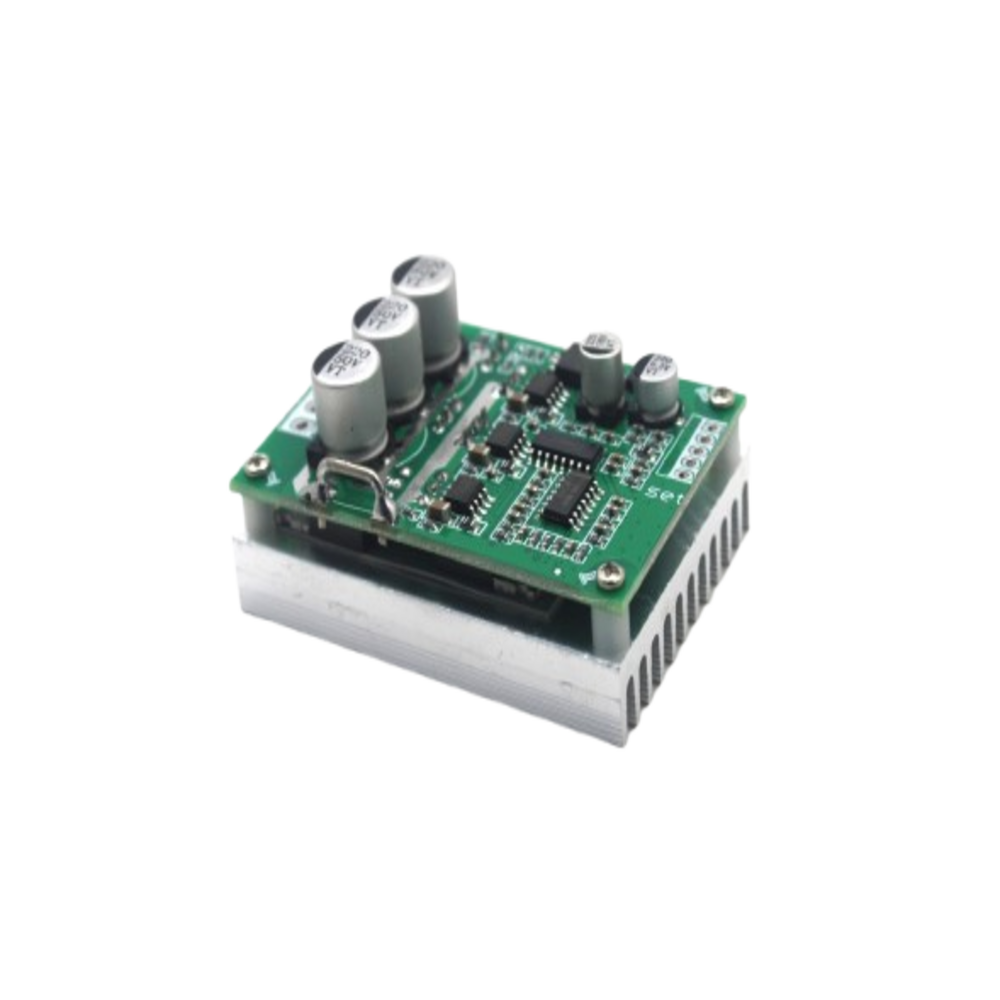

DC15V-36V-15A 500W Brushless Motor Controller Hall Motor Balanced Car Driver Board with Hall Drive - Image 3
DC15V-36V-15A 500W Brushless Motor Controller Hall Motor Balanced Car Driver Board with Hall Drive - Image 4

DC15V-36V-15A 500W Brushless Motor Controller Hall Motor Balanced Car Driver Board with Hall Drive

Category:

Original price was: ₹1,299.00.Current price is: ₹1,205.00.

  1. Voltage range: 15V-36V
  2. Peak current: 20A
  3. PWM speed control: PWM frequency 1-20KHZ
  4. Duty cycle: 0-100%
  5. Drive power: ≤ 500W

Description

This Brushless Motor Controller DC 15-36V 500W PWM Driver Board is used for the 3-phase brushless sensorless motor but is not suited for all 3-phase brushless sensorless motors directly. If the driving effect is not good (such as starting jitter, reversing, the motor no-load working current is too large, the speed is not stable, the efficiency is low, and can start up with a load.) Customers can adjust the resistance and capacitance of the driver board according to the actual situation to achieve the best driving effect.
