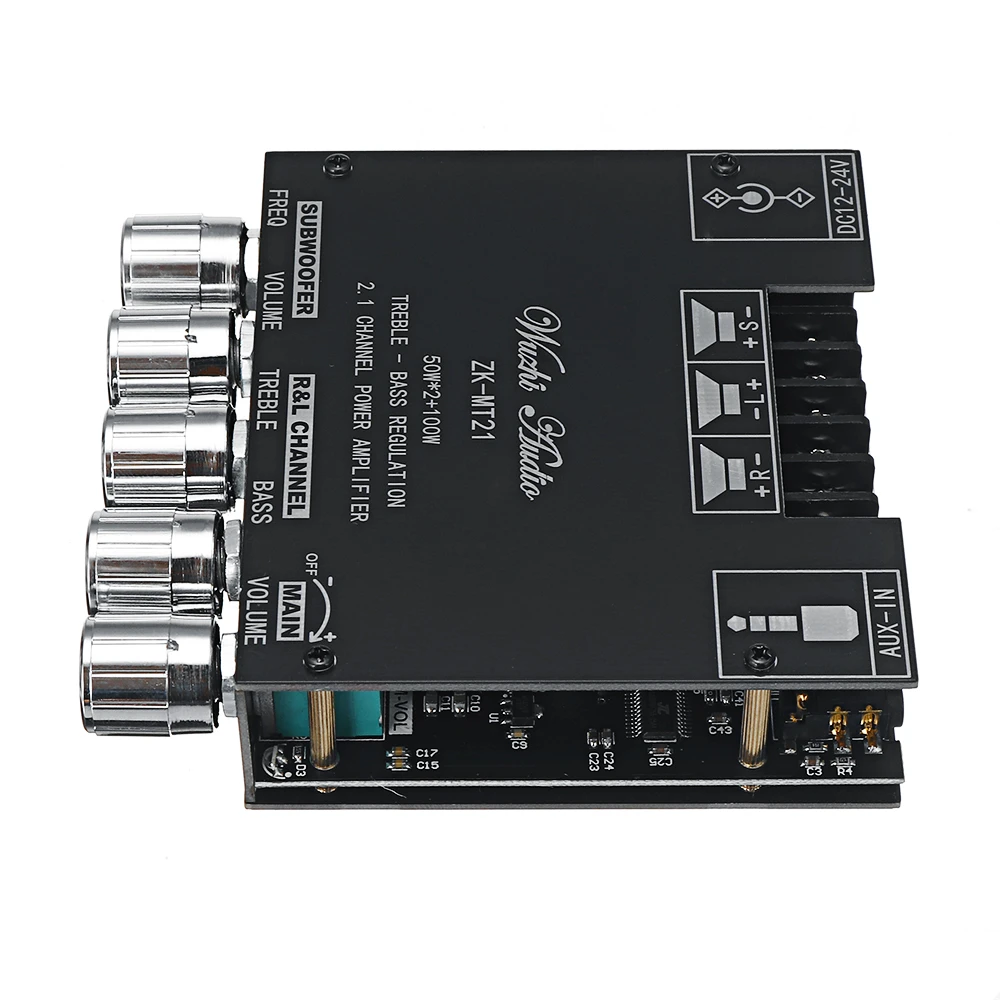

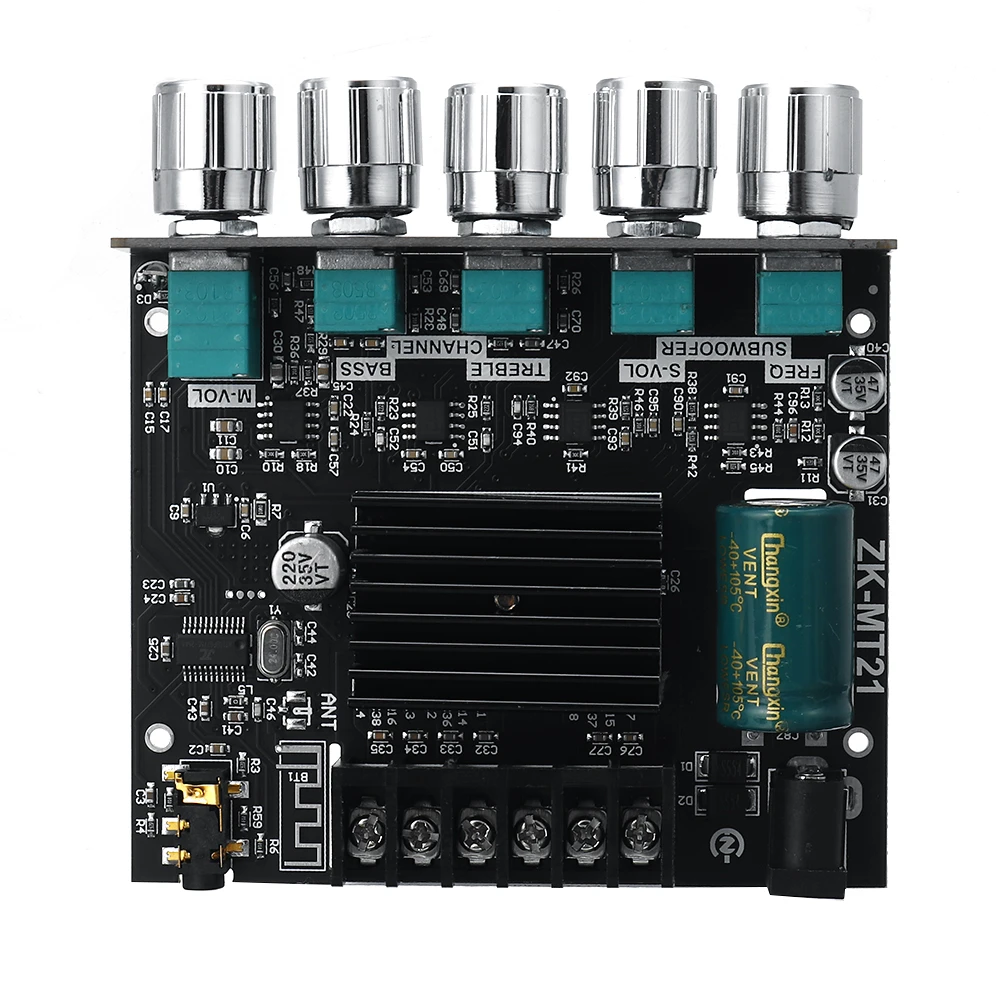

Wuzhi Audio ZK-MT21 Bluetooth 5.0 Subwoofer Amplifier Board 50WX2+100W 2.1 Channel Power Audio Stereo Amplifier Tone Board Bass AMP AUX

Tip: Only when the audio input is sufficient and the power supply voltage/current is sufficient, there will be sufficient output power. The higher the power supply voltage, the greater the output power, and the smaller the speaker impedance, the greater the output power. Please make sure that the power of the adapter power supply is greater than the actual working power of the amplifier.

Feature:

Product Name: 2.1 channel audio amplifier module
Product Model: ZK-MT21
Bluetooth Version: 5.0 (no shielding, 15 meters)
Input Sensitivity: 500mV
Audio Input: AUX + Bluetooth
Channel: 2.1
Chip Solution: Domestic power amplifier chip
Power Range: DC 12-20 V / 5A above (Do not connect to 24V battery pack)
Adapter Speaker: 20-100 W, 4-8 Ω
Output Power: Left and right channels <50W, Subwoofer <100W
Protection Mechanism: Anti reverse connection. Overheat. Overcurrent. Short circuit
Product Dimensions: 93mm*90mm*22mm
Package Weight : about 185g (packaging)
