Waveshare RS485 CAN HAT for Raspberry Pi

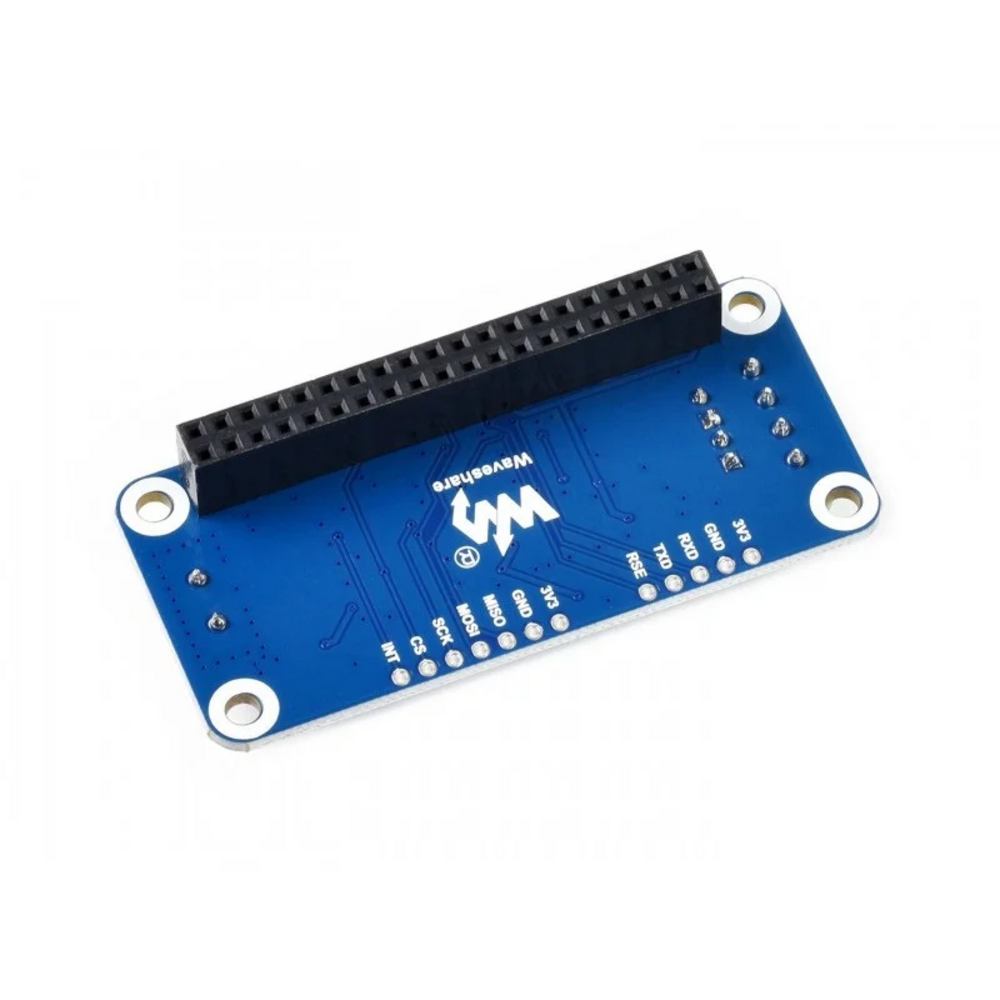

Waveshare RS485 CAN HAT for Raspberry Pi - Image 2

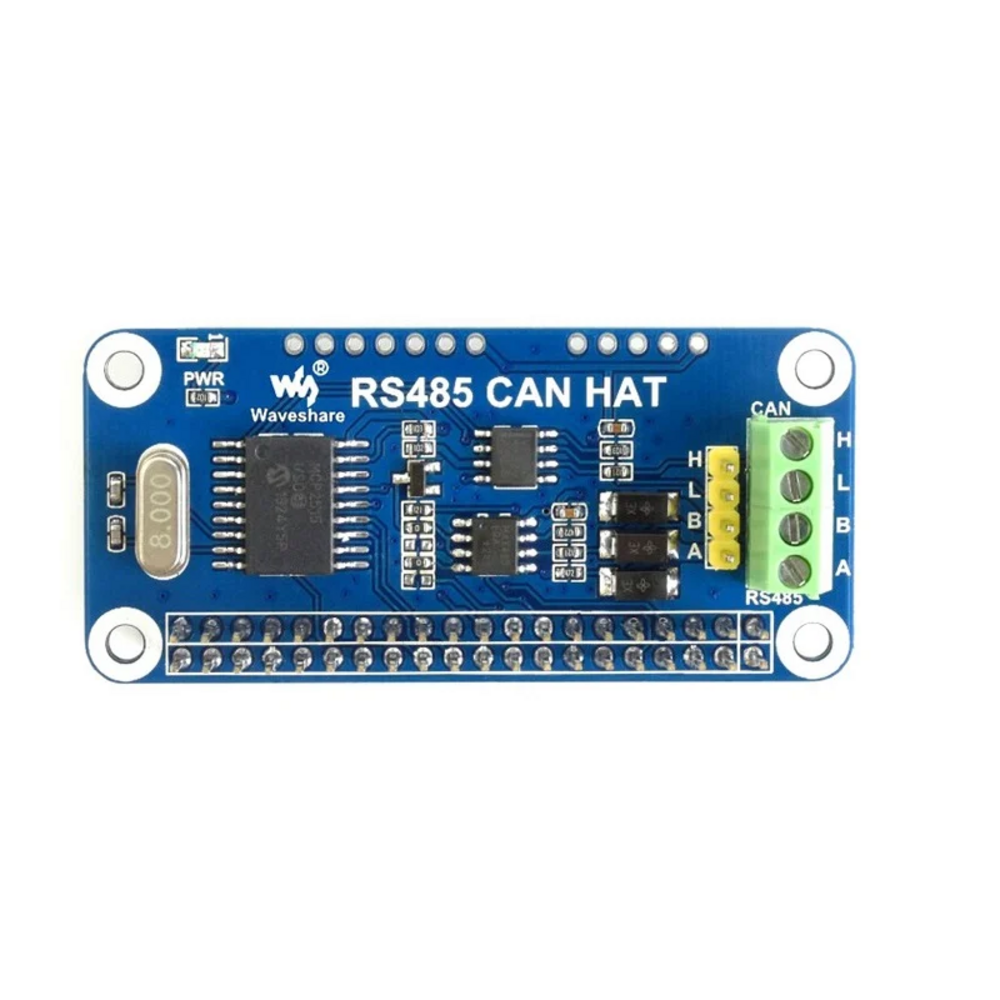

Waveshare RS485 CAN HAT for Raspberry Pi - Image 3

Waveshare RS485 CAN HAT for Raspberry Pi

Categories: ,

Original price was: ₹999.00.Current price is: ₹837.00.

  1. Operating voltage: 3.3V
  2. CAN controller: MCP2515
  3. CAN transceiver: SN65HVD230
  4. 485 transceiver: SP3485
  5. Mounting hole size: 3.0mm
Out of stock

Description

The Waveshare RS485 CAN HAT for Raspberry Pi will enable your Pi to communicate with other devices stably in long-distance via RS485/CAN functions.

RS485 is one of the most robust wired serial communication protocol that can support distance up to 1200 meters (4000 ft) while CAN (Controller Area Network) is used in automotive that offer high immunity to noise in cars.

Waveshare RS485 CAN HAT for Raspberry Pi

Yes, this board support both RS485 and CAN, bidirectional communication. You can use both the standards/protocols at the same time because each of them uses different peripherals for communication. CAN controller uses SPI while RS485 uses UART from Raspberry Pi.
