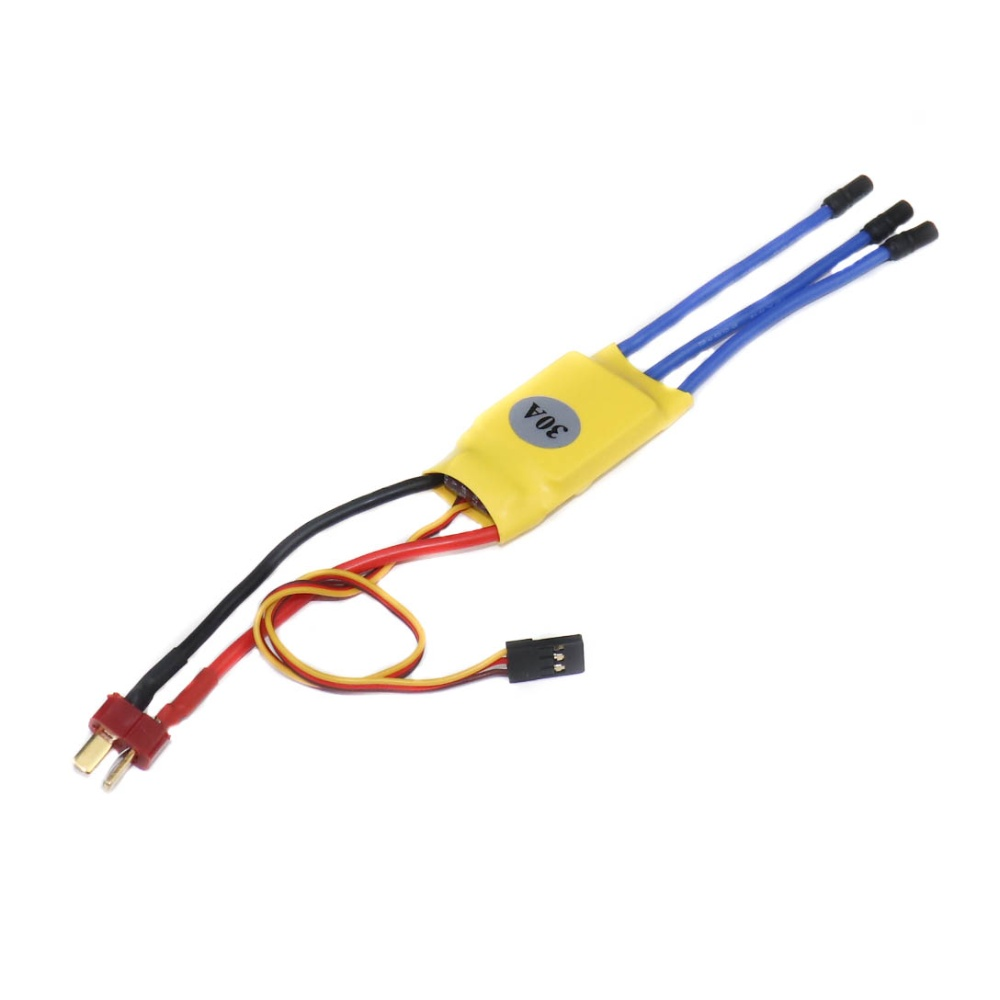

Standard 30A BLDC ESC Electronic Speed Controller with Connector

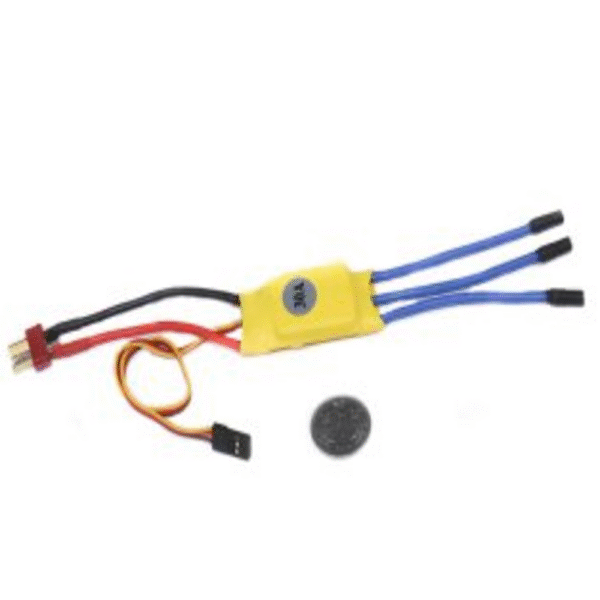

Standard 30A BLDC ESC Electronic Speed Controller with Connector - Image 2

Standard 30A BLDC ESC Electronic Speed Controller with Connector

Category:

Original price was: ₹549.00.Current price is: ₹380.00.

  • Constant Current: 30A (Max 40A<10s).
  • BEC: 5V 3A.
  • Input Voltage: 11.1 ~ 11.7 V.
  • Li-Po battery: 2S ~ 3S.
  • Ni-MH 4-10 CELLS Auto Detect.

Description

Standard BLDC 20amp & 30amp ESC Electronic Speed Controller with Connector is specifically made for quadcopters and multi-rotors. It provides faster and better motor speed control giving better flight performance compared to other available ESCs.

STANDARD 20amp & 30amp ESC Electronic Speed Controller can drive motors that consume up to 20A, 30A current. It works on 2-3S LiPo batteries. The onboard BEC provides regulated 5V(2A max draw) to power the flight controller and other onboard modules. This is useful to control our brushless motors with a 2-3S LiPo (make sure the motor doesn’t draw more than 20A & 30A).

ESC CONNECTORS:
  • Battery Side – Male Deans ( T ) Connector.
  • Motor Side – Female 3.5mm Gold Connector.

Features:

  1. This 30 amp ESC for BLDC has onboard BEC
  2. This ESC comes with a male dean T-connector
  3. Auto Low BATTERY Slow down at 3.0V/cell Lipo, cut-off at 2.9V/cell lipo
  4. APPLICATION: Multirotors, Rc Airplanes, etc

Package Includes:

1 x Standard 30A BLDC ESC Electronic Speed Controller with Connectors
