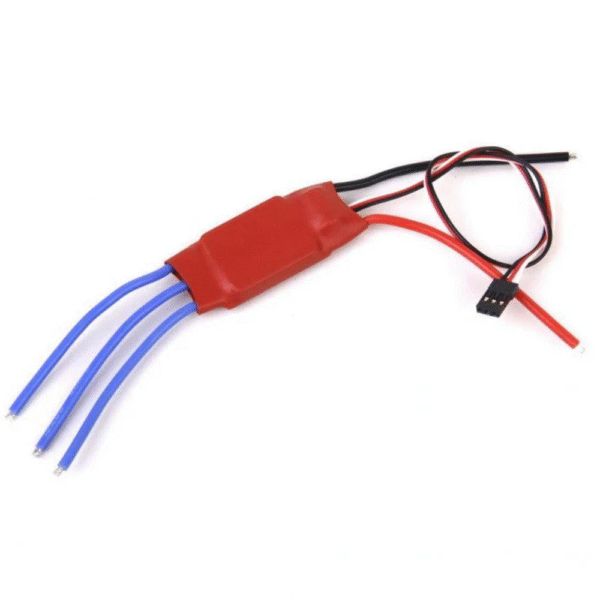

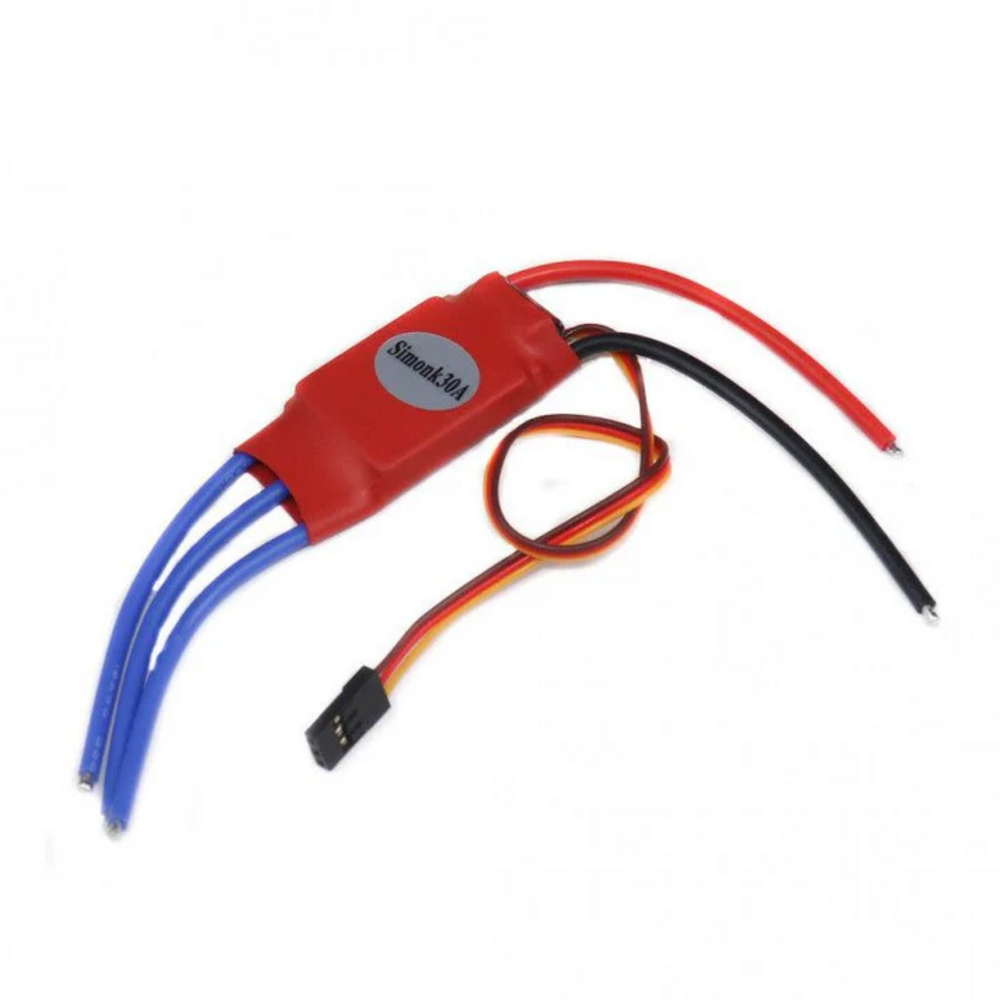

Simonk Red ESC 30A without Connector for Quadcopter

Description

The Simonk 30A ESC is an Electronic Speed Controller (ESC) that is used to drive brushless DC motors and is capable of supplying current up to 30A. The 30A Simonk controller is made for quadcopters and multicopters to provide faster and better motor speed control.

This 30A ESC features a battery eliminator circuit (BEC) that provides 5V and 2A to the receiver or flight controller, so an extra battery to power those are not needed. These electronic speed controllers are best used with A2212 BLDC motors of 1000kv, 1400kv, and 2200kv.

Connections:

Warning: In case the BLDC ESC is connected directly to the remote control receiver, never ever switch off the remote control before switching off power to the BLDC ESC. Depending on the model of the remote control, it may result in full throttle applied to the motor and it will rotate at full speed.

Features:

1. High-quality MOSFETs for BLDC motor drive
2. High-performance microcontroller for best compatibility with all types of motors at greater efficiency
3. Fully programmable with any standard RC remote control
4. Heat sink with high-performance heat transmission membrane for better thermal management
5. 3 start modes: Normal / Soft / Super-Soft, compatible with fixed-wing aircraft and helicopters
6. Throttle range can be configured to be compatible with any remote control available in the market.

Package Includes:

1 x SimonK 30A BLDC ESC Electronic Speed Controller Without Connectors.
