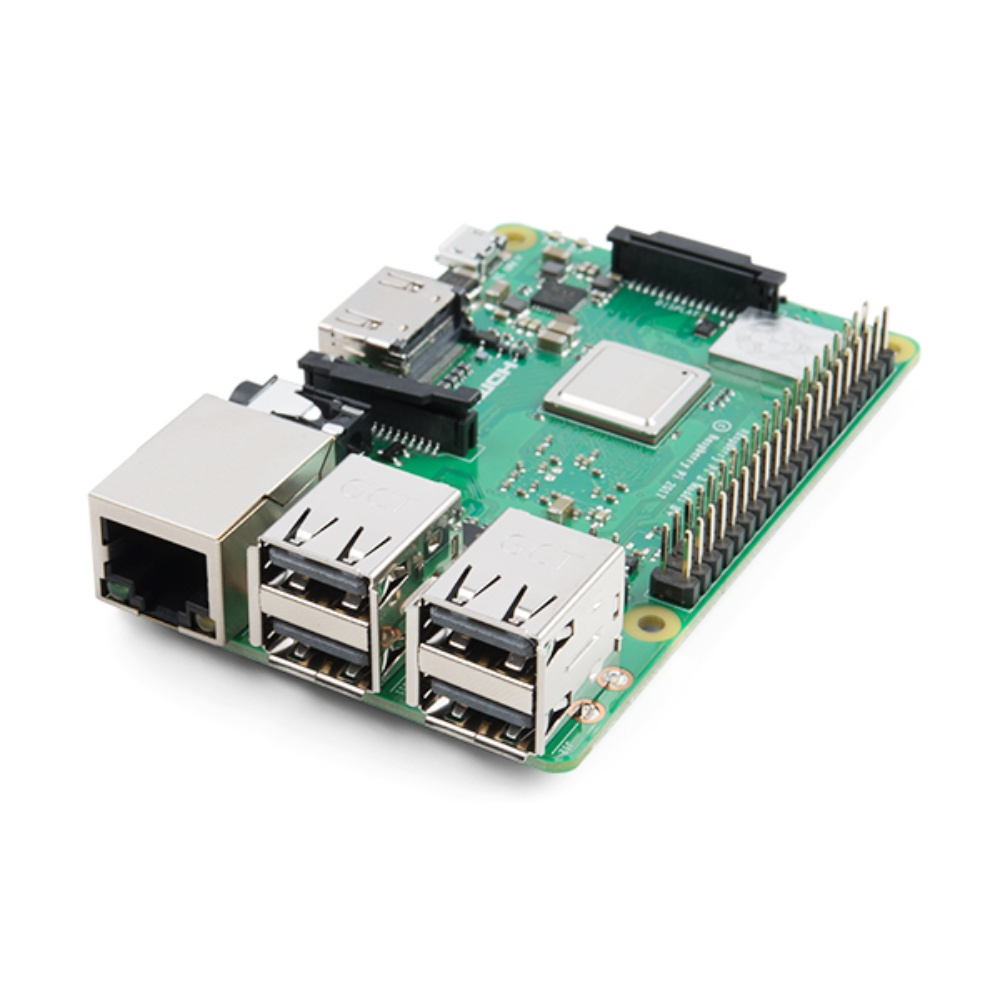

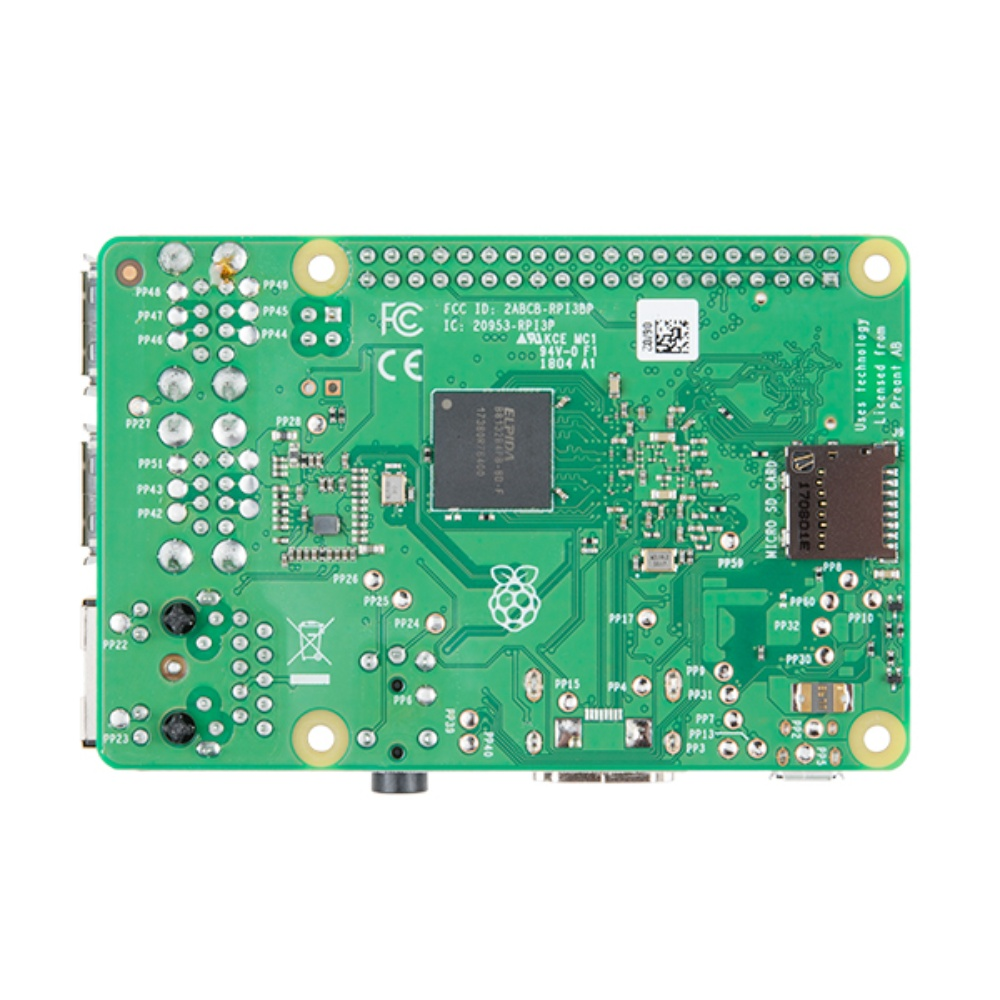

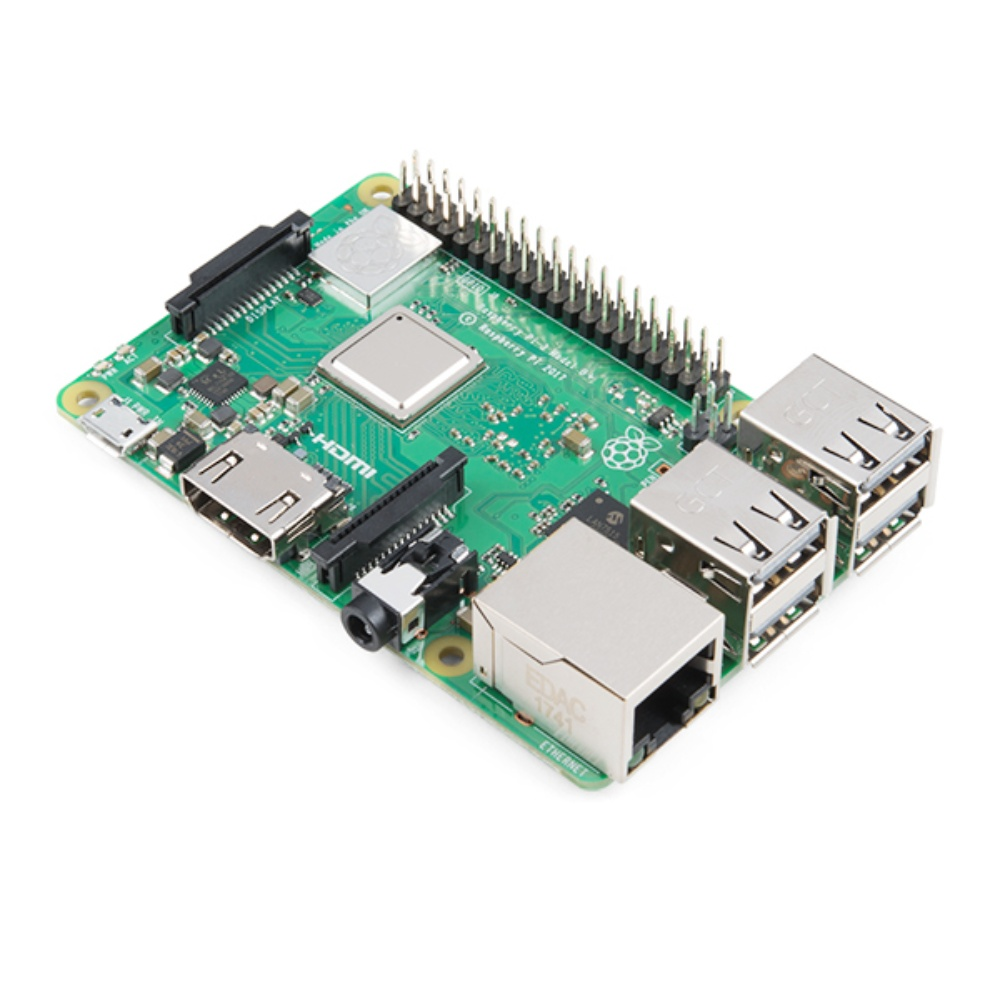

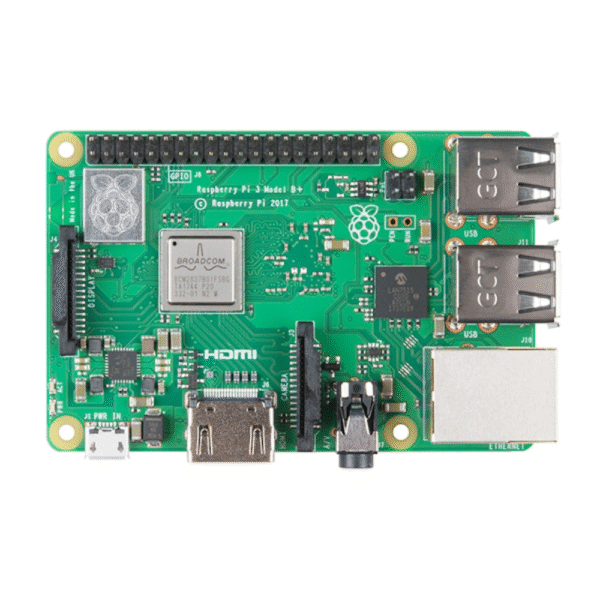

Raspberry Pi 3 Model B+
Raspberry Pi 3 Model B+ - Image 2
Raspberry Pi 3 Model B+ - Image 3
Raspberry Pi 3 Model B+ - Image 4
Raspberry Pi 3 Model B+ - Image 5

Raspberry Pi 3 Model B+

₹3,659.00

In Stock
Category:

Description

Raspberry Pi 3B+

The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi3 range and the best low power single-board computer for beginners and makers, boasting a 64-bit quad-core processor running at 1.4GHz, dual-band 2.4GHz / 5.0GHz wireless, Bluetooth 4.2/BLE, faster Ethernet, and PoE capability via a separate PoE HAT. The dual-band wireless comes with modular compliance certification allowing the board to be designed into the end product without the need for further wireless compliance testing, improving both cost and time to market. Raspbian is the recommended operating system for normal use on a Raspberry Pi.

The GPU of Raspberry Pi 3 Model B+ provides OpenGL ES 2.0, hardware-accelerated OpenVG and 1080p30 H.264 high-profile decode. It is capable of 1Gpixel/s, 1.5Gtexel/s or 24 GFLOPs of a general-purpose computer. What does that all mean? It means that if you plug the Raspberry Pi 3B+ single-board computer into your HDTV, you can watch Blu-ray quality video, using H.264 at 40MBits/s.

The Raspberry Pi 3B+ with 1GB RAM has four built-in USB ports that provide enough connectivity for a mouse, keyboard, or anything else that you feel the RPi needs. But if you want to add even more, you can still use a USB hub. Keep in mind, that it is recommended that you use a powered hub so as not to overtax the onboard voltage regulator. Powering the Raspberry Pi 3 B+ is easy just plug and Play with a 5V/2.5A USB power supply into the micro USB port. There’s no power button, so the RPi will begin to boot as soon as power is applied. To turn it off, simply shut down the Pi 3 B+, then remove power. The four built-in USB ports can even output up to 1.2A, enabling you to connect more power-hungry USB devices.

Raspberry Pi 3B+ Pin Diagram

Features:

  1. 1GB LPDDR2 SDRAM
  2. 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
  3. Gigabit Ethernet over USB 2.0 (maximum throughput of 300 Mbps)
  4. Extended 40-pin GPIO header
  5. Full-size HDMI
  6. 4 USB 2.0 ports
  7. CSI camera port for connecting a Raspberry Pi camera
  8. DSI display port for connecting a Raspberry Pi touchscreen display
  9. 4-pole stereo output and composite video port
  10. Micro SD port for loading your operating system and storing data
  11. 5V/2.5A DC power input
  12. Power-over-Ethernet (PoE) support (requires separate PoE HAT)

Package Includes:

  • 1 x Raspberry Pi 3B+
