Raspberry Pi 3 Model A+
₹2,560.00
Description

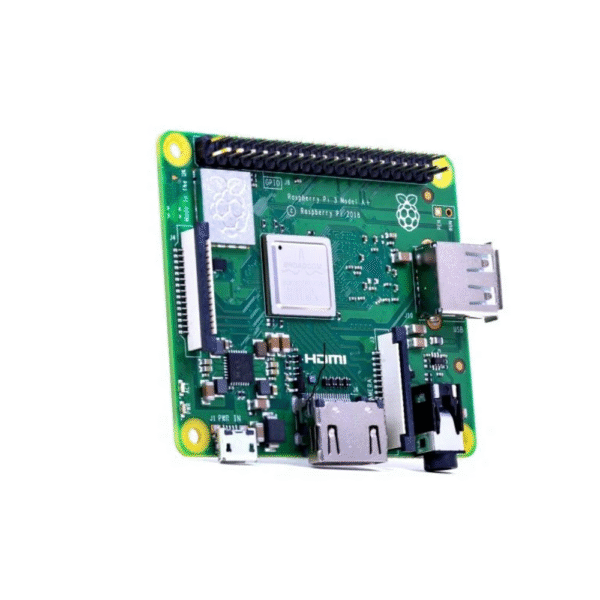

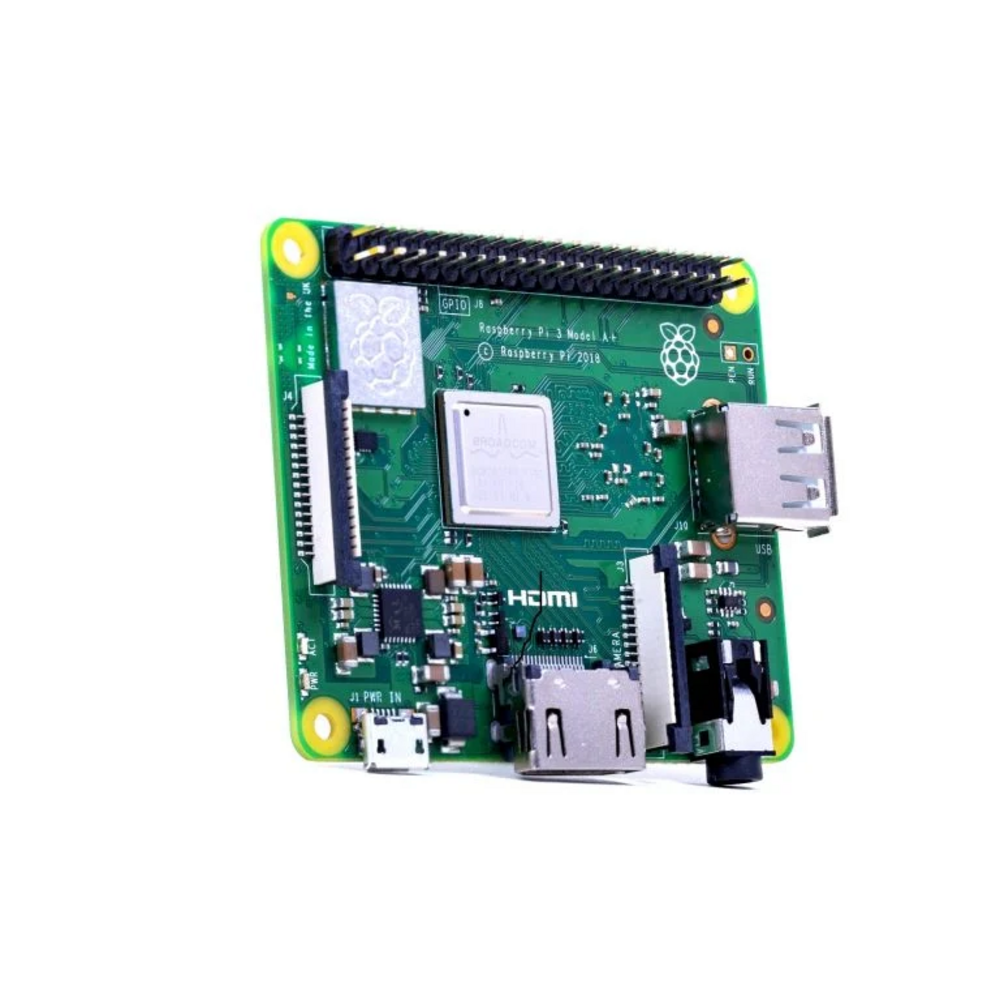

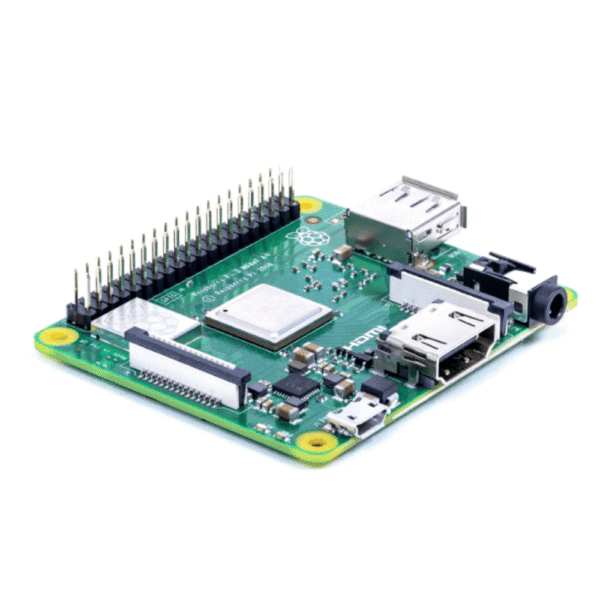

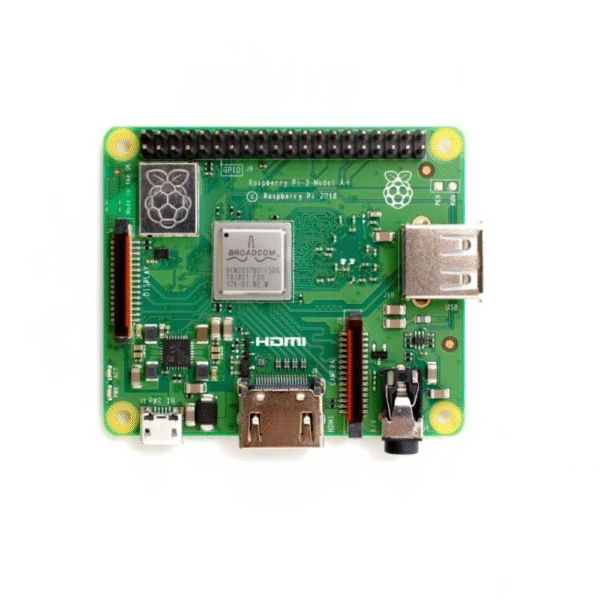

Raspberry Pi 3 Model A+
The Raspberry Pi 3 Model A+ is a new and improved version of the 2018 model. It features a Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz quad-core processor, dual-band wireless LAN, and Bluetooth 4.2/BLE. It has the same mechanical format as the Raspberry Pi 1 Model A+.
This Pi is ideal for minimalists who want a low-cost, low-power, and compact board. It uses the same processor as the model B+, but it has only one USB port and no ethernet jack. It measures 65mm x 56mm without the connectors.
It supports all Pi operating systems and software and has a 40-pin GPIO header and camera/display sockets that are compatible with any HATs or Pi Plates or other accessories that work with the model B+.
It also has a HDMI port, a sound/composite connector, and a micro-USB connector for power.
To use this Pi, you will need a USB power supply with a micro-USB cable, and a microSD card with a Raspberry Pi OS on it (we recommend a Raspbian 4G card or NooBS 8G card).
specification
| Operating Power | 5V/2.5A DC |
|---|---|
| Clock Speed | 1.4 GHz |
| On Board Ports | 4-pole stereo output and composite video port, CSI camera port for connecting a Raspberry Pi Camera Module, DSI display port for connecting a Raspberry Pi Touch Display, Full-size HDMI Output Port, Micro SD port for loading your operating system and storing data, Micro-USB 5V/2.5A DC Power Input Port, Single USB 2.0 ports |
| Processor | Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz |
| RAM | 512MB LPDDR2 SDRAM |
| Micro-SD Card Slot | Yes (FAT32 format), support maximum 32G Micro SD Card Memory Features |
| Dimensions (mm) LxWxH | 65 x 56 x 30 |
| UPC | 652508442181 |
| GTIN | 652508442181 |
| Shipping Weight | 0.04 kg |
| Shipping Dimensions | 12 × 8 × 3 cm |
Package Includes
- 1 x Raspberry Pi 3 Model A+ Board
Note: Use only with the recommended power supply. Using any other power supply may cause damage and will void the warranty.
