MLX90614ESF Infrared IR Temperature Sensor Module
MLX90614ESF Infrared IR Temperature Sensor Module - Image 2

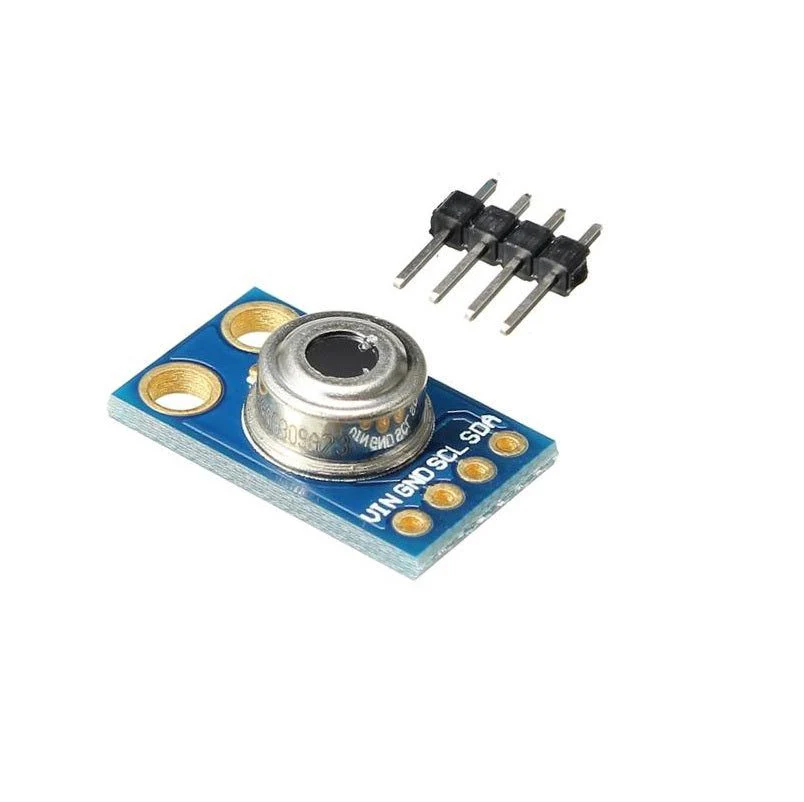

MLX90614ESF Infrared IR Temperature Sensor Module - Image 3

MLX90614ESF Infrared IR Temperature Sensor Module

Category:

Original price was: ₹899.00.Current price is: ₹787.00.

  • Works from 3.3V to 5V input, Module has power regulator IC built-in.
  • Standard I2C interface with built 2x pull up resistors.
  • When measuring the temperature, please maintain a measuring distance of 1 cm.
  • SMBus compatible digital interface for fast temperature readings and building sensor networks.
  • Customizable PWM output for continuous reading.
  • Simple adaptation for 8 to 16V applications.

Description

MLX90614ESF Infrared IR Temperature Sensor Module

The MLX90614ESF is an infrared thermometer for non-contact temperature measurements. Both the IR-sensitive thermopile detector chip and the signal conditioning ASIC are integrated into the same TO-39 can.

Integrated MLX90614 GY-906 is a low noise amplifier, 17-bit ADC, and powerful DSP unit thus achieving high accuracy and resolution of the thermometer.

The user can configure the digital output to be PWM. As a standard temperature sensor, the 10-bit PWM is configured to continuously transmit the measured temperature in the range of -20 to 120 °C, with an output resolution of 0.14 °C.
