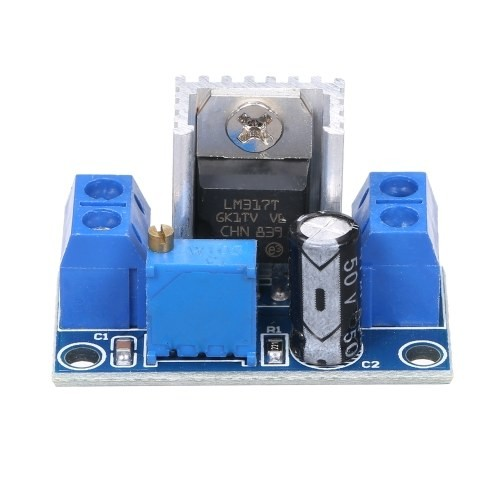

LM317 DC Linear Regulator, DC-DC 4.5~40V Turn 1.2~37V, Step Down Power Module, Adjustable
LM317 DC Linear Regulator, DC-DC 4.5~40V Turn 1.2~37V, Step Down Power Module, Adjustable - Image 2

LM317 DC Linear Regulator, DC-DC 4.5~40V Turn 1.2~37V, Step Down Power Module, Adjustable

Categories: ,

Original price was: ₹149.00.Current price is: ₹75.00.

  1. Output Current: 1.5A (minimum), 2.2A (typ)
  2. Input and output voltage difference (VI-VO): 40Vdc (max)
  3. Adjustable output voltage range: 1.2 ~ 37V
  4. Operating temperature: -55 to +150
  5. Output Current: 1.5A
  6. Input voltage: 4.2 ~ 40 V

Description

The LM317 DC-DC converter is an electronic circuit for converting a DC source voltage from one level to a lower level. This module is important in some portable electronic devices such as cell phones and laptops, which are primarily supplied by power from batteries. The step-down voltage can be easily adjusted and is, therefore, more efficient than using multiple batteries to achieve the same thing.

Features :

  1. Output Current: 1.5A (Min.), 2.2A (Typical)
  2. Input-Output Voltage Differential (VI-VO): 40Vdc (Max.)
  3. Voltage Input: 4.2~40V
  4. Adjustable Output Voltage Range: 1.2~37V
  5. Operating Temperature: 0~125 ℃
  6. Current Output: 1.5A
  7. Characteristic Frequency: 100MHz
  8. Input Method: VIN Input Positive Level, GND Input Negative
  9. Output Method: VOUT Output Positive Level, GND Output Negative
