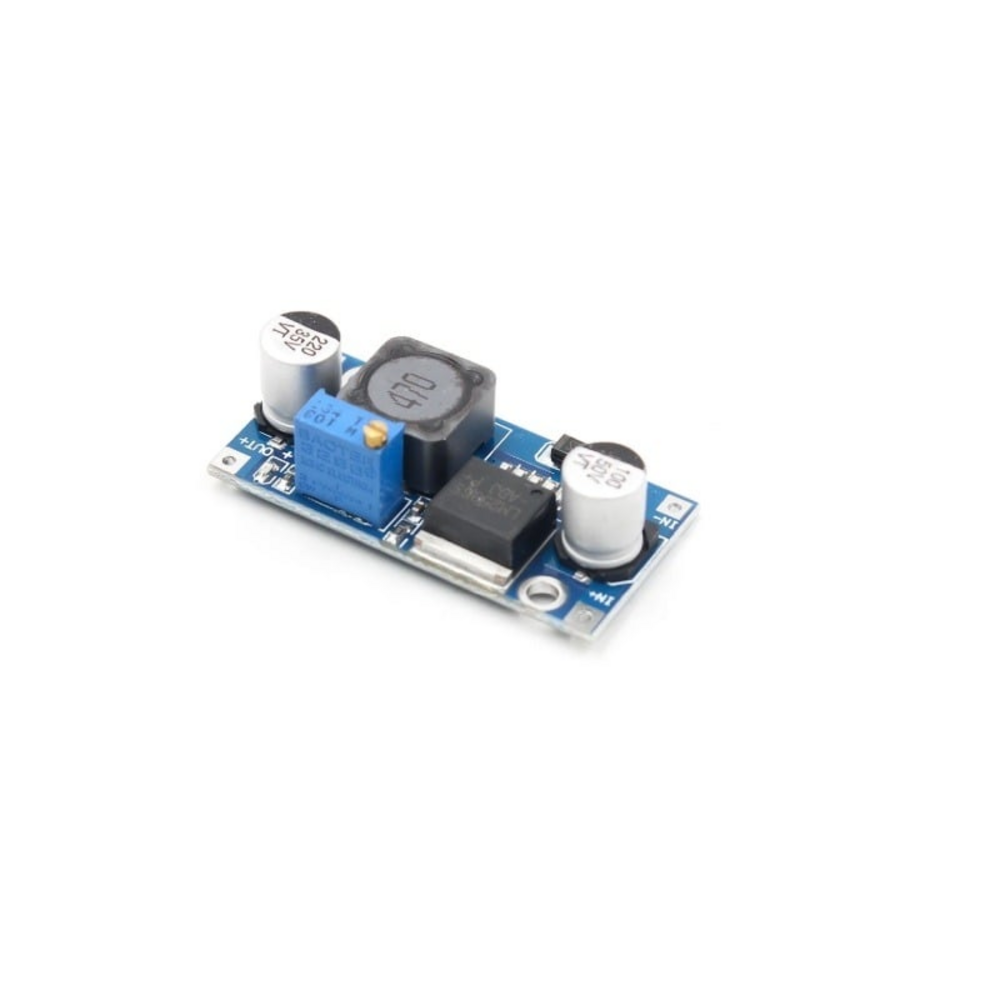

LM2596S DC-DC Buck Converter Power Supply

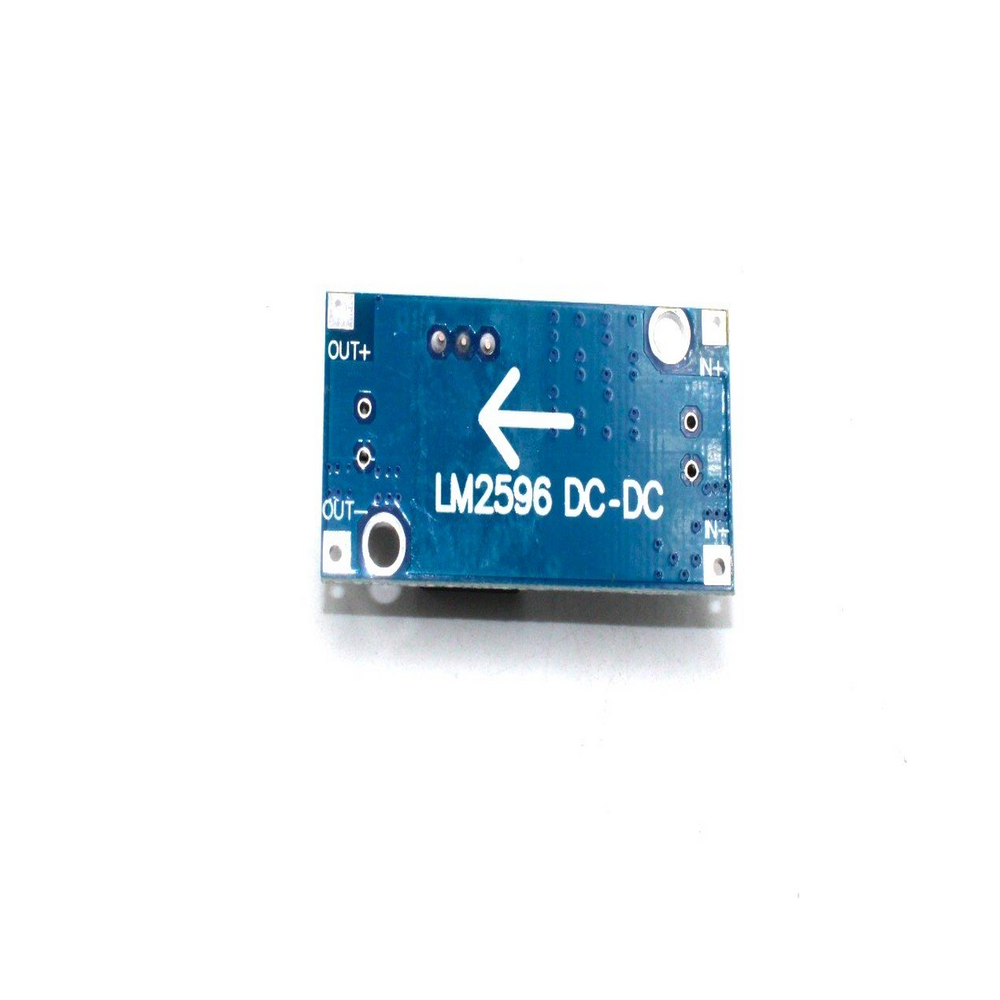

LM2596S DC-DC Buck Converter Power Supply - Image 2
LM2596S DC-DC Buck Converter Power Supply - Image 3

LM2596S DC-DC Buck Converter Power Supply

Categories: ,

Original price was: ₹79.00.Current price is: ₹39.00.

  1. Input voltage: 3-40V
  2. Output voltage: 1.5-35V(Adjustable)
  3. Output current: Rated current is 2A, maximum 3A
  4. Switching Frequency: 150KHz
  5. Operating temperature:Industrial grade (-40 to +85 )
  6. Conversion efficiency: 92%(highest)
In Stock

Description

DC-DC Buck Converter Step Down Module LM2596 Power Supply is a step-down(buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.

The LM2596 series operates at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators.

LM2596S DC-DC Buck Converter

This is an LM2596 DC-DC buck converter step-down power module with the high-precision potentiometer, capable of driving a load up to 3A with high efficiency, which can work with Freeduino UNO, other mainboards, and basic modules. When the output current keeps greater than 2.5A (or output power greater than 10W), please add a heat sink to it.
