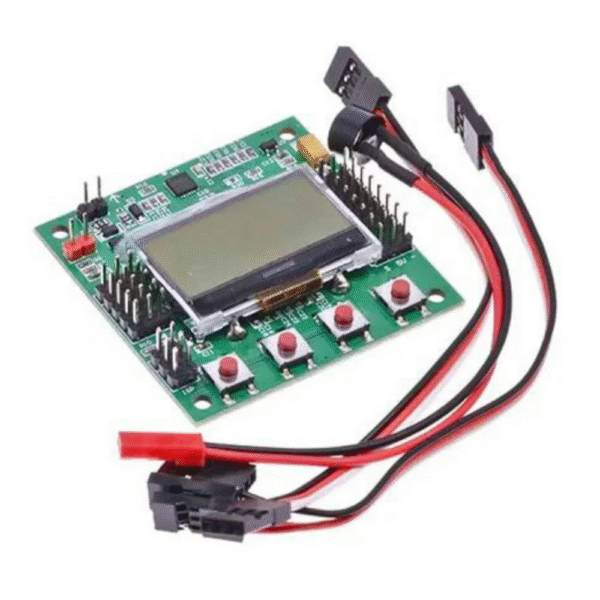

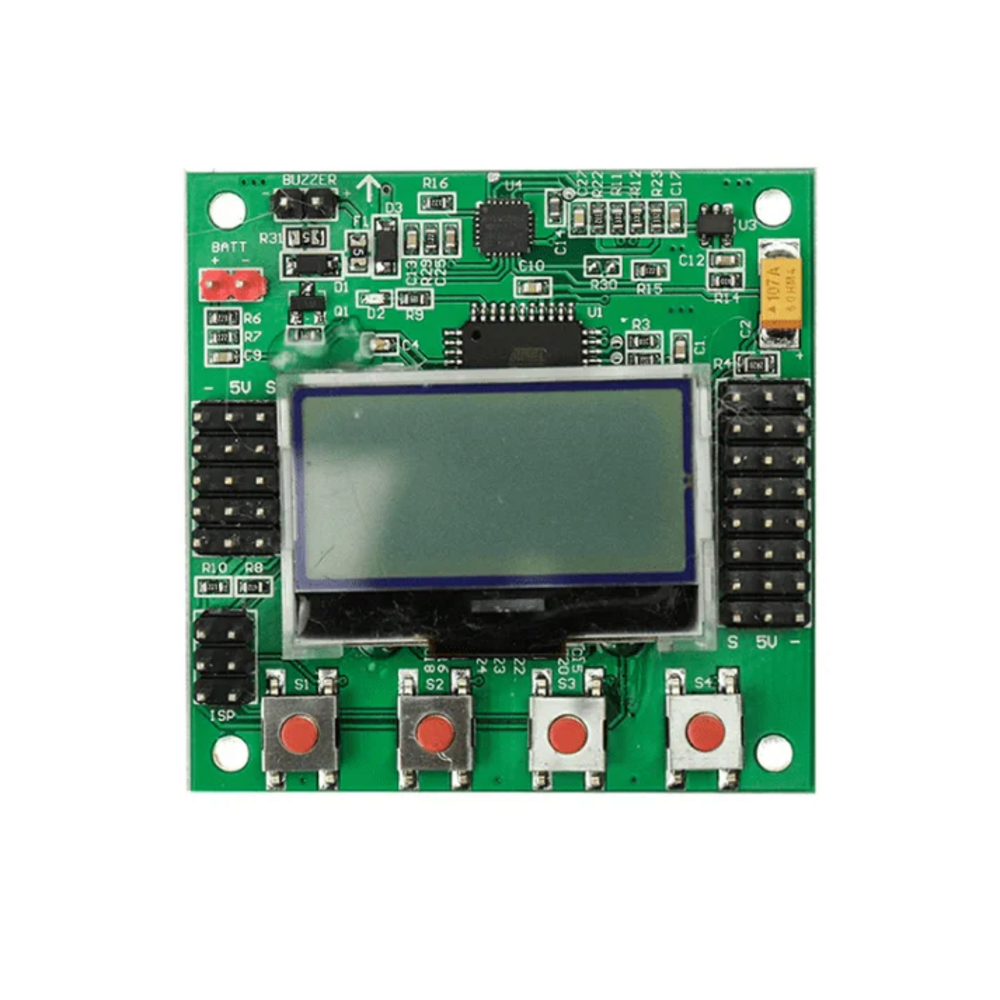

KK board 2.1.5 Multi-Rotor LCD Flight Control Board

Description

The KK 2.1.5 Flight controller board is a highly efficient flight controller for drones that is designed to manage the flight of various multi-rotor aircraft, such as Tricopters, Quadcopters or drones, and Hexacopters.

Its primary function is to stabilize the aircraft during flight by taking signals from onboard gyroscopes for roll, pitch, and yaw, and passing them to the Atmega324PA processor.

The processor then processes the signals according to the user’s firmware selection and sends the control signals to the Electronic Speed Controllers (ESCs), making it one of the best flight controllers for drones.

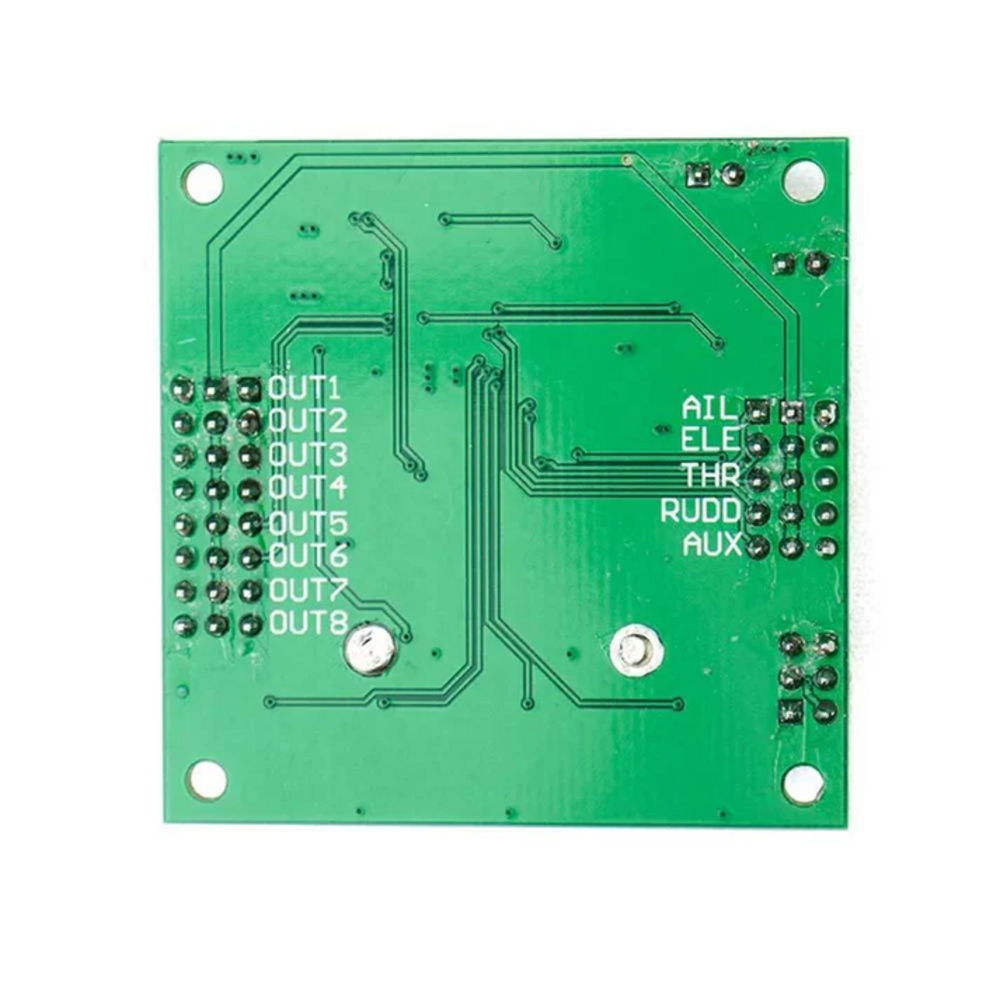

The KK2.1.5 board receives signals from the radio system via a receiver and passes these signals along with stabilization signals to the Atmega324PA IC via aileron, elevator, throttle, and rudder user demand inputs.

If you are wandering to become an Electronic geek and want to build some Cool Projects of Drone Then this module is for you. With this Control board, you can Enhance your Knowledge about Flight controllers as well as the working of the accelerometer and Gyroscope. The KK 2 Flight Controller Board with 6050 MPU Board and Atmel 644PA is the next generation of KK flight control boards. It comes preinstalled with the KK 2 firmware and features advanced processor technology from STMicroelectronics, sensor technology, InvenSense system delivering incredible performance, flexibility, and reliability for controlling any autonomous vehicle. A handy piezo buzzer is also included for audio warning when activating and deactivating the board.

Features:

• Most stable KK Board ever.
• 6050 MPU system based.
• Easy graphical interfacing with the receiver.
• In Built firmware.
• Easy to use for beginners.

Firmware Version: 1.6:

1. Pre-installed firmware., Dualcopter, Tricopter.
2. Y6, Quadcopter +, Quadcopter X, Hexcopter +, Hexcopter X, Octocopter +, Octocopter X.
3. X8 +, X8 X, H8, H6, V8, V6.
4. Flying Wing.
5. Singlecopter 2M 2S, Singlecopter 1M 4S.
6. Custom Mix via the “Mixer Editor” option:
   • The Mixer Editor allows you to adjust where and how much signal the motors receive from stick input and sensors. This allows you to create any configuration possible with up to 8 motors or servos.

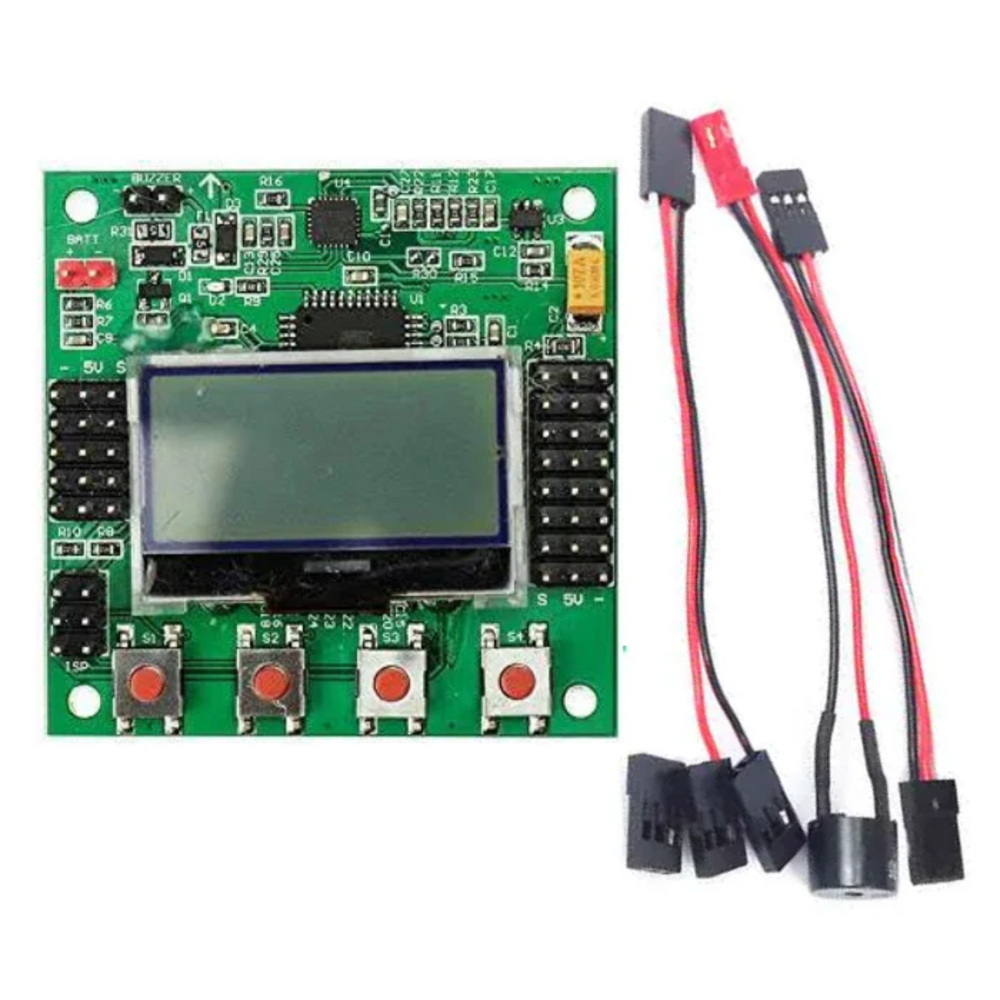

Package Includes:

1 x KK2 Multi-rotor LCD Flight Control Board With 6050MPU And Atmel 644PA

1 x Piezo buzzer.
