KBPC5010 50A 1000V Diode Bridge Rectifier

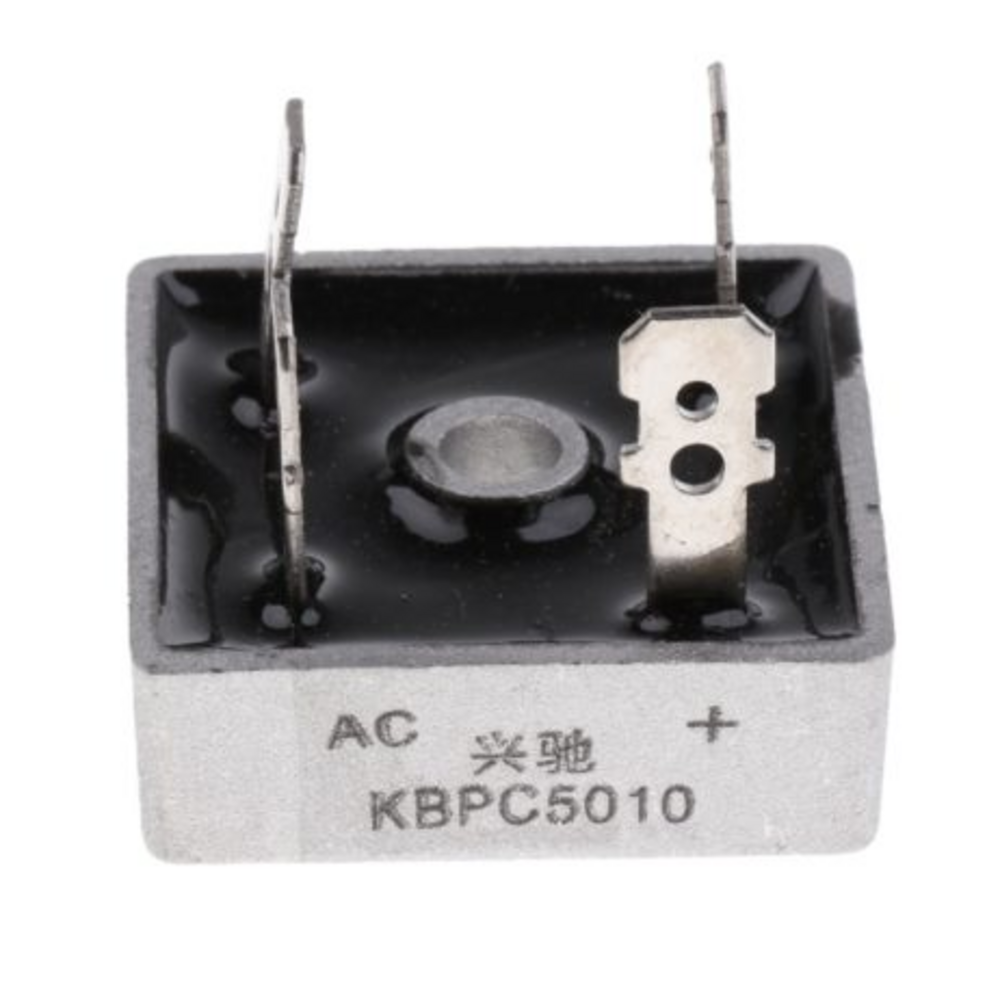

KBPC5010 50A 1000V Diode Bridge Rectifier - Image 2

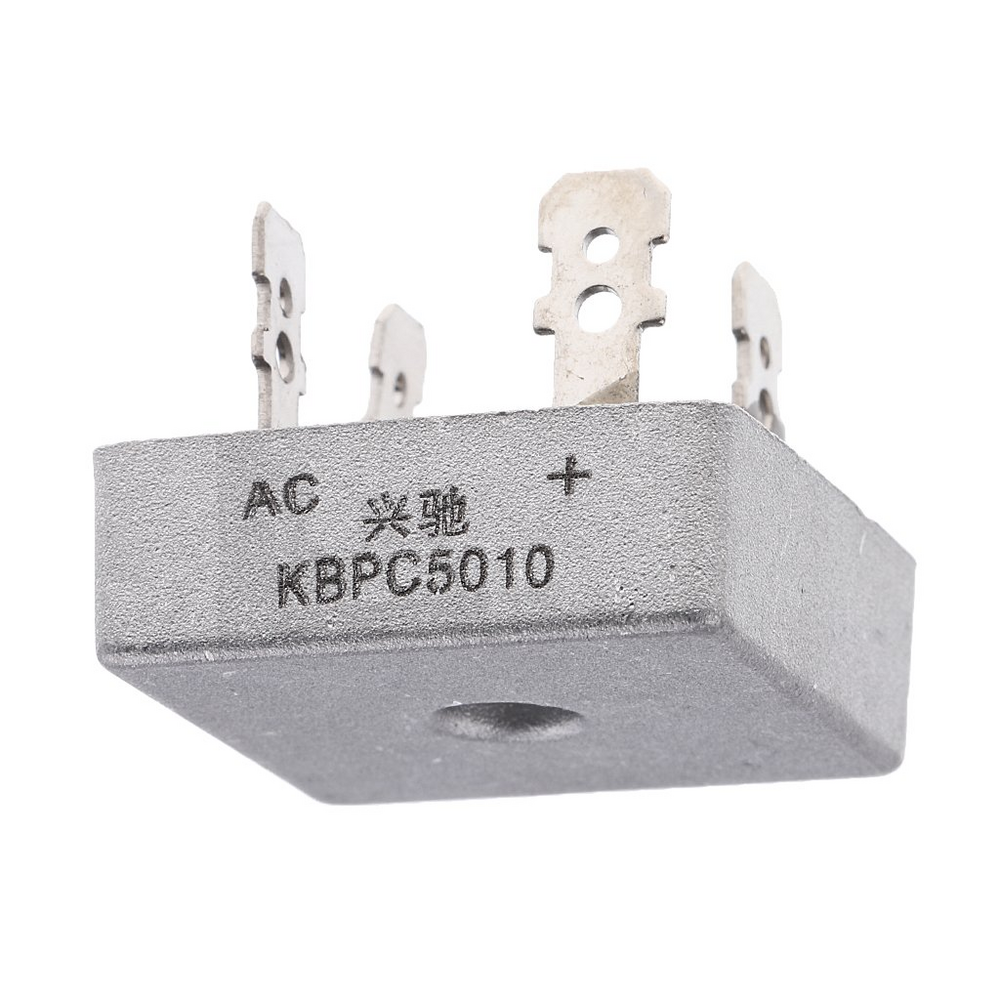

KBPC5010 50A 1000V Diode Bridge Rectifier - Image 3

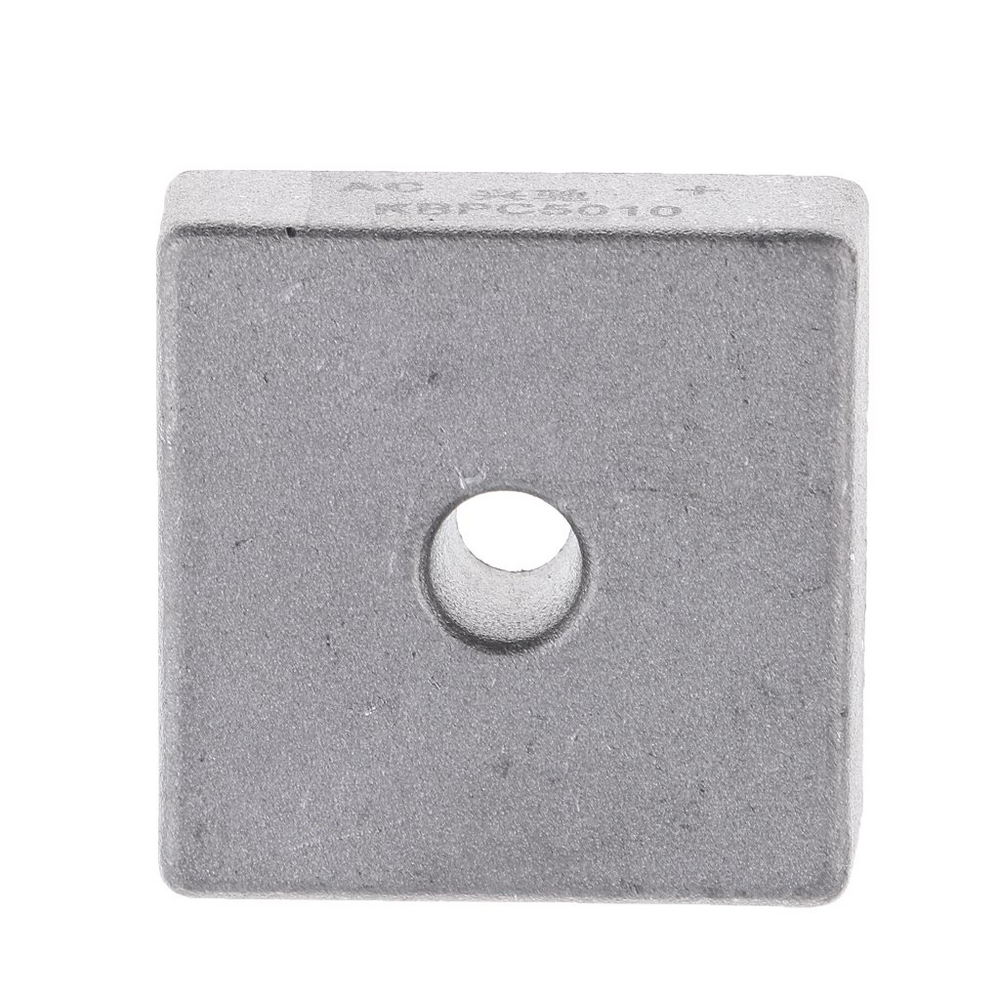

KBPC5010 50A 1000V Diode Bridge Rectifier - Image 4

KBPC5010 50A 1000V Diode Bridge Rectifier

Categories: ,

Original price was: ₹89.00.Current price is: ₹46.00.

  1. Electrically Isolated Metal Case for Maximum Heat Dissipation
  2. Case to Terminal Isolation Voltage 2500
  3. Dimensions (Overall): 28.9 x 28.5 x 22mm
  4. Peak Average Current: 50A
  5. Reverse Voltage (Max): 1000V
Out of stock

Description

The KBPC5010 is one massive bridge rectifier! Bridge rectifiers are used to convert alternating current (AC) to direct current (DC). They are constructed from at least 4 diodes and are a major component of most basic AC/DC power supplies. This specific bridge rectifier can handle up to 50A and a peak reverse voltage of up to 1000V. The metal casing has a hole in the middle – ideal for mounting it.

The rectifier measures 28.9 x 28.5 x 22mm overall and features 0.250″ quick disconnects. To use this part simply connect your positive DC line to the “+”, the negative/ground to the “-”, and each of the AC lines to one of the “AC” Pins.
