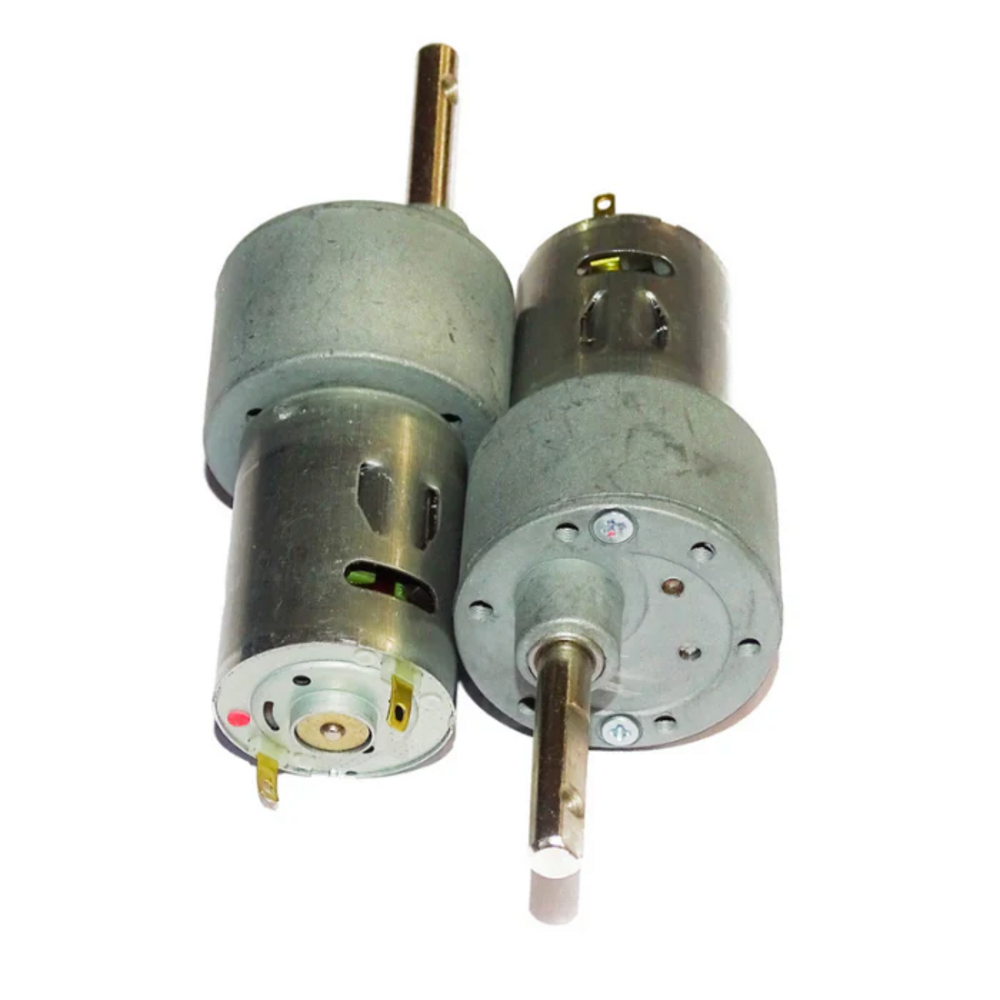

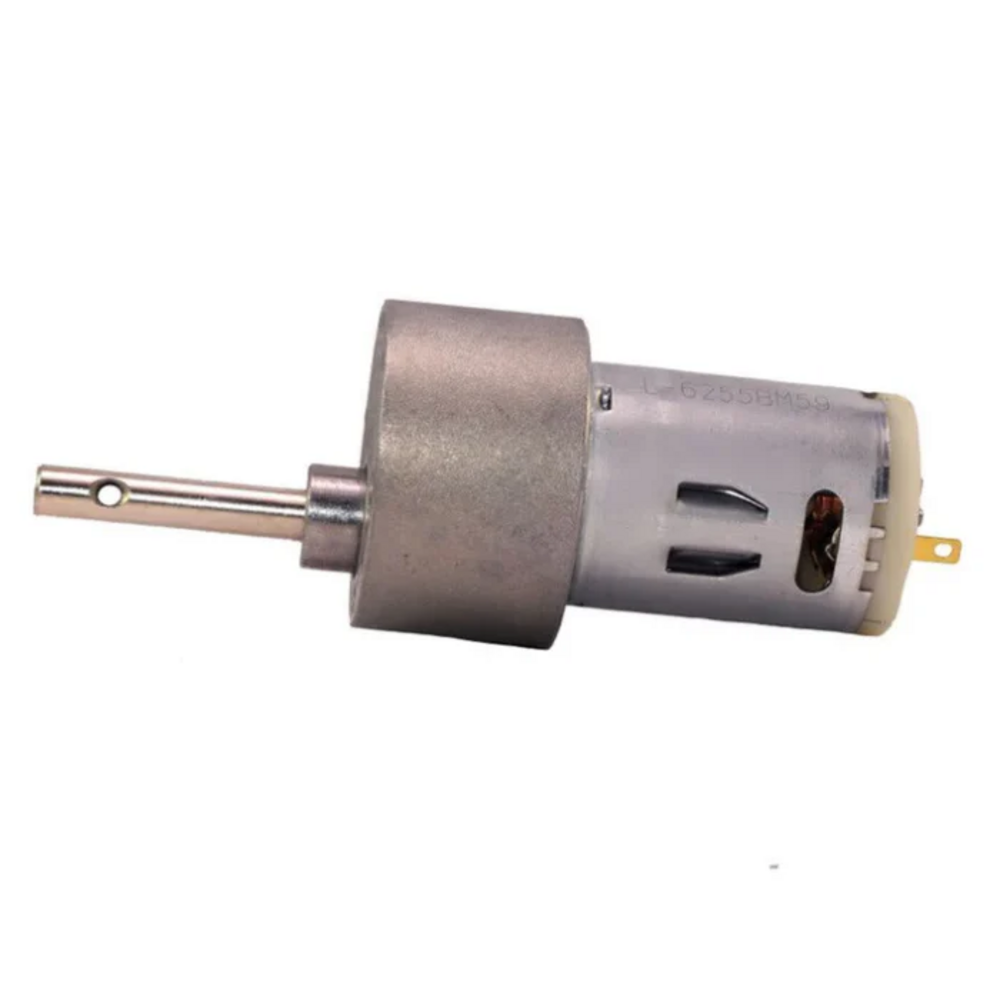

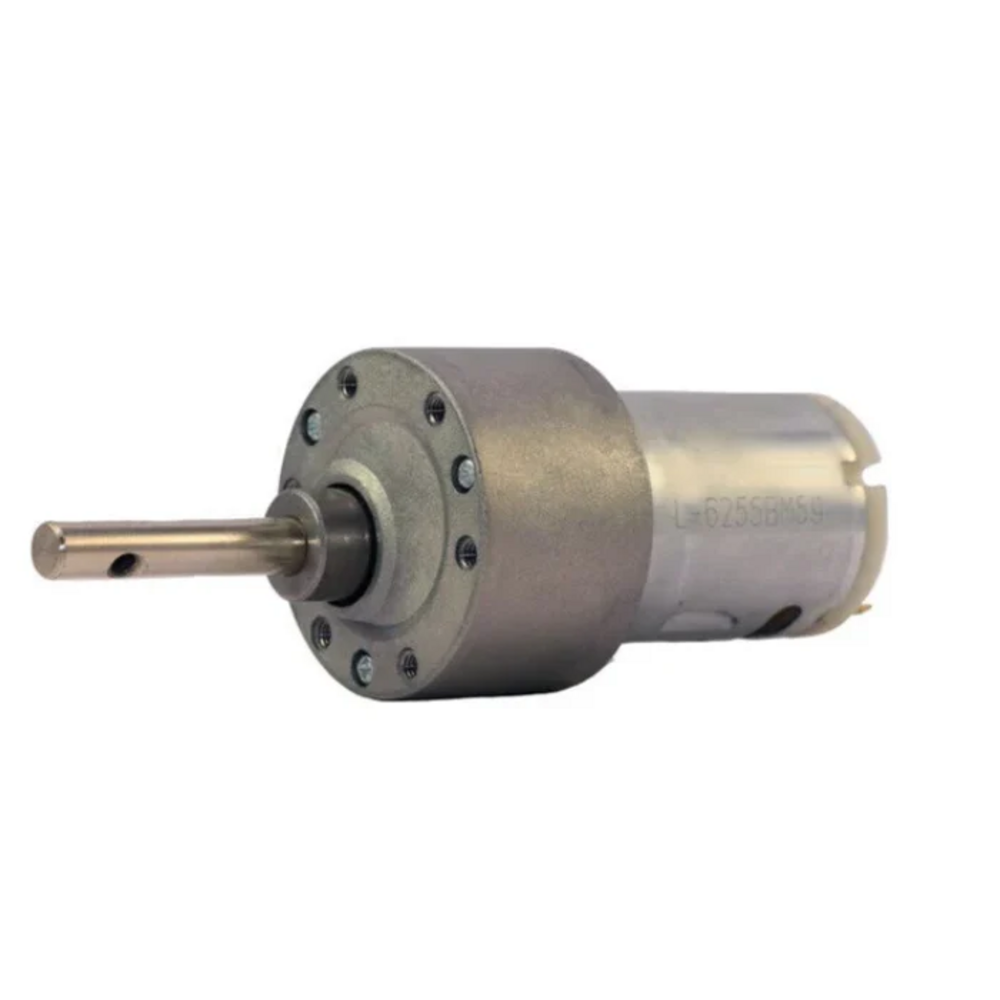

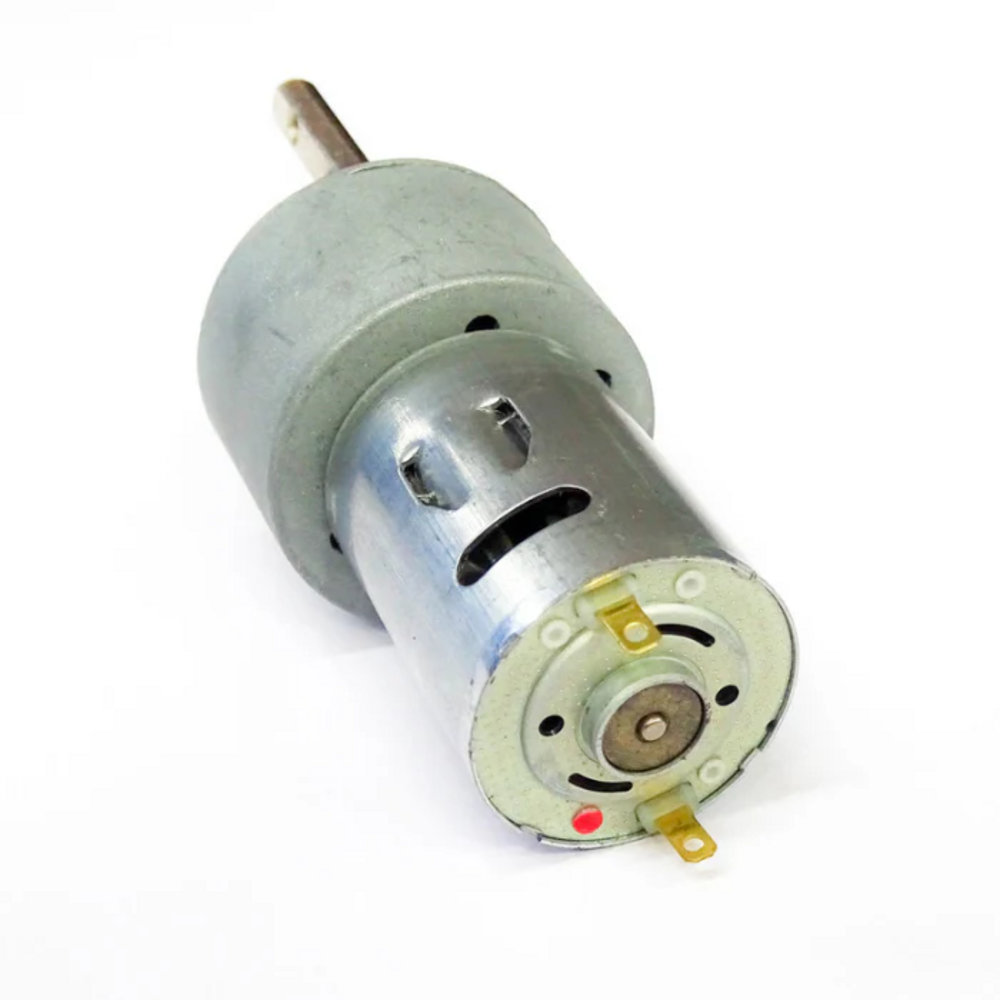

Johnson Geared Motor (Grade B) 10 RPM
Johnson Geared Motor (Grade B) 10 RPM - Image 2
Johnson Geared Motor (Grade B) 10 RPM - Image 3
Johnson Geared Motor (Grade B) 10 RPM - Image 4
Johnson Geared Motor (Grade B) 10 RPM - Image 5

Johnson Geared Motor (Grade B) 10 RPM

Category:

Original price was: ₹499.00.Current price is: ₹452.00.

  1. Base Motor RPM: 18000
  2. Operating Voltage: 6-18 V
  3. Rated Voltage: 12 V
  4. Rated Torque: 11.7 kg-cm
  5. Stall Torque: 46 kg-cm
  6. Gearbox Dimensions: 30×37 (LxW) mm

Description

These “Grade B Johnson DC Motors” are in fame for their performance even at a low price compared to “Grade A Quality Johnson DC Motors”. (to know the difference between the two motors please read the Note below)

It is a simple DC motor featuring metal gearbox for driving the shaft of the motor, so it is a mechanically commutated electric motor which is powered from DC supply. The Johnson Geared Motors are known for their compact size and massive torque-speed characteristic.

The Johnson Motor comes with side shaft also known as an off-centered shaft and six M3 mounting holes. The shaft of the motor equips metal bushes which makes these DC gear motors Shaft wear resistant. The shaft of the motor has a hole for better coupling.

The motor will run smoothly between the voltage range 6 to 18 V DC and give you 10 RPM at 12V supply. It provides the torque of 11.7 kg-cm at 10 RPM.
