JGB37-520 DC6V 960 RPM Miniature Speed Reduction Gear DC Motor

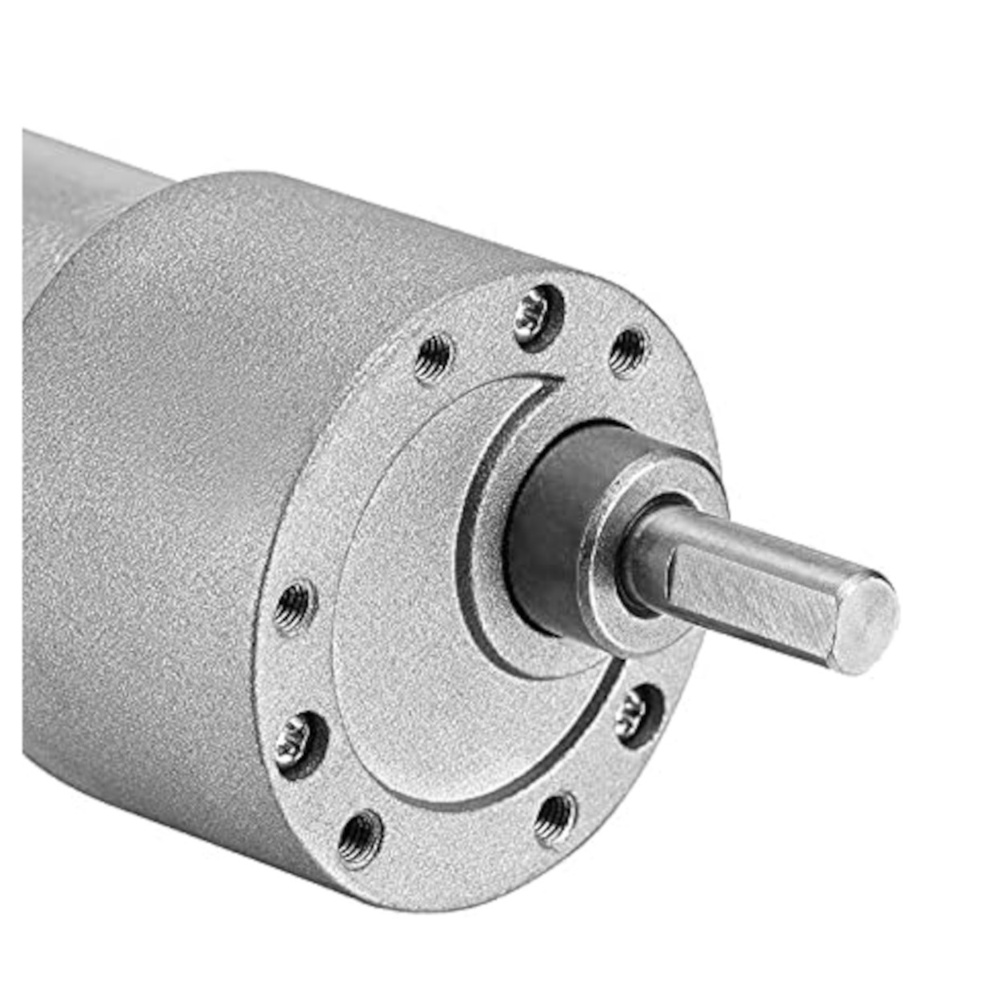

JGB37-520 DC6V 960 RPM Miniature Speed Reduction Gear DC Motor - Image 2

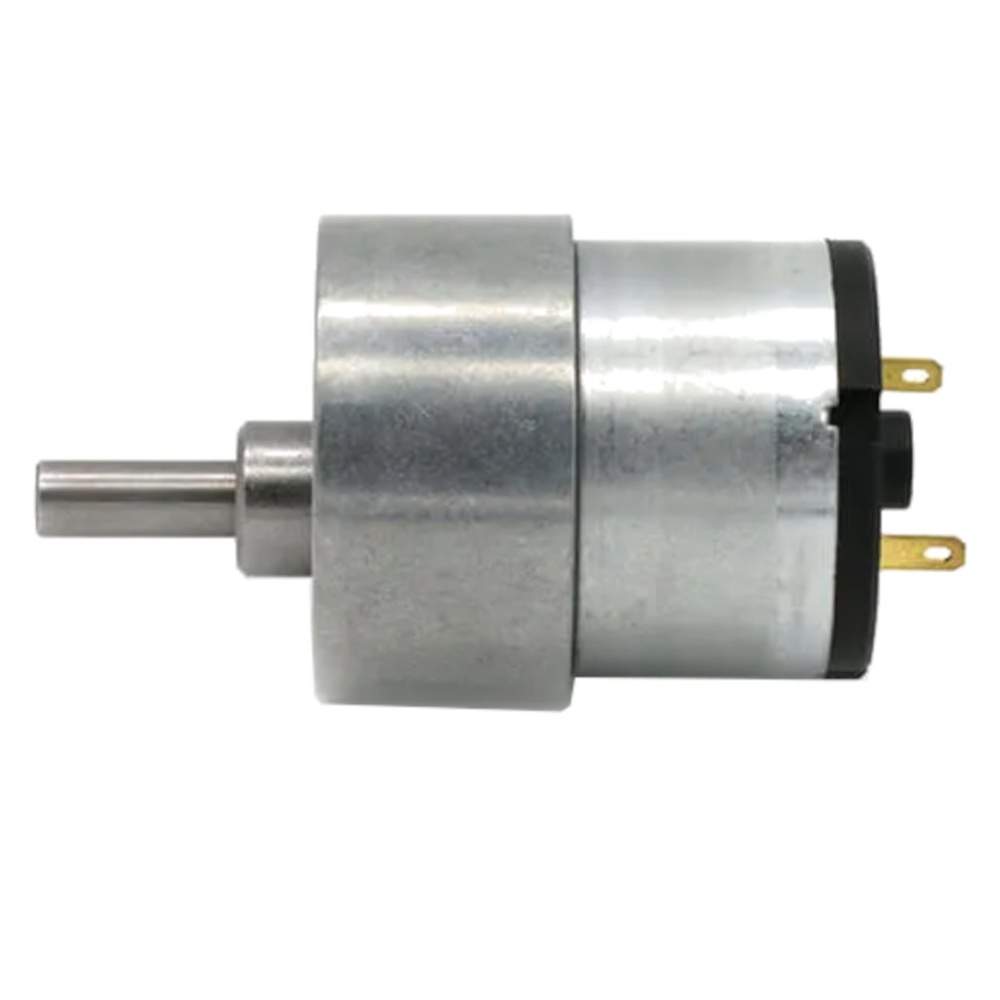

JGB37-520 DC6V 960 RPM Miniature Speed Reduction Gear DC Motor - Image 3
JGB37-520 DC6V 960 RPM Miniature Speed Reduction Gear DC Motor - Image 4
JGB37-520 DC6V 960 RPM Miniature Speed Reduction Gear DC Motor - Image 5

JGB37-520 DC6V 960 RPM Miniature Speed Reduction Gear DC Motor

₹499.00

  • Motor model:JGB37-520
  • Rated voltage:6V DC
  • Revolving Speed: 960RPM
  • Rated Torque: 0.07 kg. cm
  • Stall Torque: 0.28 kg. cm
  • Rated Current: 50 mA
  • Stall Current: 1.5A
In Stock
Category:

Description

JGB37-520 is a Miniature Brushed DC Speed Reducer Motor that is a compact yet powerful solution for diverse applications. This motor Operates on a 6V power supply and provides 0.07kg. cm torque at 960 RPM. This Motor comes with a side shaft also known as an off-centred shaft and six M3 mounting holes. The shaft of the motor is D-type and supports both forward and reverse movements. The speed reducer feature ensures controlled and precise rotations.

This motor, which focuses on miniaturization and reliable performance, is suitable for applications where space is a constraint. It is an ideal choice for various projects in robotics, electronics, and other automation applications that require compact yet efficient motor solutions.

Note: Please note that this motor will have a +/- 20% error in the RPM.

Features:

  • The motor has a sturdy construction and offers compact yet potent performance.
  • It comes with High-Quality metal gears.
  • Supports both forward and reverse movements
  • Built-in speed reducer ensures controlled and precise rotations
  • The motor is an excellent choice for robotics, electronics, and other projects requiring a compact and efficient solution for controlled motion in both forward and reverse directions.

Applications:

  • This Gear Motor gives very good torque at an affordable price, so it is widely applicable in Pan/Tilt cameras, auto shutters, welding machines, water meter IC cards, grills, ovens, cleaning machines, garbage disposers, household appliances, slot machines, money detectors, automatic actuators, coffee machines, towel disposals, lighting coin refund devices, peristaltic pumps, and so on.
  • Also, they are best suited with highly developing capable robots or robotic platforms, for various automation purposes

Package Includes: 1X JGB37-520 DC6V 960RPM Miniature Speed Reduction Gear DC Motor
