HX711 Load Cell Module
HX711 Load Cell Module - Image 2
HX711 Load Cell Module - Image 3

HX711 Load Cell Module

Category:

Original price was: ₹70.00.Current price is: ₹42.00.

  • Recommended excitation voltage is 5-10V.
  • Two selectable differential input channels.
  • On-chip active low noise PGA with a selectable gain of 32, 64 and 128.
  • On-chip power supply regulator for load-cell and ADC analog power supply.
  • Selectable 10SPS or 80SPS output data rate.
  • On-chip oscillator requiring no external component with optional external crystal.
  • On-chip power-on-reset.
  • Simple digital control and serial interface: pin-driven controls, no programming needed.
  • Simultaneous 50 and 60Hz supply rejection.

Description

HX711 Load Cell Module

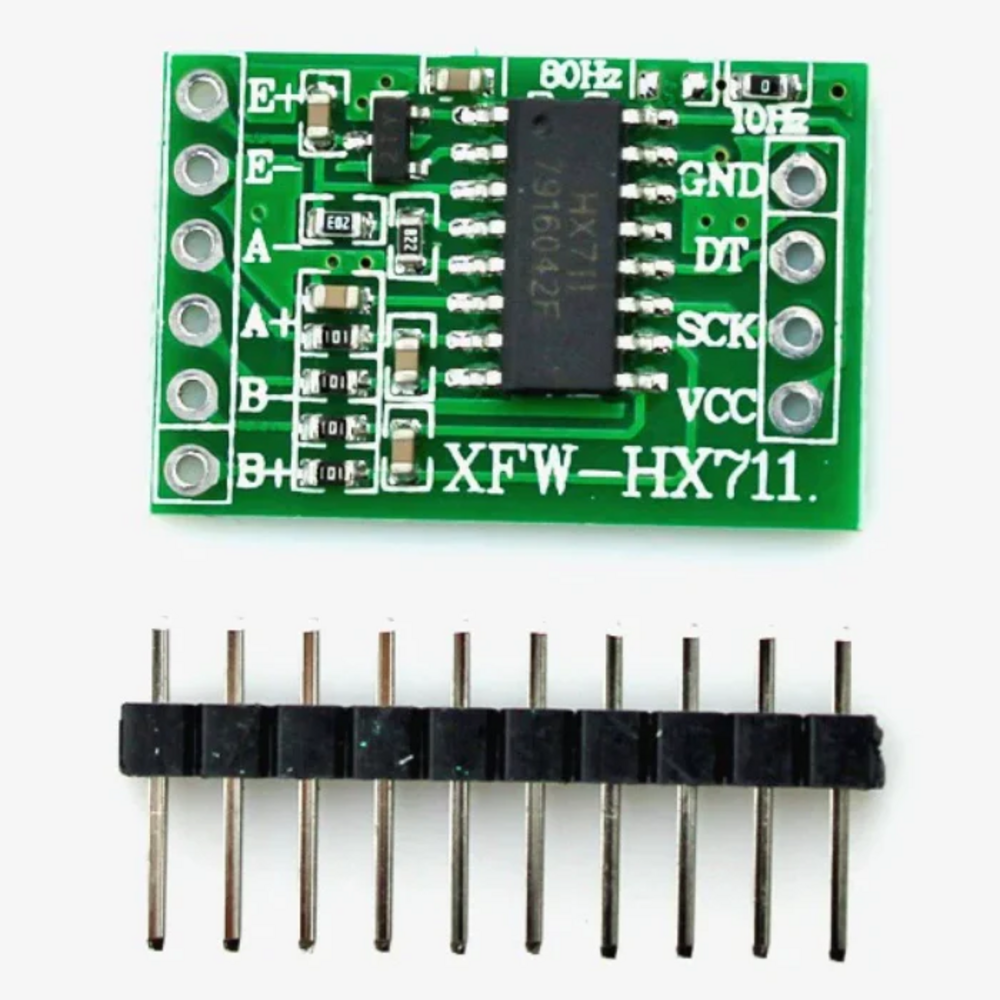

The HX711 Dual-Channel 24 Bit Precision A/D weight Pressure Sensor Load Cell Amplifier and ADC Module is a small breakout board for the HX711 IC that allows you to easily read load cells to measure weight. By connecting the module to your microcontroller, you will be able to read the changes in the resistance of the load cell with some calibration. You’ll be able to get very accurate weight measurements.

This can be handy for creating your own industrial scale, process control, or simple presence detection. The HX711 Weighing Sensor uses a two-wire interface (Clock and Data) for communication. Any microcontroller’s GPIO pins should work and numerous libraries have been written making it easy to read data from the HX711.

Load cells use a four-wire Wheatstone bridge to connect to the HX711. These are commonly colored RED, BLK, WHT, GRN, and YLW.

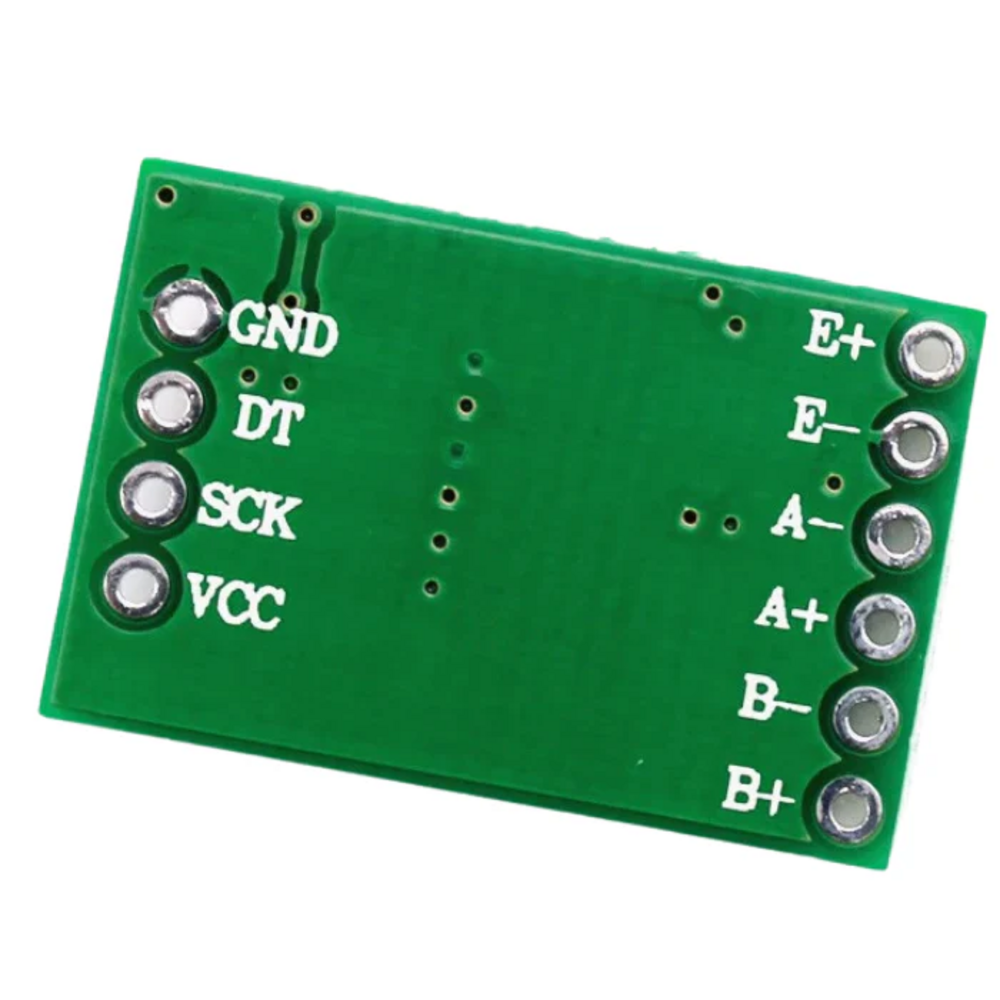

Analog Sides:

  • E+: Excitation positive.
  • E-: Excitation negative.
  • A-: Channel A Negative Input.
  • A+: Channel A positive Input.
  • B-: Channel B Negative Input.
  • B+: Channel B positive Input.
