Humidity Sensitive Switch Relay Module

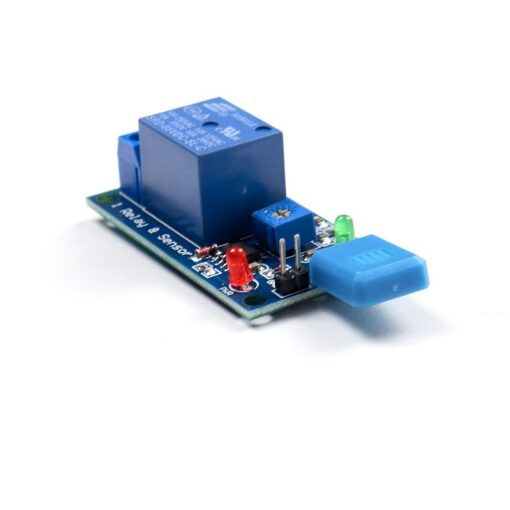

Humidity Sensitive Switch Relay Module - Image 2

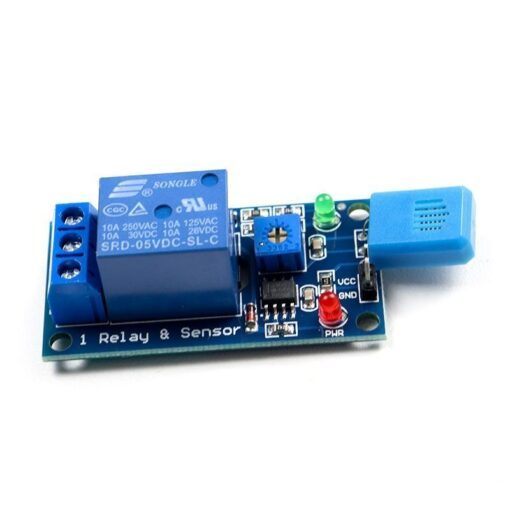

Humidity Sensitive Switch Relay Module - Image 3

Humidity Sensitive Switch Relay Module

Categories: ,

Original price was: ₹249.00.Current price is: ₹177.00.

  1. Maximum Voltage(V):250V AC
  2. Supply Current (A):150mA
  3. Trigger Voltage (VDC):5
  4. Switching Voltage (VAC):250@10A
  5. Switching Voltage (VDC):30@10A
  6. Opt. Relative Humidity(RH):20% ～ 85%
In Stock

Description

Humidity Sensitive Switch Relay Module is a premium quality Humidity & Temperature Sensor Module with a relay.

It is a Humidity Sensitive Switch Relay Module. The module uses a high-quality HR202 humidity sensor. The comparator output directly drives the relay to connect 220V AC or other equipment. With a potentiometer to adjust the detection threshold. The sensor interface can be equipped with a pin and a wet sensor with a lead.

Pin Diagram:

humidity sensitive relay switch, hr202, humidity sensor
