HC-05 Bluetooth Module

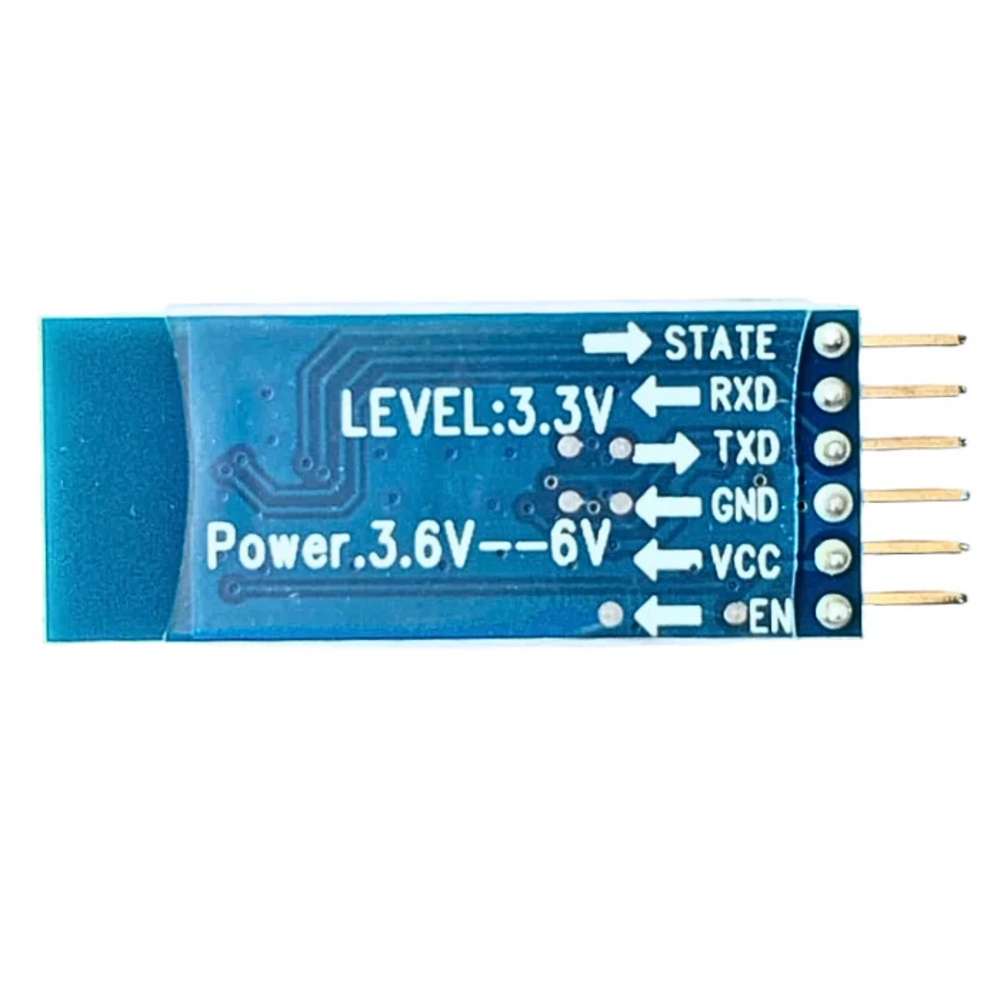

HC-05 Bluetooth Module - Image 2

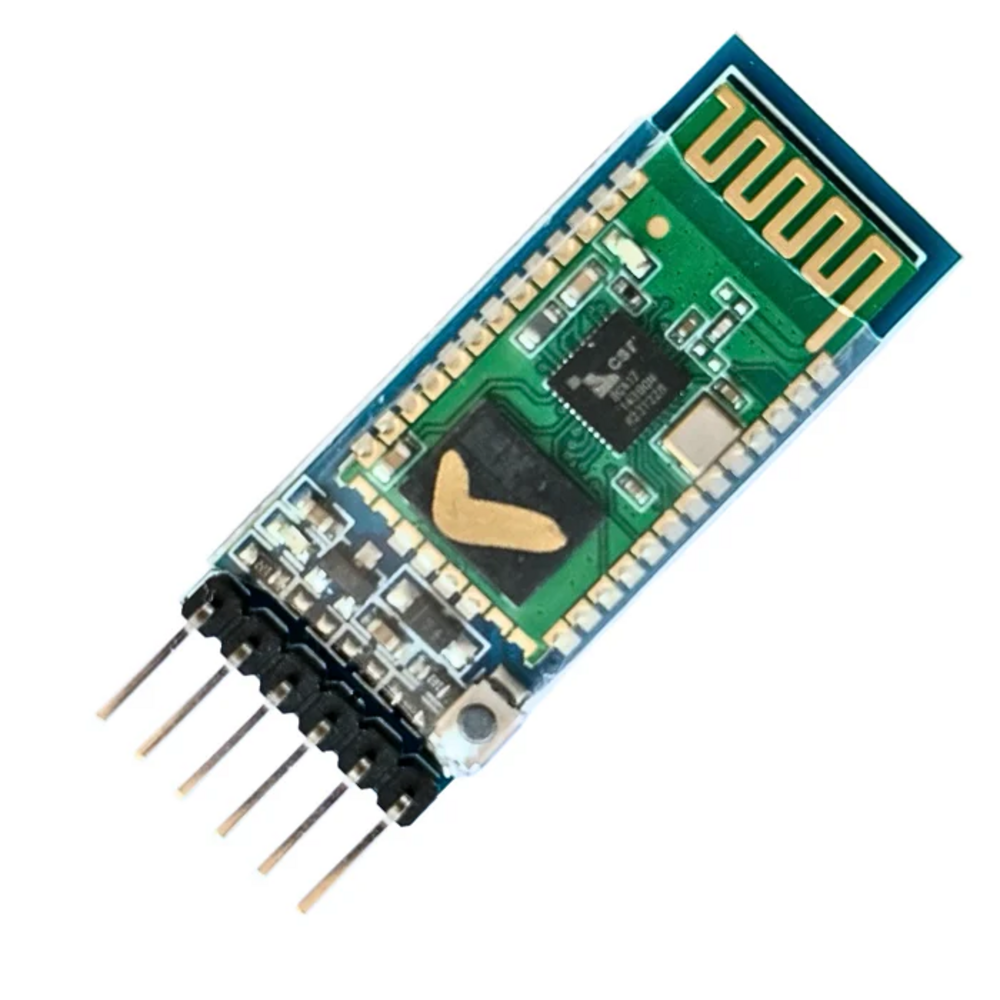

HC-05 Bluetooth Module - Image 3

HC-05 Bluetooth Module

Category:

Original price was: ₹349.00.Current price is: ₹225.00.

  • Provide seamless wireless communication in various applications like GPS navigation systems, water meter readings, and electricity gas meter readings.
  • This Bluetooth module allows you to easily switch between Master and Slave modes using AT Commands.
  • Connect effortlessly with a wide range of devices such as Arduino, phones, laptops, and microcontrollers for a competitive price.
  • The module uses USART for communication, making it compatible with microcontrollers supporting USART.
  • You can easily configure the module’s settings using the command mode, giving you control over your wireless connections.
  • Perfect for connecting computers, mobile phones, and microcontrollers for data exchange and DIY, IoT, and Robotics Projects
In Stock

Description

HC-05 Bluetooth Module



Whether you’re an electronics enthusiast, a DIY hobbyist, or a professional looking for competitive pricing, this module is designed to meet your requirements. The HC05 Bluetooth Module lets you switch between Master and Slave modes with ease using AT Commands, and it comes pre-configured in Slave Mode.

Its compatibility with devices such as phones, laptops, and microcontrollers ensures hassle-free connectivity. With a USART interface, this HC 05 Bluetooth module is a perfect fit for microcontrollers supporting USART communication. Plus, you can configure its settings effortlessly using the command mode.

Ideal for DIY projects and data exchange, this Arduino Bluetooth module provides LED feedback for seamless operation, giving you the best bang for your buck.

The HC-05 Bluetooth Module with Baseplate is a slave-only device.  This means that it can connect to most phones and computers with Bluetooth but it cannot connect to another slave-only device such as keyboards and other HC-06 modules. To connect with other slave devices a master module would be necessary such as the HC-05 wireless communication module, which can do both master and slave.

Key Features:

  • Working current: matching for 30 mA, matching the communication for 8 mA.
  • With the computer and Bluetooth adapter, PDA, and seamless connection equipment.
  • Use the CSR mainstream Bluetooth chip and Bluetooth V2.0 protocol standards.
  • With the Potter default rate of 9600, the user can be set up.
  • Bluetooth protocol: Bluetooth Specification v2.0+EDR
  • Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps.
  • Security: Authentication and encryption.
  • Profiles: Bluetooth serial port.

Pin Diagram:

HC-05 Bluetooth Module Pin Diagram
