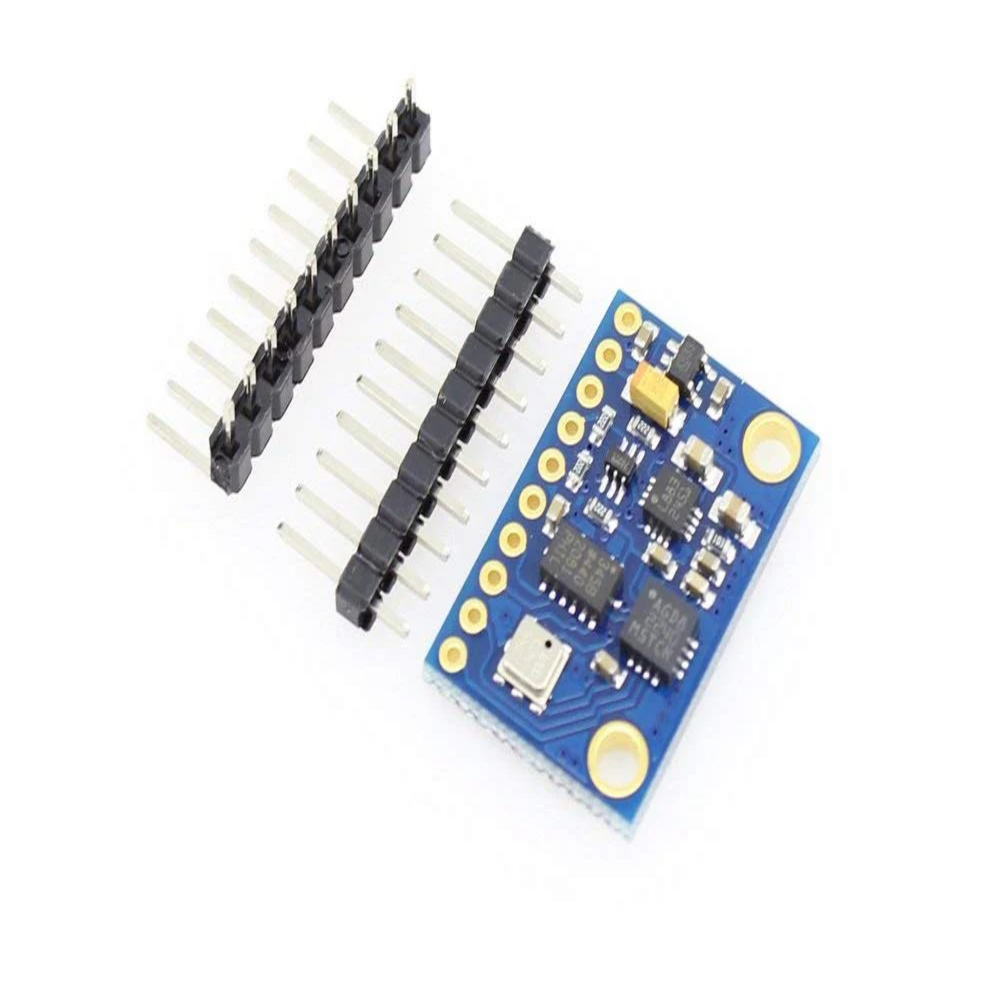

GY801 9-Axis Magnetic Acceleration Gyroscope Module

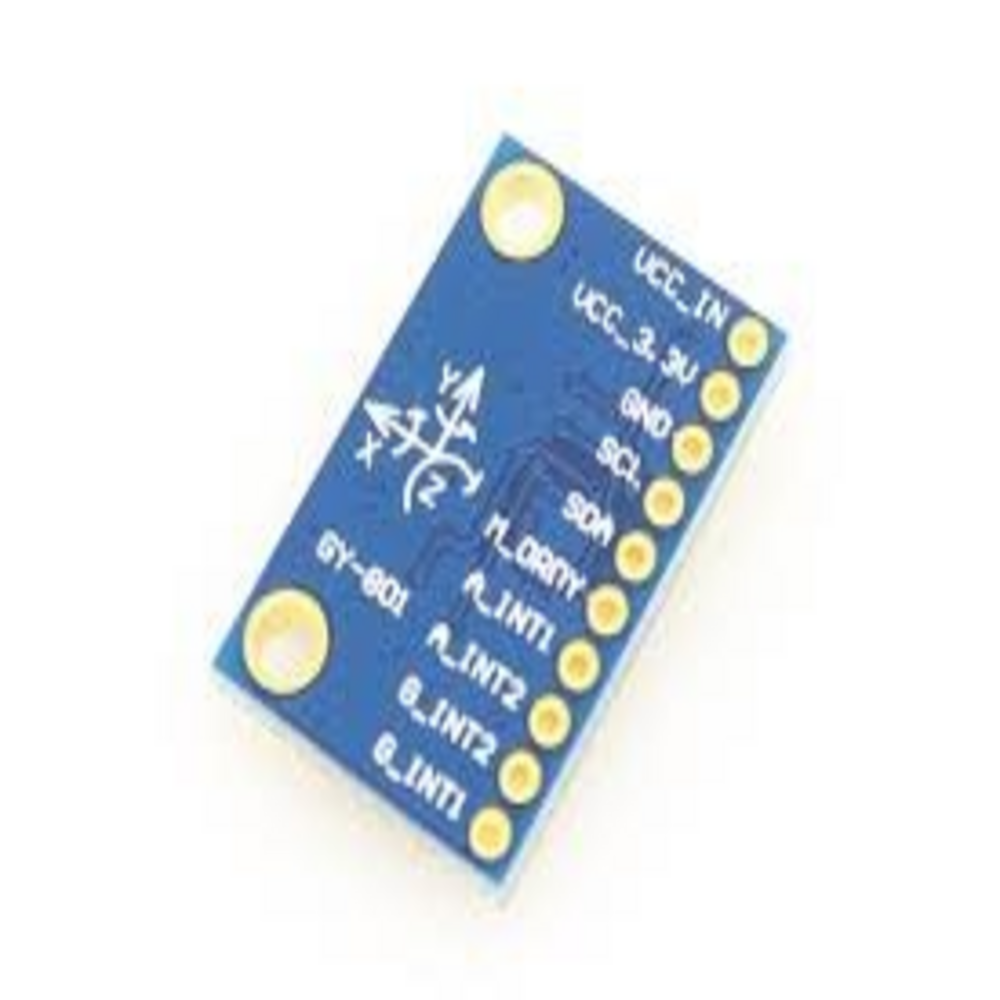

GY801 9-Axis Magnetic Acceleration Gyroscope Module - Image 2
GY801 9-Axis Magnetic Acceleration Gyroscope Module - Image 3

GY801 9-Axis Magnetic Acceleration Gyroscope Module

Category:

Original price was: ₹2,499.00.Current price is: ₹2,017.00.

  • Nine-Axis Module (three-axis gyroscope + triaxial accelerometer + 3-axis magnetic field + pressure).
  • Communication:  IIC communication protocol (fully compatible with 3-5 V system)
  • It can measure acceleration, angular velocity, and the Earth’s magnetic field in 3 dimensions
  • I2C interface

Description

GY801 9-Axis Magnetic Acceleration Gyroscope Module

The GY801 module is a 9-axis motion tracking device that includes a 3-axis accelerometer, a 3-axis gyroscope, and a 3-axis magnetometer (compass). It can measure acceleration, angular velocity, and the Earth’s magnetic field in 3 dimensions. The module is often used in applications such as orientation sensing, movement detection, and compass navigation. The GY801 module likely contains the necessary sensors and additional circuitry for interfacing with a microcontroller or other device.

The board consists of an L3G4200D 3-axis gyroscope, an ADXL345 3-axis accelerometer, an MC5883L 3-axis magnetometer, and a BMP085 barometer–thermometer. All of the sensors are accessible via an I2C interface.
