Flat 1034 Mobile Phone Vibrator Motor

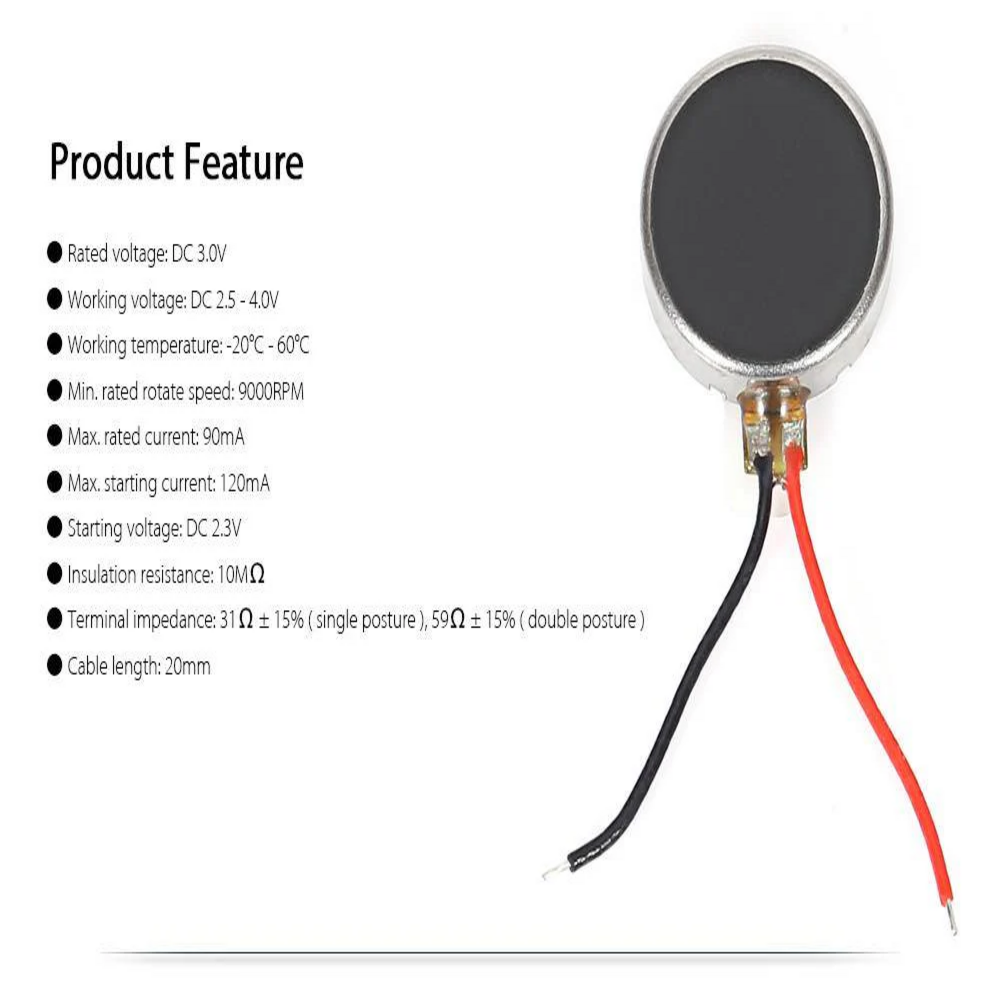

Flat 1034 Mobile Phone Vibrator Motor - Image 2

Flat 1034 Mobile Phone Vibrator Motor

Category:

Original price was: ₹49.00.Current price is: ₹30.00.

  1. Voltage Range: DC 2.5-4V.
  2. Motor Diameter: 10 mm.
  3. Motor Thickness: 3.4 mm.
  4. Min. Rated Speed: 9000RPM
  5. Max. Rated Current: 90mA

Description

his Flat 1034 Mobile Phone Vibrator Motor is a shaftless vibration motor that is fully-enclosed with no exposed moving parts. Its small size (10 mm diameter, 3.4 mm height) and shaftless design mean you can mount it on a PCB or even place it in a pocket to add quiet, haptic feedback to your project.

The motor has a 3M adhesive backing on it for easy mounting and 1.5″ leads for making quick connections. Polarity is not important; the motor can run CW or CCW.

This tiny, button-type, vibrating motor shakes with a vibration amplitude of 0.75g and draws approximately 60 mA when 3 V is applied to its leads.
