DS1302 Real Time Clock Module (with Battery)

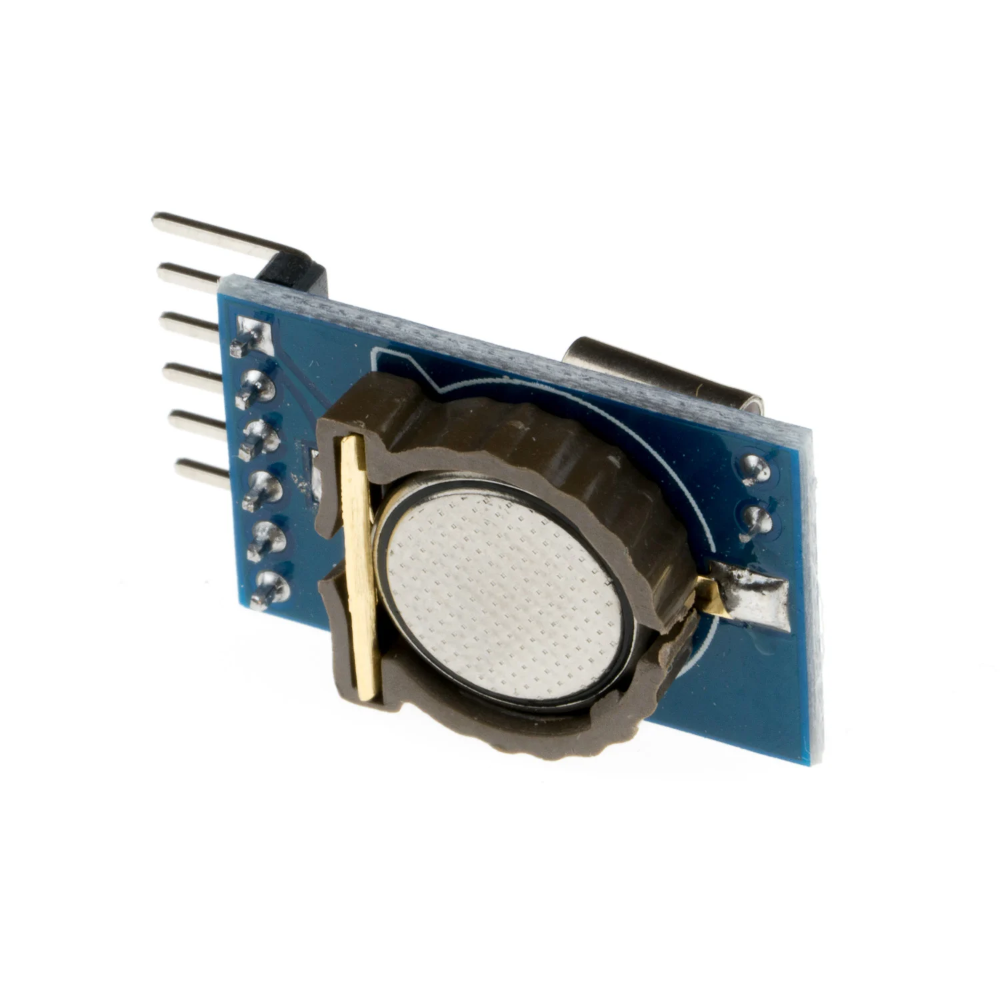

DS1302 Real Time Clock Module (with Battery) - Image 2

DS1302 Real Time Clock Module (with Battery)

Categories: ,

Original price was: ₹109.00.Current price is: ₹67.00.

  1. Crystal 32.768KHz, matching capacitance 6pF
  2. DS1302 8-pin SMD homemade chips
  3. Seconds, Minutes, Hours, Day of Month, Day of Week, and Year
  4. Operating temperature: 0 degree — 70 degree

Description

The DS1302 real-time clock (RTC) works very much like a watch. The RTC module accurately keeps time with a precise oscillator and is maintained with a small battery . It is used to give an accurate date and time in many applications. The RTC module is ideal in any time-critical applications like attendance systems, digital cameras, automated sprinkler systems, or a time and calendar display.

Pin configuration :

VCC2 → +5 V/3.3V
GND → GND
CLK → P02
DAT → P01
RST → P00
