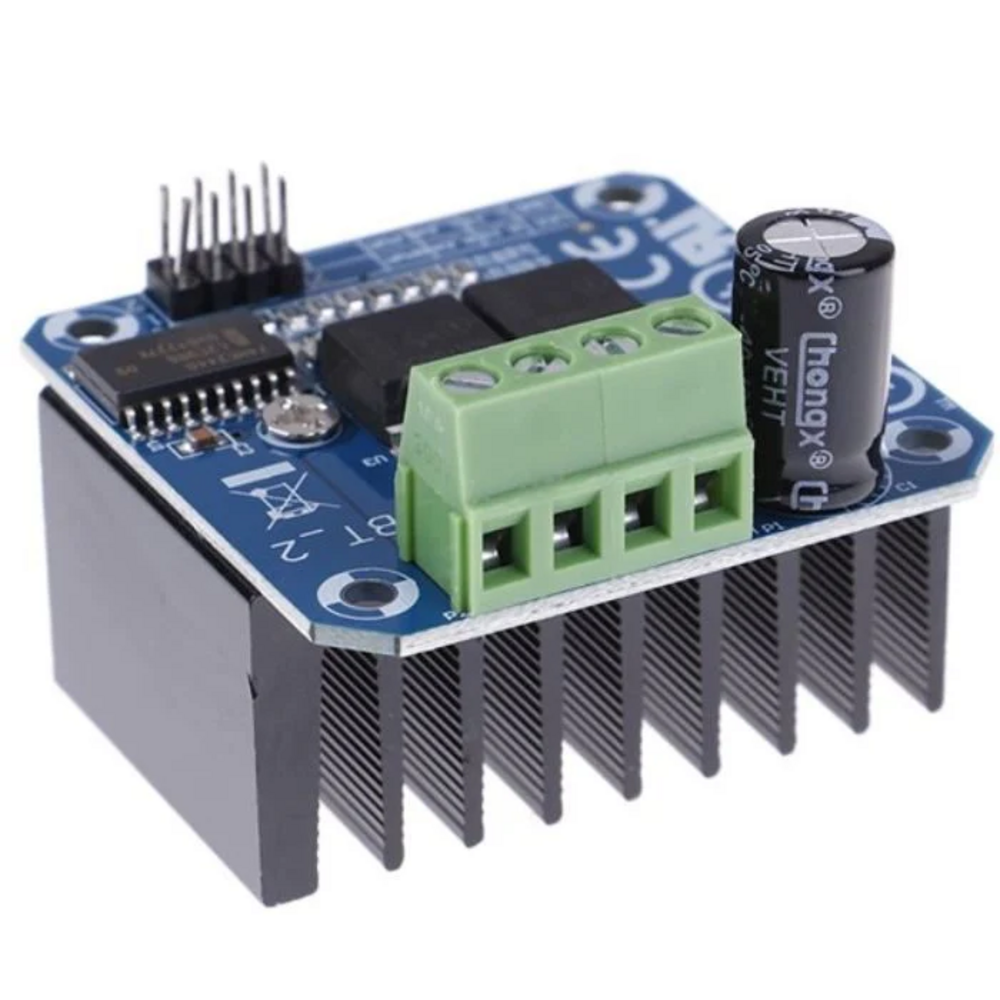

BTS7960B 43A H-Bridge Motor Driver

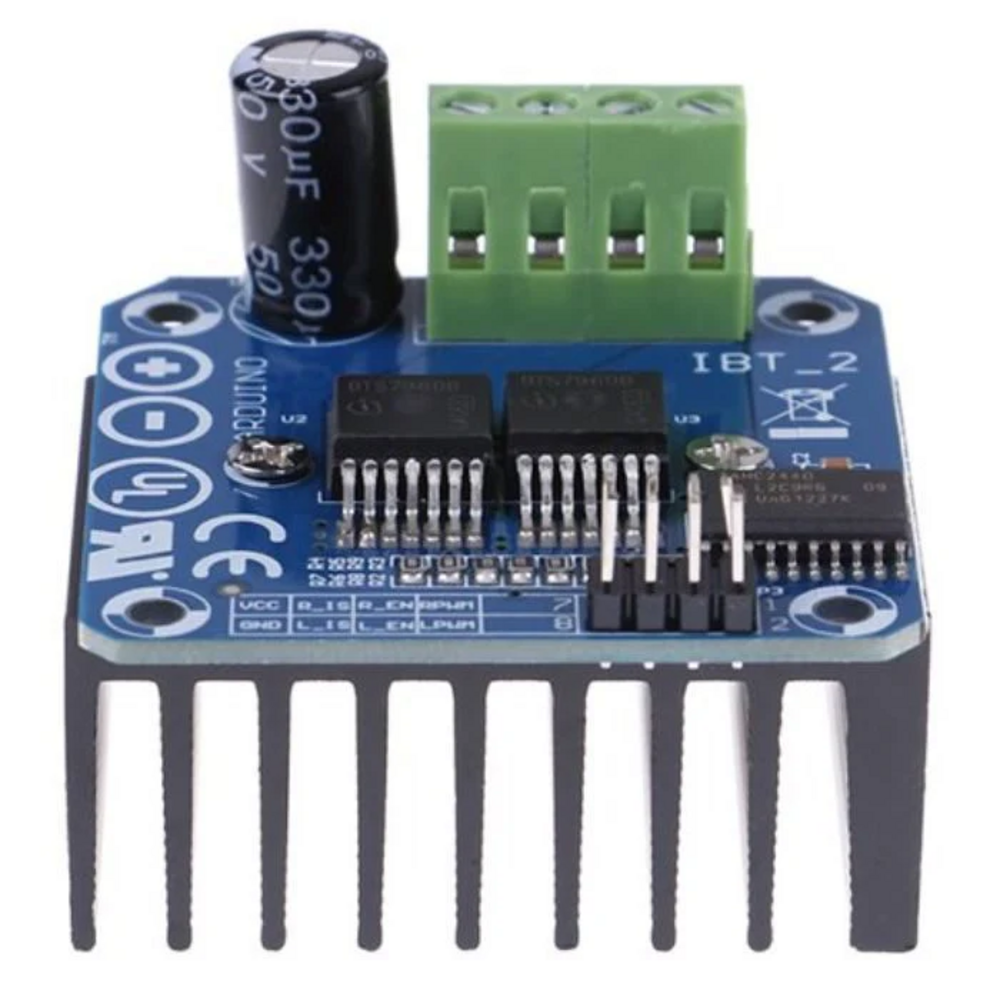

BTS7960B 43A H-Bridge Motor Driver - Image 2
BTS7960B 43A H-Bridge Motor Driver - Image 3

BTS7960B 43A H-Bridge Motor Driver

Category:

Original price was: ₹399.00.Current price is: ₹252.00.

  • This is BTS7960B 43A H-Bridge Motor Driver
  • Double BTS7960 large current (43 A) H bridge driver
  • The supply voltage: 5.5V to 27V
  • This has Overtemperature shut down with latch behavior
  • This has Overvoltage lockout and Undervoltage shut down
  • The Driver circuit with logic level inputs.
  • This has an onboard 5V power indicator
  • This has a driver circuit with logic-level inputs.
In Stock

This product has been added to 73 people'scarts.

Description

BTS7960B 43A H-Bridge Motor Driver

The Double BTS7960 43A H-Bridge High-Power Motor Driver Module is a fully integrated high current H bridge designed for motor drive applications that use the BTS7960 high current half bridge.
The NovalithICTM family includes the BTS7960. This package contains one p-channel high-side MOSFET and one n-channel low side MOSFET, as well as an integrated driver IC. The p-channel high-side switch eliminates the need for a charge pump, reducing EMI.
The integrated driver IC simplifies interfacing to a microcontroller by providing logic level inputs, diagnosis with current sense, slew rate adjustment, dead time generation, and protection against overtemperature, overvoltage, undervoltage, overcurrent, and short circuit.

Features

• Path resistance of type. 16 m? @ 25 °C
• Low quiescent current of typ. 7 µA @ 25 °C
• PWM capability of up to 25 kHz combined with active freewheeling
• Switched mode current limitation for reduced power dissipation in overcurrent
• Current limitation level of 43 A typ.
• Status flag diagnosis with current sense capability
• Overtemperature shut down with latch behavior
• Overvoltage lockout
• Undervoltage shut down
• Driver circuit with logic level inputs
• Adjustable slew rates for optimized EMI
