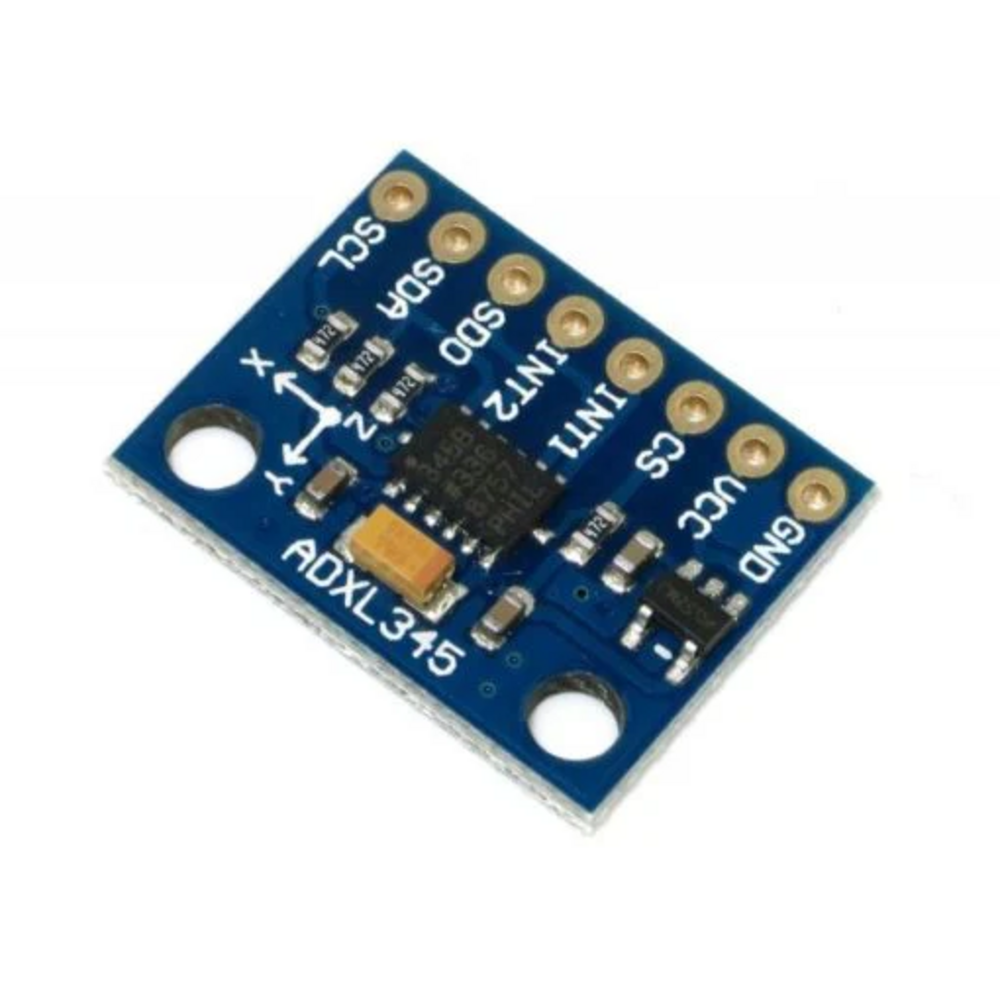

ADXL345 Accelerometer Module

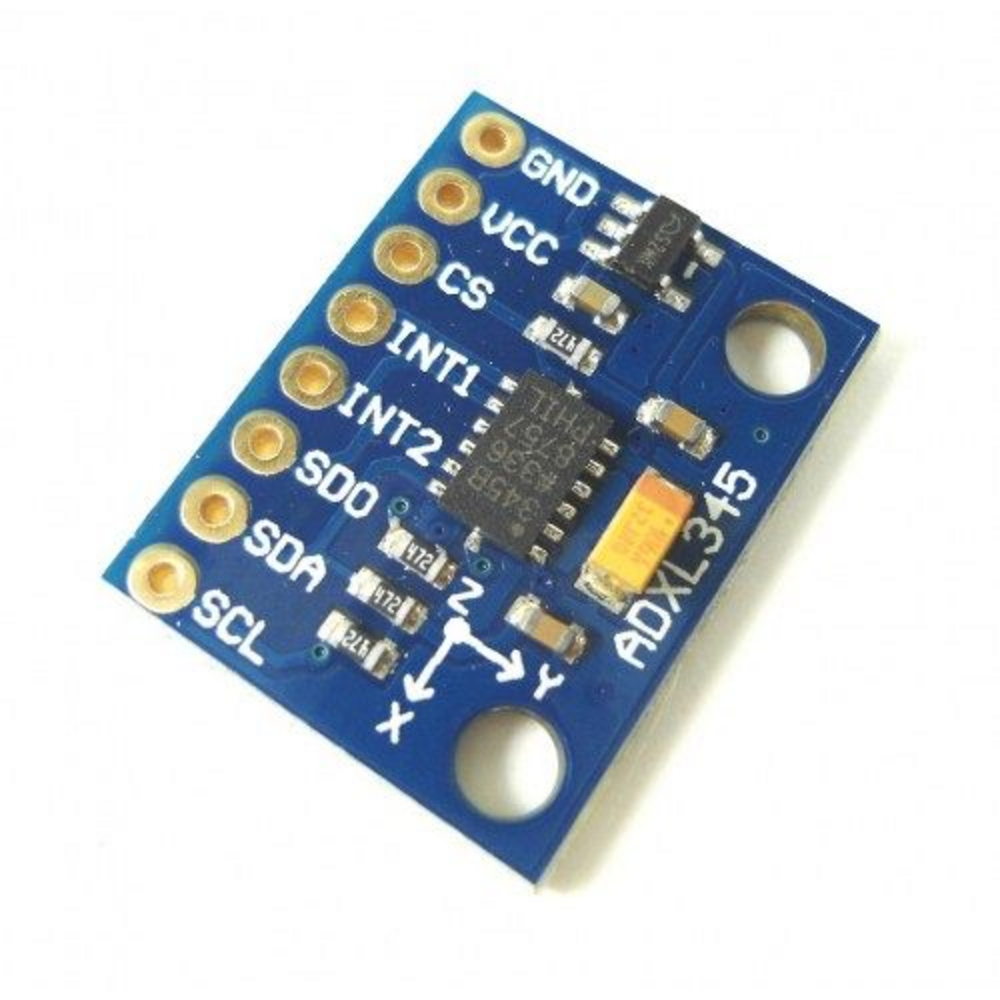

ADXL345 Accelerometer Module - Image 2
ADXL345 Accelerometer Module - Image 3

ADXL345 Accelerometer Module

Category:

Original price was: ₹189.00.Current price is: ₹137.00.

  • 3V-6V DC Supply Voltage
  • Onboard LDO Voltage regulator
  • Built in Voltage level convertor (MOSFET based)
  • Can be interface with 3V3 or 5V Microcontroller.
  • All necessary Components are populated.
  • Ultra Low Power: 40uA in measurement mode, 0.1uA in standby@ 2.5V
  • Tap/Double Tap Detection
  • Free-Fall Detection
  • SPI and I2C interfaces

Description

ADXL345 Accelerometer Module

ADXL345 is a Breakout board for the Analog Device’s ADXL345 triple-axis accelerometer. The module is populated with MOSFET-based Voltage level conversion circuitry to enable you to interface with different types of microcontrollers (3V3 & 5V). Components like decoupling capacitors, filter capacitors, pull-up resistors, and LED are also populated on board.
This is ideal for motion and acceleration sensing applications. It is a low-power, 3-axis accelerometer module with I2C and SPI interfaces to communicate with controllers like Arduino Raspberry Pi, PIC, etc.
It also has user-selectable sensitivity and 10-13bit of resolution. This Digital Accelerometer has a voltage regulator on board and can be connected to 5V and 3.3V powered controllers. Its high-resolution 4mg/LSB also enables it to measure less than 1° change in the object orientation.
The ADXL345 features 4 sensitivity ranges from +/- 2G to +/- 16G. And it supports output data rates ranging from 10Hz to 3200Hz such as the Arduino.
