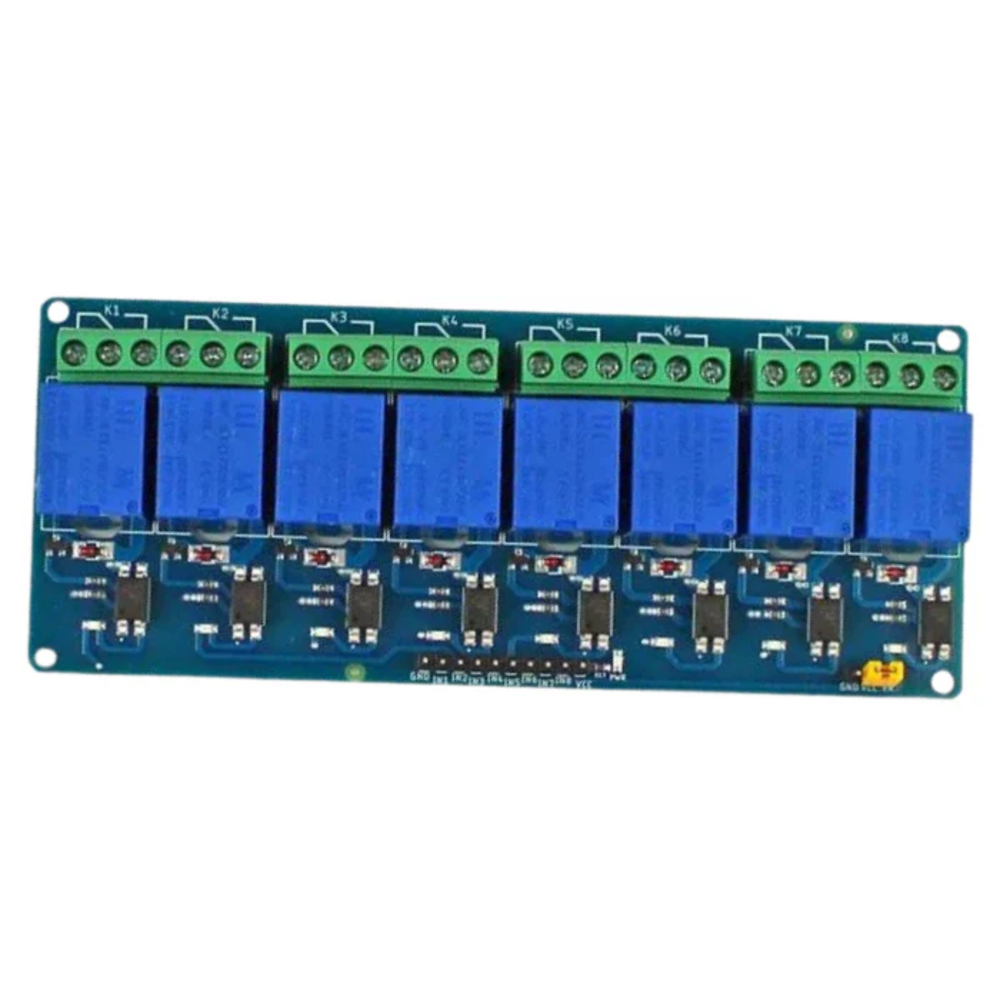

8 Channel Isolated 5V 10A Relay Module opto coupler For Arduino PIC AVR DSP ARM
8 Channel Isolated 5V 10A Relay Module opto coupler For Arduino PIC AVR DSP ARM - Image 2
8 Channel Isolated 5V 10A Relay Module opto coupler For Arduino PIC AVR DSP ARM - Image 3

8 Channel Isolated 5V 10A Relay Module opto coupler For Arduino PIC AVR DSP ARM

Categories: ,

Original price was: ₹299.00.Current price is: ₹237.00.

  1. Channel: 8 channel
  2. Relay Operating Voltage: 5V
  3. One normally closed contact and one normally open contact
  4. Triode drive, increasing relay coil
  5. High impedance controller pin
  6. Pull-down circuit for the avoidance of malfunction
  7. Power supply indicator and Control indicator lamp
  8. Power supply and relay instructions, lit, the disconnect is off;
In Stock

Description

It is an 8 Channel Isolated 5V 10A Relay Module opto coupler, which can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, PLC, etc. It is also able to control various appliances and other types of equipment with a large current. Relay output maximum contact is AC250V 10A and DC30V 10A.

One can connect a microcontroller with standard interface directly to it. Red working status indicator lights are conducive to the safe use. The 8 Channel Isolated 5V 10A Relay Module opto coupler has a wide range of applications such as all MCU control, industrial sector, PLC control, smart home control.

So, ready to get switching on your Raspberry Pi?! This neat relay module features 8 x 12V relays rated at 10A/250V each. It is designed to switch up to 4 high currents (10A) or high voltage (250V) loads with the help of microcontroller!

Each relay can individually switch to on/off state. It only requires a voltage of approx 1.0V to switch the inputs on but can handle input voltages up to 12V. This makes it ideal for 3.3V, 5V & 12V devices.
