5V 2 Channel Relay Module

Description

Product Description

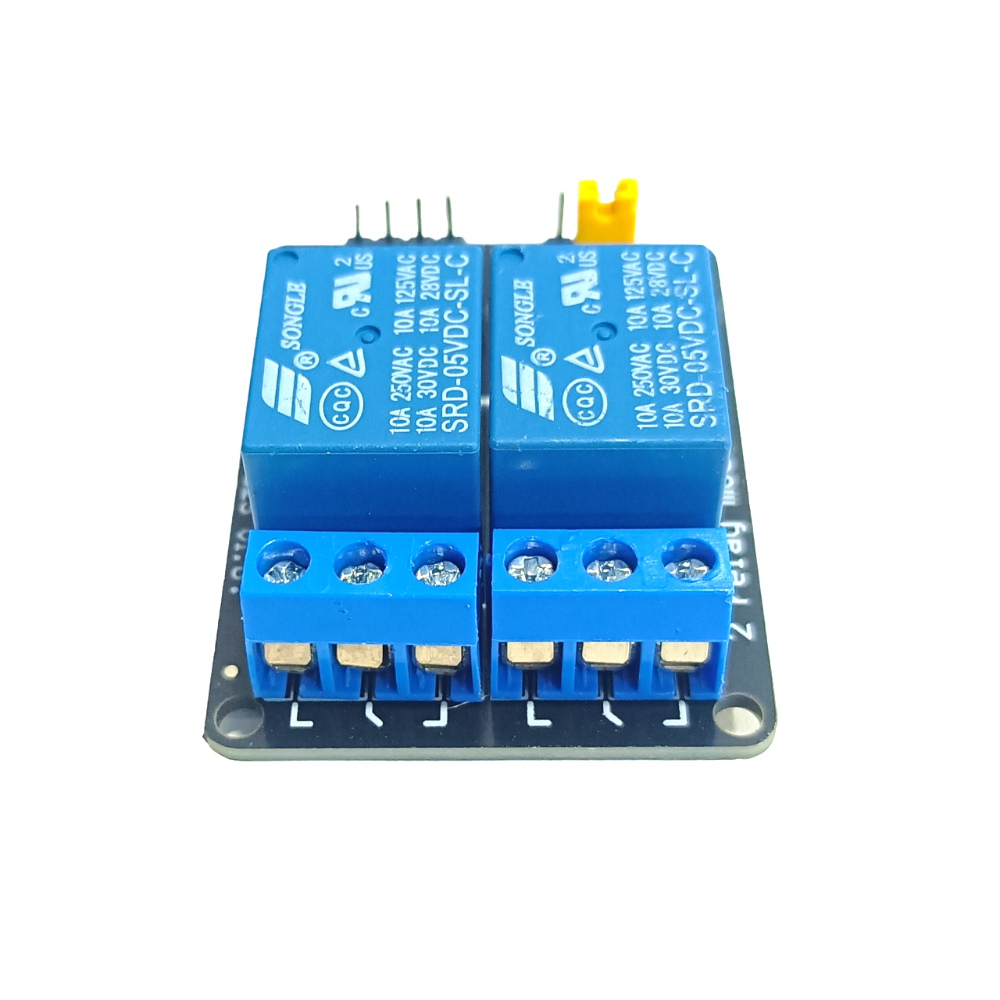

5V 2 Channel Relay Module

• The active low relay board features 5V relays that can be switched on and off via an opto-isolated digital input, ensuring electrical isolation between the control circuit and the relay mechanism. To activate the relays, connect a microcontroller to the output pin, which requires a minimum input voltage of 1V to turn the relays ON.

• These relay boards are versatile and support both 5V and 3.3V devices, making them suitable for a variety of applications, including Raspberry Pi, Arduino, and PIC microcontrollers. Their compatibility and ease of integration make them an excellent choice for numerous electronic projects and automation tasks.

Features:

• 2 Channels
• Maximum switching voltage: 250VAC / 30VDC
• Maximum switching current: 10A
• Each relay features an LED indicator.
• Dimensions: 51 x 39 x 18mm (Length x Width x Height)
