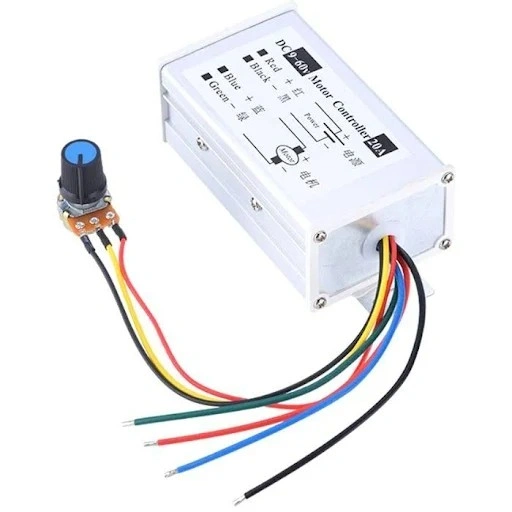

20A PWM DC Motor Speed Regulator Module (9V, 12V, 24V, 36V, 48V, 60V)

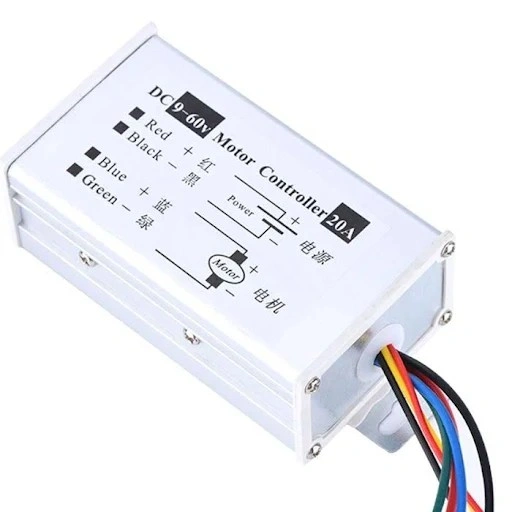

20A PWM DC Motor Speed Regulator Module (9V, 12V, 24V, 36V, 48V, 60V) - Image 2
20A PWM DC Motor Speed Regulator Module (9V, 12V, 24V, 36V, 48V, 60V) - Image 3

20A PWM DC Motor Speed Regulator Module (9V, 12V, 24V, 36V, 48V, 60V)

Category:

Original price was: ₹349.00.Current price is: ₹297.00.

  1. Adjustable speed range: 0%-100%.
  2. Speed adjustment way: Potentiometer.
  3. Output voltage: Linear under load.
  4. Speed control type: Basins.
  5. Output voltage: Load Linear
  6. Type: Adjusting flow
  7. The motor running condition adjustment: Forward  / Stop / Reverse
In Stock

This product has been added to 1 people'scarts.

Description

The 20A PWM DC Motor Speed Regulator Module (9V, 12V, 24V, 36V, 48V, 60V)  is suitable for the DC brushed motor (or DC load) within 20A. It comes with the metal shell and connective label, which makes it very easy to install and use.

Connection mode:
Red Line: Power +       Black Line: Power –
Blue Line: Motor+        Green Line: Motor –
