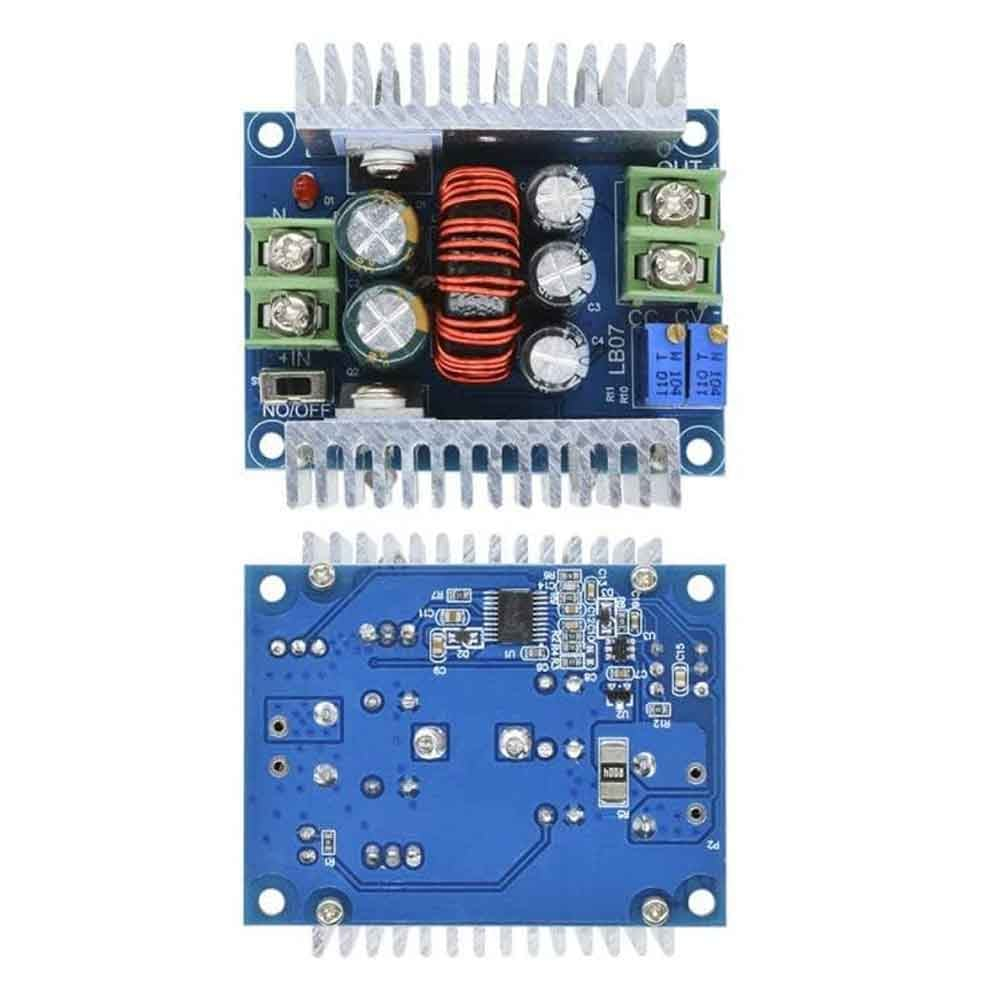

200W 20A DC-DC Buck Converter Step Down Module
200W 20A DC-DC Buck Converter Step Down Module - Image 2

200W 20A DC-DC Buck Converter Step Down Module

Categories: ,

Original price was: ₹449.00.Current price is: ₹367.00.

  1. High Power DC-DC Step Down Module
  2. Input Voltage: 6-40V DC
  3. Output Voltage: 1.2-36V DC
  4. Max Output Current: 20A
  5. Efficiency: 97%

Description

The 200W 20A DC-DC Buck Converter Step Down Module Constant Current LED Driver Module can be used to get adjustable output voltage ranges from 1.2V to 36V. The module provides a wide range of current output up to 4A. With the heat sink mounted, it can easily manage to run high-power applications continuously (provided that for continuous high-power output, you need to use a cooling fan on the heat sink).

The 200W 20A DC-DC Buck Converter module is made from a dedicated benchmark IC and high-precision current sensing resistor, proving a more stable constant current (when 20°C to 100°C constant current 15A, temperature drift less than 1%), and therefore it is particularly most suitable for LED driver applications. The output current of the module can be raised up to 20 A (for continuous use it is recommended up to 3A with an additional cooling fan).

Applications:

1. High-power LED driver.
2. Lithium battery(or lead accumulator) charge.
3. Vehicle-mounted power supply.
4. Low voltage system power supply.
5. 6V, 12V, 14V, 24V battery charge.
6. On-board laptop power supply.
7. regulated power supply.
8.Low voltage power supply system.
