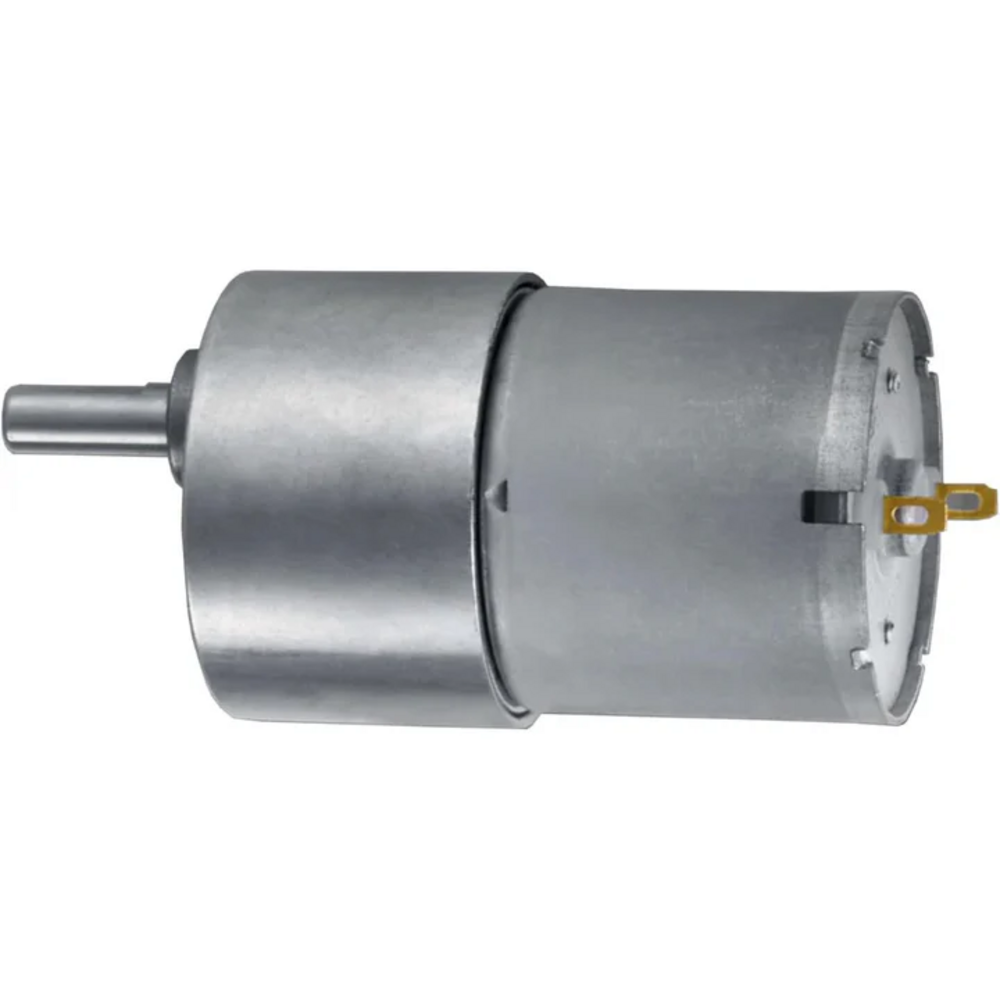

12V 60 RPM Side Shaft High Torque Motor (Original & new)

This 12V 60 RPM Side Shaft High Torque Motor is designed for applications requiring low-speed, high-torque performance. The side shaft configuration is ideal for mounting in tight spaces while delivering powerful output. Its robust construction ensures reliability and longevity in various applications, from robotics to industrial systems.

Key Features:

High Torque: Capable of handling heavy loads with ease.

Low Speed: 60 RPM provides precise control in motion.

Side Shaft Design: Ideal for compact installations and easy integration.

Durable Construction: Built for continuous and demanding operations

Applications:

Robotics: Ideal for driving heavy-duty robotic mechanisms.

Automation Systems: Suitable for slow, controlled movements in machinery.

DIY Projects: Great for hobbyists requiring powerful motor control.

Industrial Equipment: Used in systems where high torque is crucial for operation.

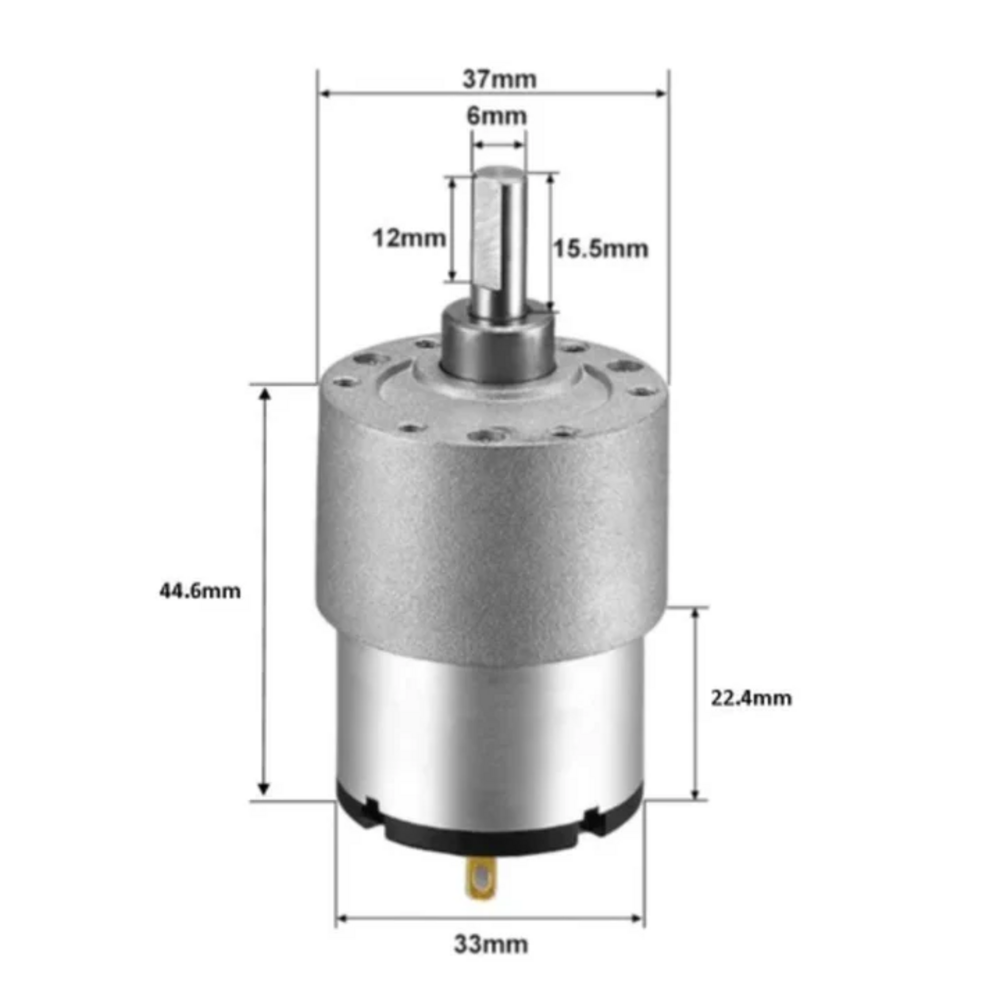

Technical Details

• Operating Voltage: 12V DC
• Motor body length: 75mm
• Motor Body Diameter: 35mm
• Material: Cast Iron
• Shaft diameter: 6mm
• Voltage – 3v to 12v
• RPM – 60 (at 12v)
• Nominal Voltage – 12v
• No- Load Current – 20mA
• Full Load Current – 800mA
• Full (Stall) Load Torque – 14 kgcm

Integration with Arduino

Sample Code

	//https://kitsguru.myshopify.com/products/dc-geared-motor-10rpm
	int enA = 10;
	int in1 = 9;
	int in2 = 8;
	// motor two
	int enB = 5;
	int in3 = 7;
	int in4 = 6;
	void setup()
	{
	// set all the motor control pins to outputs
	pinMode(enA, OUTPUT);
	pinMode(enB, OUTPUT);
	pinMode(in1, OUTPUT);
	pinMode(in2, OUTPUT);
	pinMode(in3, OUTPUT);
	pinMode(in4, OUTPUT);
	}
	void demoOne()
	{
	// this function will run the motors in both directions at a fixed speed
	// turn on motor A
	digitalWrite(in1, HIGH);
	digitalWrite(in2, LOW);
	analogWrite(enA, 200);// set speed to 200 out of possible range 0~255
	digitalWrite(in3, HIGH);// turn on motor B
	digitalWrite(in4, LOW);
	analogWrite(enB, 200); // set speed to 200 out of possible range 0~255
	delay(2000);
	digitalWrite(in1, LOW);// now change motor directions
	digitalWrite(in2, HIGH);
	digitalWrite(in3, LOW);
	digitalWrite(in4, HIGH);
	delay(2000);
	// now turn off motors
	digitalWrite(in1, LOW);
	digitalWrite(in2, LOW);
	digitalWrite(in3, LOW);
	digitalWrite(in4, LOW);
	}
	void demoTwo()
	{
	// this function will run the motors across the range of possible speeds
	// note that maximum speed is determined by the motor itself and the operating voltage
	// the PWM values sent by analogWrite() are fractions of the maximum speed possible
	// by your hardware
	// turn on motors
	digitalWrite(in1, LOW);
	digitalWrite(in2, HIGH);
	digitalWrite(in3, LOW);
	digitalWrite(in4, HIGH);
	// accelerate from zero to maximum speed
	for (int i = 0; i < 256; i++)
	{
	analogWrite(enA, i);
	analogWrite(enB, i);
	deLay(20);
	}
	// decelerate from maximum speed to zero
	for (int i = 255; i >= 0; –i)
	{
	analogWrite(enA, i);
	analogWrite(enB, i);
	delay(20);
	}
	// now turn off motors
	digitalWrite(in1, LOW);
	digitalWrite(in2, LOW);
	digitalWrite(in3, LOW);
	digitalWrite(in4, LOW);
	}
	void loop()
	{
	demoOne();
	delay(1000);
	demoTwo();
	Delay(1000);
	}

view rawKG149.INO hosted with ❤ by GitHub

Package Includes

• 1 x 12V 60 RPM Side Shaft High Torque Motor (Original & new)
